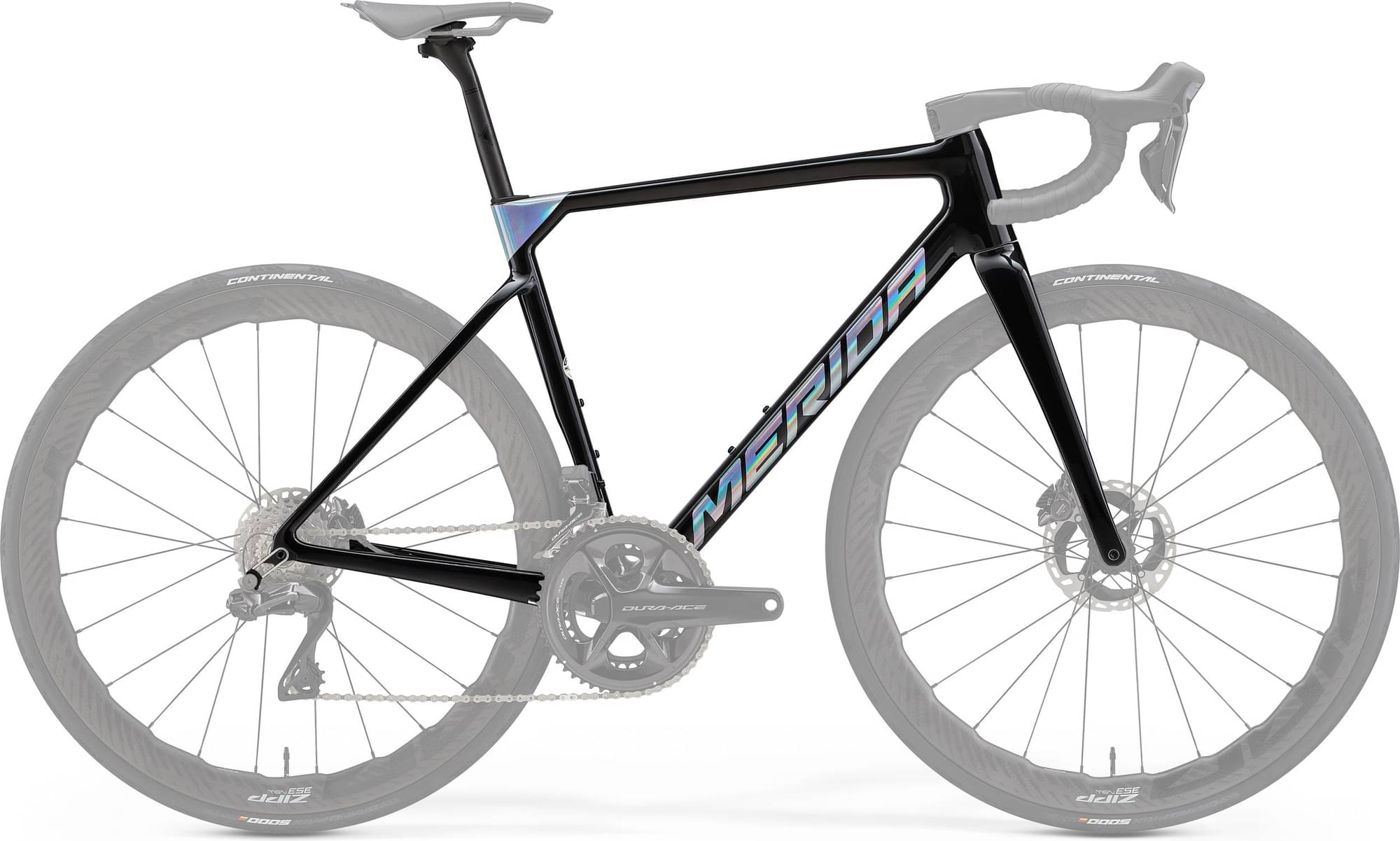

Merida SCULTURA TEAM FRAME-KIT 2022
2022 Road
Estimate price |
3,189$
Bike details
Overview
Key information split into simple groups.
Frame summary
-
-
Frame Carbon -
Wheels 700c -
Suspension Rigid
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SCULTURA CF5 V, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5
Suspension Fork
SCULTURA CF5 Disc, material: carbon, 700x30C max. wheelsize
Drivetrain
Bottom Bracket
BB86/BB92, 86mm, press-fit
Cockpit
Headset
MERIDA TEAM SL
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.37 mm | 1.38 mm | 1.39 mm | 1.41 mm | 1.43 mm | 1.45 mm |
| Bottom Bracket Height | 266 mm | 266 mm | 270 mm | 270 mm | 270 mm | 270 mm |
| Front Center | 587 mm | 584 mm | 590 mm | 591 mm | 601 mm | 611 mm |
| Rake | 45 mm | 46 mm | 44 mm | 45 mm | 46 mm | 45 mm |
| Trail | 71 mm | 61 mm | 60 mm | 53 mm | 52 mm | 50 mm |
| Stack | 518 mm | 530 mm | 543 mm | 558 mm | 572 mm | 594 mm |
| Reach | 378 mm | 384 mm | 391 mm | 396 mm | 401 mm | 410 mm |
| Top Tube Length | 521 mm | 536 mm | 546 mm | 561 mm | 576 mm | 591 mm |
| Seat Tube Angle | 74.5 ° | 74 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 435 mm | 458 mm | 481 mm | 501 mm | 521 mm | 550 mm |
| Head Tube Angle | 70.5 ° | 72 ° | 72.5 ° | 73.5 ° | 73.5 ° | 74 ° |
| Head Tube Length | 105 mm | 112 mm | 128 mm | 140 mm | 155 mm | 176 mm |
| Chainstay Length | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm | 409 mm |
| Wheelbase | 986 mm | 983 mm | 990 mm | 991 mm | 1001 mm | 1011 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 66 mm | 66 mm | 66 mm | 66 mm |
| Standover Height | 722 mm | 746 mm | 766 mm | 783 mm | 801 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview
SCULTURA TEAM FRAME-KIT is part of the Merida Scultura model. Merida released 214 frames variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Race frames average price
According to our math, the average price for a trustworthy Race frame is 2445$. However, you could also get a good Race frame even if you pay a lower amount than the average price. In short, before purchasing your ideal frame do some research about its components, and also check for reviews online.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 2865$. Doing a quick comparison, we notice that SCULTURA TEAM FRAME-KIT price is 17.18% more expensive than the average cost of a Race frame.
Overview of components
Fork material
SCULTURA TEAM FRAME-KIT has a carbon fork, so, it won’t add up to much weight to your frame. However, the price you have to pay for a carbon fork is considerably higher.
