Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Apex 1, FSA -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SILEX LITE
Suspension Fork
Full carbon tapered fork with 12mm through axle
Drivetrain
Rear Derailleur
SRAM Apex 1
Shift Levers
SRAM Apex, 11 speed
Cassette
Sunrace CSMS8, 11 speed, 11-42 teeth
Crank
FSA Gossamer 44 teeth
Chain
KMC X11-1
Wheels
Front Hub
MERIDA sealed bearing hubs with 12mm through axles
Rear Hub
MERIDA sealed bearing hubs with 12mm through axles
Rims
MERIDA Comp Cross - 22mm profile
Spokes
Black stainless
Tires
Maxxis Gravel 35c semi slick tyre folding tyre with Maxxis silkworm technology and puncture protection
Brakes
Brakes
Tektro Spyre mechanical disc, 160mm rotors
Brake Levers
SRAM Apex BL-APX-A1
Cockpit
Handlebar
MERIDA Expert double butted 6061 aluminium compact drop, oversize clamp
Headset
Big Conoid M2334
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Comp 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.55 mm | 1.54 mm | 1.53 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 608 mm | 615 mm | 641 mm | 663 mm | 684 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 593 mm | 612 mm | 631 mm | 650 | 669 mm |
| Reach | 386 mm | 386 mm | 406 mm | 421 mm | 436 mm |
| Top Tube Length | 554.4 mm | 559.8 mm | 585.2 mm | 605.7 mm | 626.1 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1033 mm | 1040 mm | 1066 mm | 1088 mm | 1109 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 721 mm | 748 mm | 776 mm | 803 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

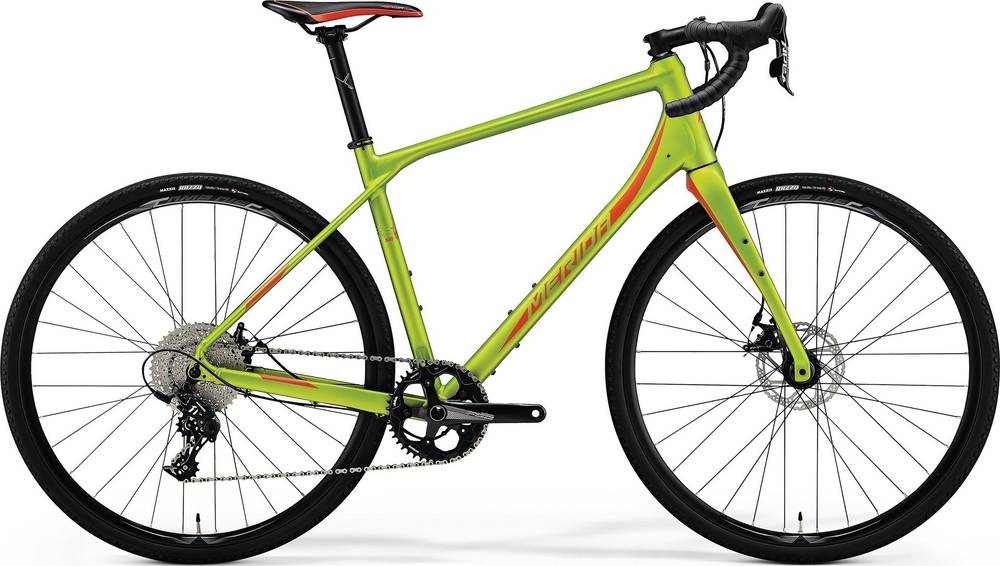

SILEX 300 is part of the Merida Silex model. There are 43 bikes that carry this model name. You can easily view all of the Merida Silex bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
SILEX 300 weighs 9.75 kg (21.5 lbs) and is much heavier than the average. In short, the average Gravel bike weight is 19.93% lower than this one.
Overview of components
Fork material
SILEX 300 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
The wheels on SILEX 300 are the 700c aluminum type. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SILEX 300 is equipped with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
