Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SILEX LITE
Suspension Fork
Full carbon tapered fork with 12mm through axle
Drivetrain
Rear Derailleur
Shimano 105
Front Derailleur
Shimano 105
Shift Levers
Shimano RS505, 22 speed
Cassette
Shimano CS-5800, 11 speed, 11-32 teeth
Crank
FSA Gossamer Pro 48-32 teeth
Chain
KMC X11-1
Wheels
Front Hub
MERIDA sealed bearing hubs with 12mm through axles, centerlock
Rear Hub
MERIDA sealed bearing hubs with 12mm through axles, centerlock
Rims
MERIDA Comp Cross - 22mm profile, disc only
Spokes
Black stainless
Tires
Maxxis Gravel 35c semi slick tyre folding tyre with Maxxis silkworm technology and puncture protection
Brakes
Brakes
Shimano RS505 hydraulic disc brakes with 160mm rotors
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert double butted 6061 aluminium compact drop, oversize clamp
Headset
Big Conoid M2334
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Comp 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.55 mm | 1.54 mm | 1.53 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 608 mm | 615 mm | 641 mm | 663 mm | 684 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 593 mm | 612 mm | 631 mm | 650 | 669 mm |
| Reach | 386 mm | 386 mm | 406 mm | 421 mm | 436 mm |
| Top Tube Length | 554.4 mm | 559.8 mm | 585.2 mm | 605.7 mm | 626.1 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1033 mm | 1040 mm | 1066 mm | 1088 mm | 1109 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 721 mm | 748 mm | 776 mm | 803 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

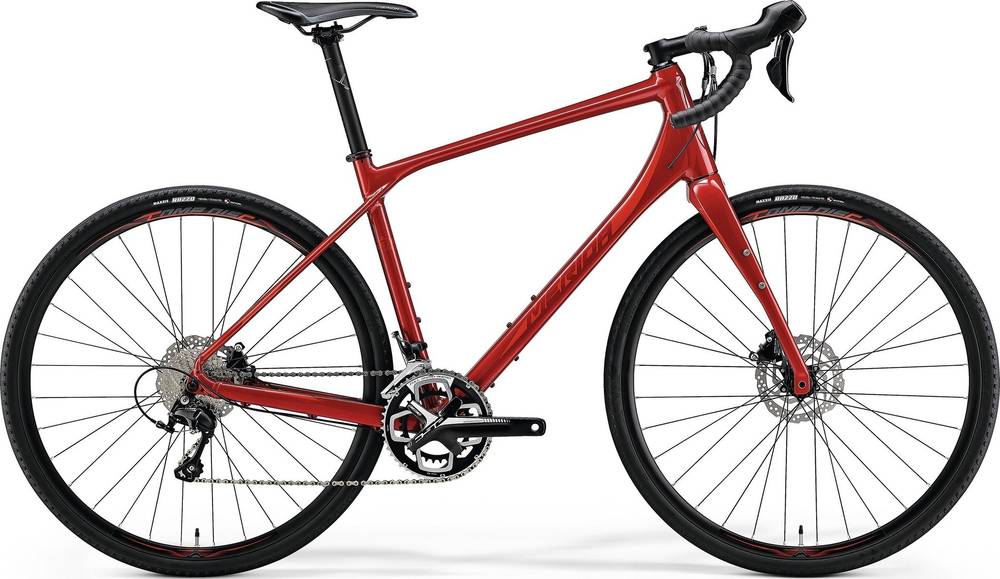

SILEX 400 is part of the Merida Silex model. 43 bikes variations carry this model name so far. Take a sneak peek at all Merida Silex bikes models from 2018, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Gravel bikes
On a deeper look, we notice that the average weight of a Gravel bike is 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Weighing 10.13 kg (22.33 lbs), the SILEX 400 model is much heavier than average. To sum up, it’s 24.6% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the SILEX 400 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The SILEX 400 has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
Merida SILEX 400 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
