Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, FSA -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SILEX LITE
Suspension Fork
MERIDA SILEX CF2
Drivetrain
Rear Derailleur
Shimano 105, GS
Front Derailleur
Shimano 105
Shift Levers
Shimano 105 disc
Cassette
Shimano CS-HG700, 11-34 teeth, 11 speed
Crank
FSA Gossamer Pro, 48-32 teeth
Chain
KMC X11
Wheels
Front Hub
VP CLK170F, 100x12mm width, 32 spoke holes / VP CLK270R, 142x12mm width, 32 spoke holes, centerlock
Rear Hub
VP CLK170F, 100x12mm width, 32 spoke holes / VP CLK270R, 142x12mm width, 32 spoke holes, centerlock
Rims
MERIDA Comp SL, 17mm inner width, 22mm height
Spokes
Black stainless
Tires
Maxxis Razzo, 700x35C, fold, Silkworm
Brakes
Brakes
Shimano 105, Hydraulic disc
Brake Levers
Shimano 105 disc
Cockpit
Handlebar
MERIDA Expert GR
Headset
MERIDA M2331, 2191026683
Seat
Saddle
MERIDA Comp CC
Seatpost
MERIDA Comp CC, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.55 mm | 1.54 mm | 1.53 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 608 mm | 615 mm | 641 mm | 663 mm | 684 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 593 mm | 612 mm | 631 mm | 650 | 669 mm |
| Reach | 386 mm | 386 mm | 406 mm | 421 mm | 436 mm |
| Top Tube Length | 554 mm | 560 mm | 585 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1033 mm | 1040 mm | 1066 mm | 1088 mm | 1109 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 721 mm | 748 mm | 776 mm | 803 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

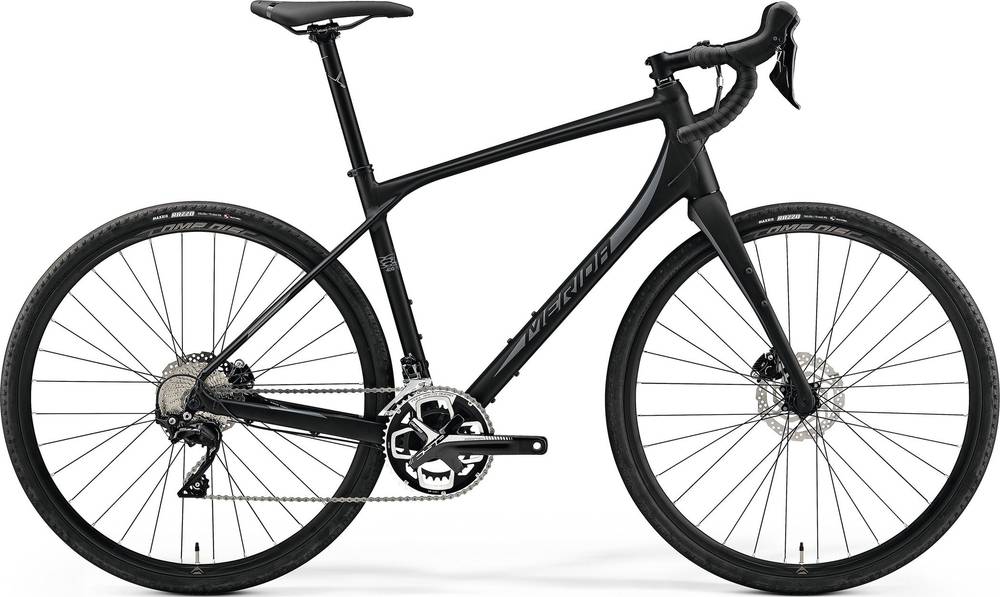

Model Overview
SILEX 400 is a Merida Silex model. 43 bikes variations carry this model name so far. You can easily view all of the Merida Silex bikes models from 2019, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Gravel bikes
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Merida SILEX 400 it’s weighing 10.17 kg (22.42 lbs). At this weight, is much heavier than average. To sum up, it’s 25.09% heavier than the average weight of Gravel bikes.
SILEX 400 components
Fork material
The fork is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the SILEX 400 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida SILEX 400 is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Merida SILEX 400 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, you won’t have a problem finding one that suits you.
