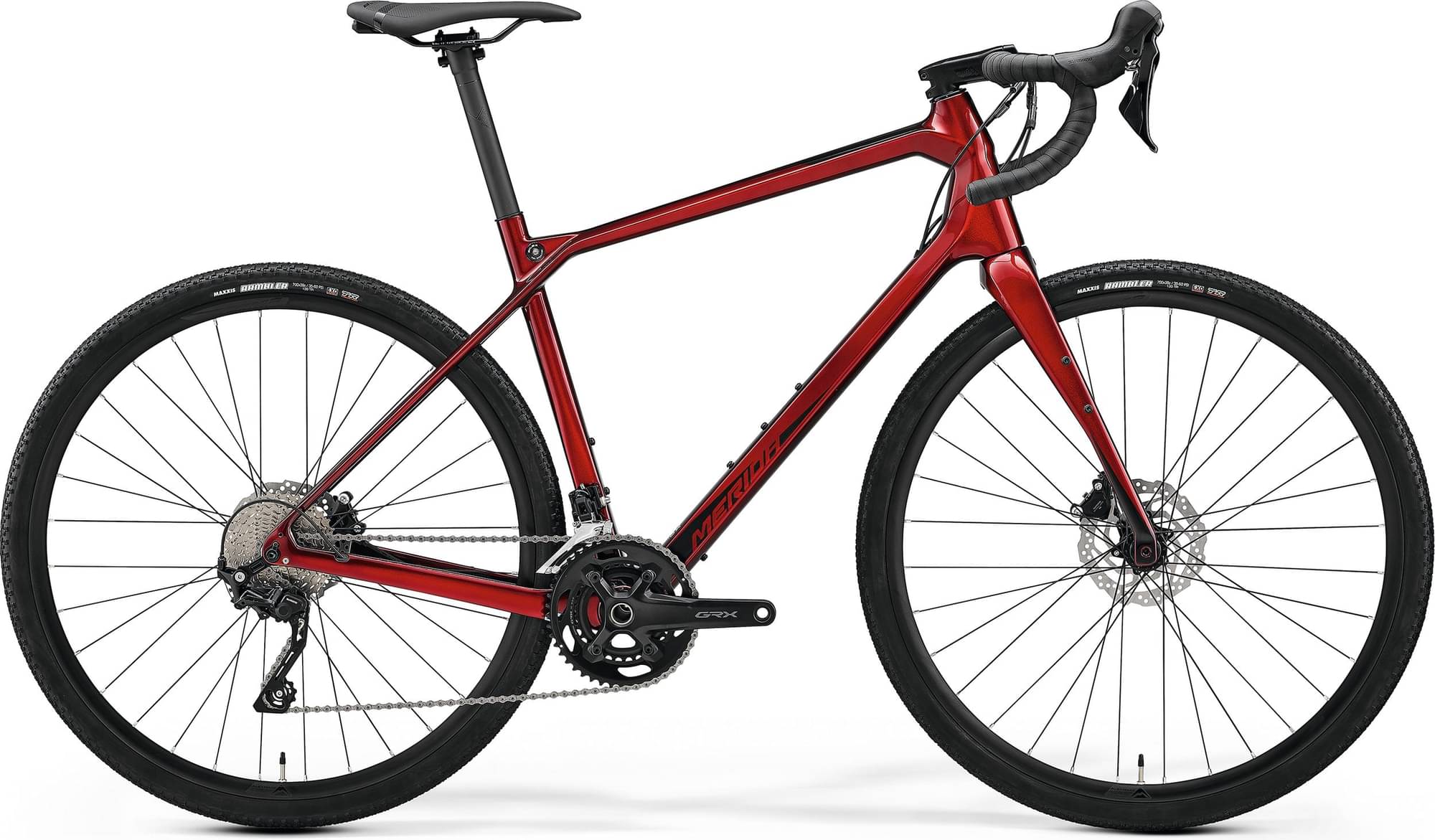

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset GRX 400, GRX 600 -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SILEX CF2, material: carbon, 700x38C / 650Bx45C max. wheelsize, 100x12/142x12mm axle standard, BB386 bottom bracket standard, MUK 36/ MUK 41 (Shimano direct mount) Hanger
Suspension Fork
MERIDA SILEX CF2, Tapered, material: carbon, 700x38C / 650Bx45C max. wheelsize
Drivetrain
Rear Derailleur
Shimano GRX400
Front Derailleur
Shimano GRX400
Shift Levers
Shimano GRX400
Cassette
Shimano CS-HG50, 11-36 teeth, 10 speed
Crank
Shimano GRX600, 46-30 teeth, 170 mm-XS/S, 172,5 mm-M, 175 mm-L/XL
Bottom Bracket
FSA 386-BB30 PF6000 [SRAM FC]
Chain
KMC X10
Wheels
Front Hub
VP CLK170F / VP CLK270R, 100x12mm width front hub, 32 spoke holes, centerlock, 142x12mm width rear hub, 32 spoke holes, centerlock
Rear Hub
VP CLK170F / VP CLK270R, 100x12mm width front hub, 32 spoke holes, centerlock, 142x12mm width rear hub, 32 spoke holes, centerlock
Rims
MERIDA COMP SL, 17mm inner width, 22mm height, material: aluminium
Spokes
Black stainless
Tires
Maxxis Rambler, 700x38C, fold, TR, EXO
Brakes
Brakes
Shimano GRX400, Hydraulic disc
Brake Levers
Shimano GRX400
Disk Rotors
Shimano RT10, 160 mm
Cockpit
Stem
MERIDA EXPERT CW, material: aluminium, 31.8mm diameter, -8° stem angle, 80 mm all sizes
Handlebar
MERIDA EXPERT GR, material: aluminium, 400mm (XS-S), 420mm (M), 440mm (L/XL)
Headset
SILEX Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA EXPERT CC, material: carbon, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.55 mm | 1.56 mm | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 625 mm | 642 mm | 663 mm | 685 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 609 mm | 628 mm | 647 mm | 666 mm |
| Reach | 392 mm | 402 mm | 417 mm | 432 mm |
| Top Tube Length | 566 mm | 582 mm | 602 mm | 622 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 180 mm | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 432 mm | 432 mm | 432 mm | 432 mm |
| Wheelbase | 1046 mm | 1063 mm | 1084 mm | 1106 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 738 mm | 767 mm | 796 mm | 824 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
SILEX 4000 belongs to the Merida Silex model. Merida released 43 bikes variations of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
The most economical model, the Merida SILEX 300 2022 has a starting price of 1273$. Merida SILEX 4000 2022 on the other hand is the most expensive at 2615$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel bikes
According to our math, the average price for a trustworthy Gravel bike is 2462$. However, this doesn’t mean that if you spend less money on a Gravel bike, you couldn’t get a decent one. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Furthermore, this bike was made available in 2022 for 2615$. Comparing the average cost of a Gravel bike to this one, you will see that SILEX 4000 price is 6.21% higher.
SILEX 4000 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
When leaving the production line, the SILEX 4000 model has 700c aluminum wheels. These wheels are the most used kind for road bikes in general. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SILEX 4000 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Merida SILEX 4000 bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
