Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Apex 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SILEX LITE
Suspension Fork
Full carbon tapered fork with 12mm through axle
Drivetrain
Rear Derailleur
SRAM Apex 1
Shift Levers
SRAM Apex, 11 speed
Cassette
SRAM PG-1130, 11 speed, 11-42 teeth
Crank
SRAM Apex 1 44 teeth
Chain
KMC X11-1
Wheels
Rims
Fulcrum Racing 700 wheelset with 12mm through axles, Double Butted Black stainless spkes
Tires
Maxxis Gravel 35c semi slick tyre folding tyre with Maxxis silkworm technology and puncture protection
Brakes
Brakes
SRAM Apex hydraulic disc brake with 160mm rotors
Brake Levers
attached
Cockpit
Handlebar
MERIDA Expert double butted 6061 aluminium compact drop, oversize clamp
Headset
Big Conoid M2334
Seat
Saddle
MERIDA Sport
Seatpost
MERIDA Comp 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.59 mm | 1.55 mm | 1.54 mm | 1.53 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 608 mm | 615 mm | 641 mm | 663 mm | 684 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 73 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 593 mm | 612 mm | 631 mm | 650 | 669 mm |
| Reach | 386 mm | 386 mm | 406 mm | 421 mm | 436 mm |
| Top Tube Length | 554.4 mm | 559.8 mm | 585.2 mm | 605.7 mm | 626.1 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1033 mm | 1040 mm | 1066 mm | 1088 mm | 1109 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 721 mm | 748 mm | 776 mm | 803 mm | 831 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

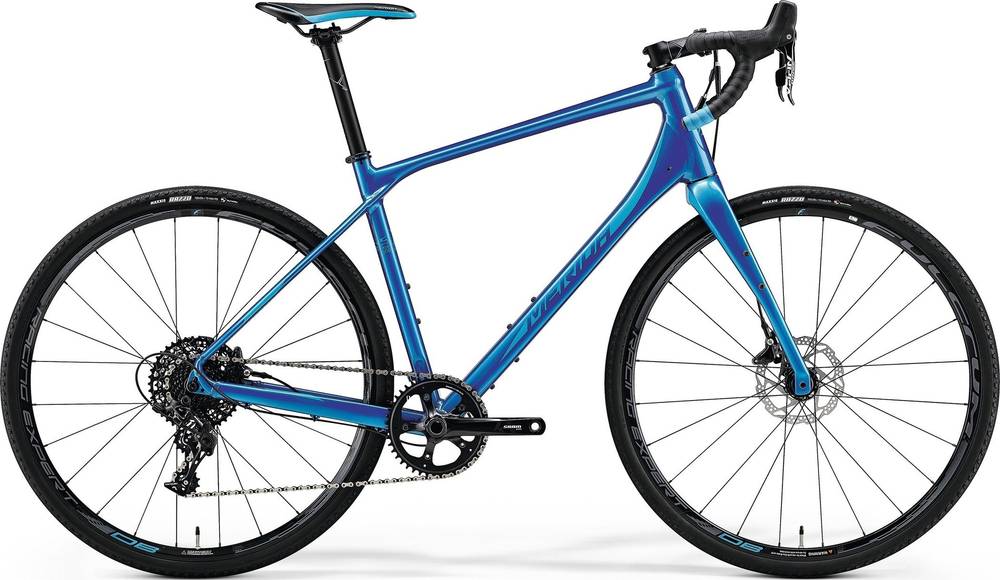

SILEX 600 completes the Merida Silex model. Merida released 43 bikes variations of this model so far. Take a sneak peek at all Merida Silex bikes models from 2018, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel bikes average price
Our math shows that the average cost of a dependable Gravel bike is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
much heavier than average, SILEX 600 has a weight of 9.55 kg (21.05 lbs). To sum up, it’s 17.47% heavier than the average weight of Gravel bikes.
Overview of components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
The SILEX 600 2018 bike is equipped with 700c aluminum wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The SILEX 600 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
SILEX 600 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
