Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SILEX CF2
Suspension Fork
Full carbon tapered fork with 12mm through axle
Drivetrain
Rear Derailleur
Shimano Ultegra
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra, 22 speed
Cassette
Shimano CS-HG-800, 11 speed, 11-34 teeth
Crank
Shimano Ultegra 50-34
Chain
KMC X11-1
Wheels
Rims
Fulcrum Racing 700 DB CX
Tires
Maxxis Gravel 35c semi slick tyre folding tyre with Maxxis silkworm technology and puncture protection
Brakes
Brakes
Shimano Ultegra hydraulic disc brakes with Shimano RT81 160mm ice tech rotors
Brake Levers
Shimano Ultegra disc
Cockpit
Handlebar
MERIDA Expert double butted 6061 aluminium compact drop, oversize clamp
Headset
Silex
Seat
Saddle
Prologo Scratch, 142mm
Seatpost
MERIDA carbon Expert 30.9mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.55 mm | 1.56 mm | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 608 mm | 625 mm | 642 mm | 663 mm | 685 mm |
| Rake | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 564 mm | 613 mm | 632 mm | 651 mm | 670 mm |
| Reach | 385 mm | 396 mm | 406 mm | 421 mm | 436 mm |
| Top Tube Length | 554 mm | 570 mm | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1033 mm | 1050 mm | 1067 mm | 1088 mm | 1110 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 707 mm | 737 mm | 766 mm | 796 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

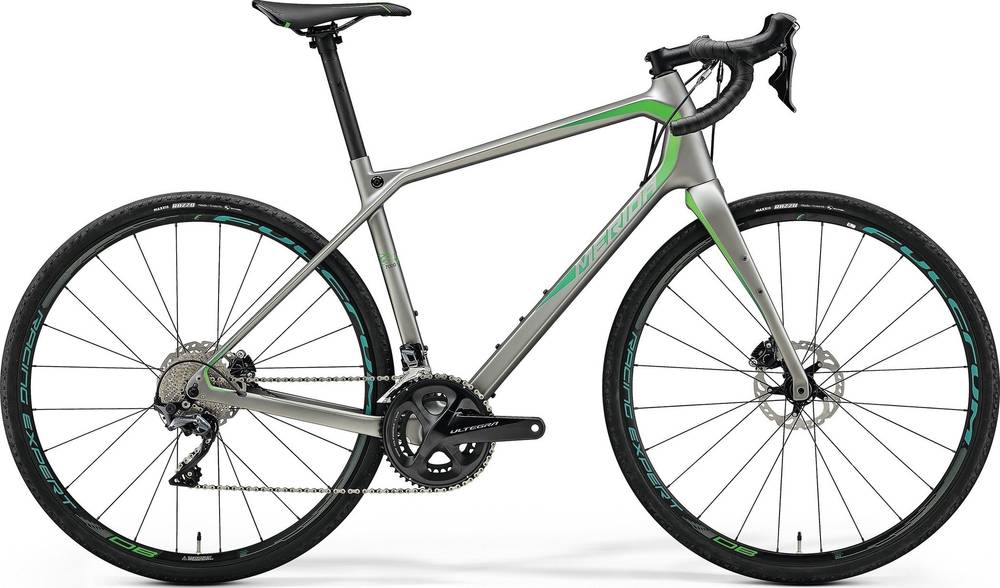

SILEX 7000 completes the Merida Silex model. There are 43 bikes that carry this model name. You can easily view all of the Merida Silex bikes models from 2018, here.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Gravel bikes average price
According to our calculations, the average cost of a Gravel bike that is reliable is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Gravel bikes average weight
If we make a quick analysis of the average weight of a Gravel bike, we get 8.13 kg (17.92 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Merida SILEX 7000 it’s weighing 8.55 kg (18.85 lbs). At this weight, is a bit heavier than average. In other words, this model is 5.17% heavier than the average Gravel bike.
SILEX 7000 components
Fork material
SILEX 7000 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
The SILEX 7000 2018 bike is equipped with 700c aluminum wheels when leaving the factory. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 5 sizes available for this model. Rider height can be anywhere between 156 cm – 195 cm (5.12 ft – 6.4 ft). In conclusion, finding one for you shouldn’t be a problem.
