Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SILEX CF2
Suspension Fork
MERIDA SILEX CF2
Drivetrain
Rear Derailleur
Shimano Ultegra, GS
Front Derailleur
Shimano Ultegra
Shift Levers
Shimano Ultegra disc
Cassette
Shimano CS-HG800, 11-34 teeth, 11 speed
Crank
Shimano Ultegra, 50-34 teeth
Chain
KMC X11
Wheels
Rims
Fulcrum Racing 700 DB, 100x12mm width front hub, 142x12mm width rear hub, 19mm inner width, 22mm height, Centerlock
Spokes
attached
Tires
Maxxis Razzo, 700x35C, fold, Silkworm
Brakes
Brakes
Shimano Ultegra, Hydraulic disc
Brake Levers
Shimano Ultegra disc
Cockpit
Handlebar
MERIDA Expert GR
Headset
SILEX Neck, 2191026478
Seat
Saddle
Prologo Scratch
Seatpost
MERIDA Expert TR, 30.9mm diameter, 0mm setback, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.55 mm | 1.56 mm | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 608 mm | 625 mm | 642 mm | 663 mm | 685 mm |
| Rake | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 564 mm | 613 mm | 632 mm | 651 mm | 670 mm |
| Reach | 385 mm | 396 mm | 406 mm | 421 mm | 436 mm |
| Top Tube Length | 554 mm | 570 mm | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1033 mm | 1050 mm | 1067 mm | 1088 mm | 1110 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 707 mm | 737 mm | 766 mm | 796 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |
About this model

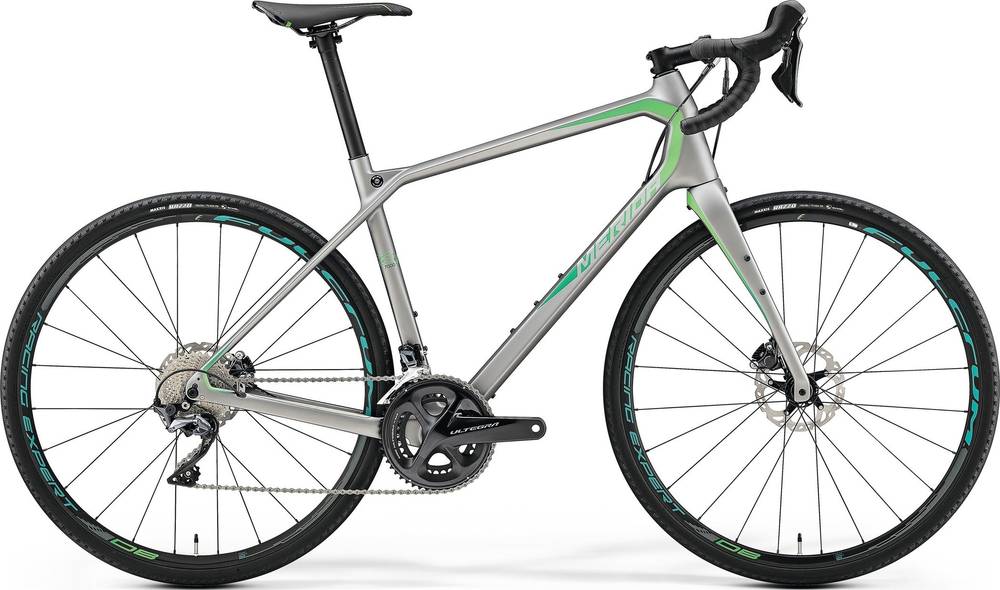

SILEX 7000 completes the Merida Silex model. There are 43 bikes that carry this model name. Check out the entire range from 2019 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, you could also get a good Gravel bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Average weight for Gravel bikes
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
a bit heavier than average, SILEX 7000 has a weight of 8.7 kg (19.18 lbs). In other words, this model is 7.01% heavier than the average Gravel bike.
Overview of components
Fork material
SILEX 7000 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The SILEX 7000 2019 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida SILEX 7000 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Merida SILEX 7000 bike has 5 sizes, in the range of 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, you can easily find one that suits you.
