Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Force 1 -
Suspension Rigid -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
XS
156cm - 166cm
SM
163cm - 174cm
MD
171cm - 182cm
LG
179cm - 189cm
XL
185cm - 195cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SILEX CF2
Suspension Fork
MERIDA SILEX CF2
Drivetrain
Rear Derailleur
SRAM Force1
Shift Levers
no / SRAM Force1 disc
Cassette
SRAM XG1150, 10-42 teeth, 11 speed
Crank
SRAM Force1, 44 teeth
Chain
KMC X11
Wheels
Rims
Fulrcum Red Passion 3, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 16mm height, Centerlock
Spokes
attached
Tires
Maxxis Razzo, 700x35C, fold, Silkworm
Brakes
Brakes
SRAM Force1, Hydraulic disc
Brake Levers
SRAM Force1 disc
Cockpit
Handlebar
MERIDA Expert GR
Headset
SILEX Neck, 2191026478
Seat
Saddle
Prologo Scratch 2
Seatpost
MERIDA Carbon Team CC, 30.9mm diameter, 0mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Stack Reach Ratio | 1.46 mm | 1.55 mm | 1.56 mm | 1.55 mm | 1.54 mm |
| Bottom Bracket Height | 274 mm | 274 mm | 274 mm | 274 mm | 274 mm |
| Front Center | 608 mm | 625 mm | 642 mm | 663 mm | 685 mm |
| Rake | 55 mm | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 62 mm | 73 mm | 73 mm | 73 mm | 73 mm |
| Stack | 564 mm | 613 mm | 632 mm | 651 mm | 670 mm |
| Reach | 385 mm | 396 mm | 406 mm | 421 mm | 436 mm |
| Top Tube Length | 554 mm | 570 mm | 586 mm | 606 mm | 626 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 470 mm | 500 mm | 530 mm | 560 mm |
| Head Tube Angle | 71 ° | 71 ° | 71 ° | 71 ° | 71 ° |
| Head Tube Length | 160 mm | 180 mm | 200 mm | 220 mm | 240 mm |
| Chainstay Length | 436 mm | 436 mm | 436 mm | 436 mm | 436 mm |
| Wheelbase | 1033 mm | 1050 mm | 1067 mm | 1088 mm | 1110 mm |
| Bottom Bracket Drop | 75 mm | 75 mm | 75 mm | 75 mm | 75 mm |
| Standover Height | 707 mm | 737 mm | 766 mm | 796 mm | 825 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 |
| Rider Min Height | 156 cm | 163 cm | 171 cm | 179 cm | 185 cm |
| Rider Max Height | 166 cm | 174 cm | 182 cm | 189 cm | 195 cm |

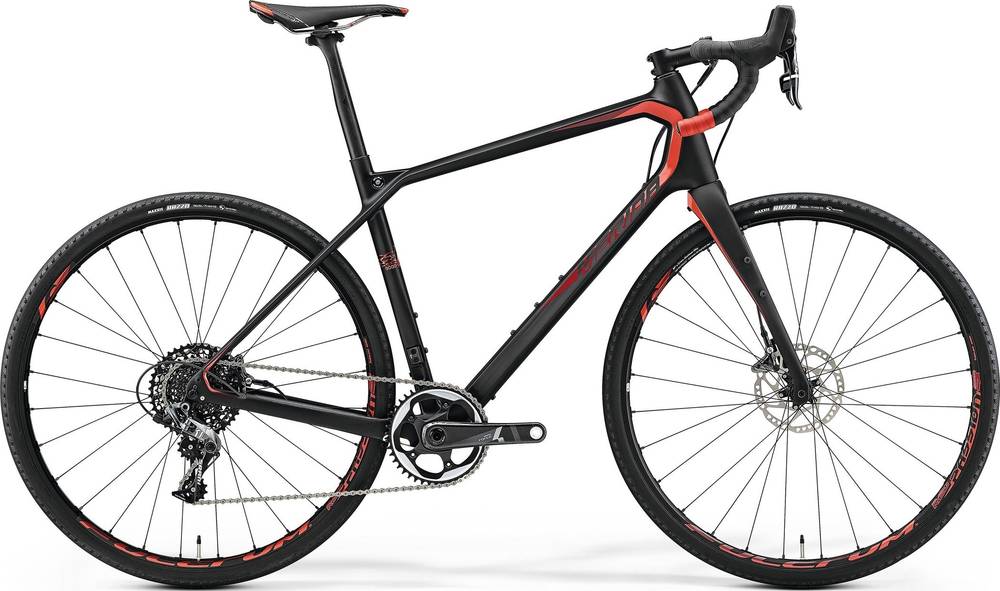

Model Overview
SILEX 9000 completes the Merida Silex model. 43 bikes variations carry this model name so far. Take a sneak peek at all Merida Silex bikes models from 2019, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Gravel bikes
If you want an acceptable Gravel bike you should know that the average price is 2462$. However, even if your budget is less than the average, you might still be able to get a top-quality Gravel bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Gravel bikes average weight
Gravel bikes weigh an average of 8.13 kg (17.92 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Merida SILEX 9000 it’s weighing 7.99 kg (17.61 lbs). At this weight, is slightly lighter than average. To sum up, it’s 1.75% lighter than the average weight of Gravel bikes.
SILEX 9000 components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When leaving the production line, the SILEX 9000 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
SILEX 9000 comes in 5 sizes, that range from 156 cm – 195 cm (5.12 ft – 6.4 ft). In short, it won’t be difficult to find the right one for you.
