Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Claris, Altus -
Suspension Rigid -
Drivetrain 3 × 8 -
Brakes Mechanical Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SPEEDER LITE
Suspension Fork
Speeder BC straight disc
Drivetrain
Rear Derailleur
Shimano Claris GS
Front Derailleur
Shimano M191 48
Shift Levers
Shimano EF51 repidfire
Cassette
Sunrace CS-8S 11-28
Crank
Shimano M131 48-38-28 CG
Bottom Bracket
Cartridge Bearing
Chain
KMC 8s
Wheels
Front Hub
Alloy Disc / Alloy Disc cassette
Rear Hub
Alloy Disc / Alloy Disc cassette
Rims
MERIDA comp 22 disc pair
Tires
Kenda K193 700 32
Brakes
Brakes
Tektro Aries disc 160
Brake Levers
attached
Cockpit
Handlebar
MERIDA comp OS 600 Flat
Headset
Big Conoid Semi
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA road comp SB12 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.58 mm | 1.65 mm | 1.71 mm | 1.73 mm |
| Front Center | 591 mm | 587 mm | 591 mm | 591 mm | 595 mm | 610 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm | 44 mm |
| Trail | 73 mm | 66 mm | 67 mm | 63 mm | 60 mm | 61 mm |
| Stack | 568 mm | 581 mm | 591 mm | 611 mm | 637 mm | 661 mm |
| Reach | 370 mm | 372 mm | 373 mm | 371 mm | 373 mm | 381 mm |
| Top Tube Length | 527 mm | 532 mm | 542 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm | 240 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1020 mm | 1016 mm | 1020 mm | 1020 mm | 1024 mm | 1039 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 737 mm | 763 mm | 779 mm | 798 mm | 818 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

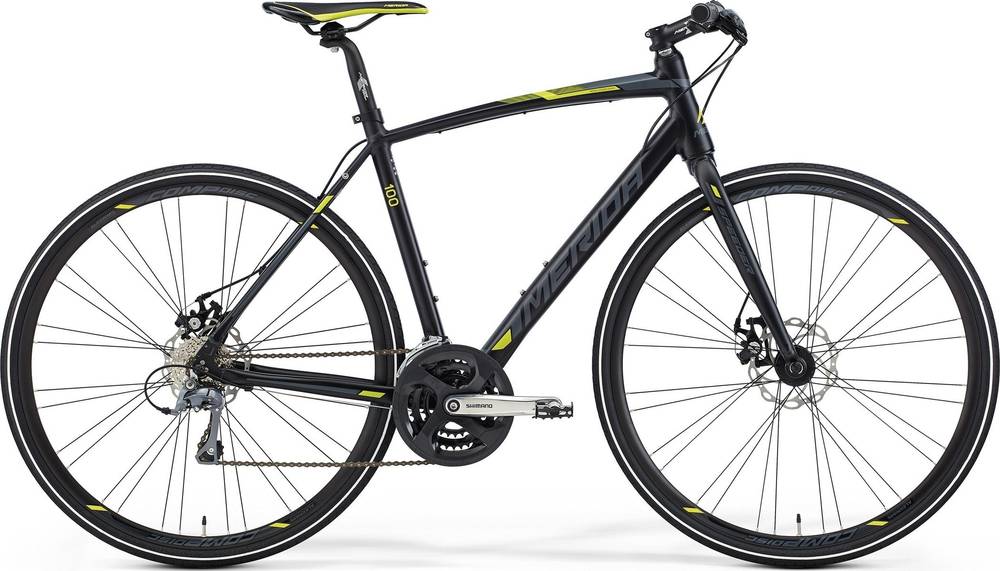

Speeder 100-MD belongs to the Merida Speeder model. There are 90 bikes that carry this model name. You can easily view all of the Merida Speeder bikes models from 2015, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fitness bikes
If you want an acceptable Fitness bike you should know that the average price is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Speeder 100-MD components
Wheels
When leaving the production line, the Speeder 100-MD model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Speeder 100-MD comes with Mechanical Disc brakes. These brakes are also very popular, and a lot cheaper than hydraulic disk brakes. However, performance-wise there is room for improvement.
