Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Tiagra, Shimano -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SPEEDER LITE
Suspension Fork
Speeder BC straight V
Drivetrain
Rear Derailleur
Shimano TIAGRA GS
Front Derailleur
Shimano M371 48
Shift Levers
Shimano Altus rapidfire
Cassette
Sunrace CS-9S 11-28
Crank
SR NCX 48A-38-28 CG
Bottom Bracket
Shimano cartridge
Chain
KMC M99
Wheels
Front Hub
OV alloy / OV cassette
Rear Hub
OV alloy / OV cassette
Rims
MERIDA comp 20 pair
Tires
Maxxis Detonator 32 60
Brakes
Brakes
V-Brake Linear
Brake Levers
attached
Cockpit
Handlebar
MERIDA comp OS 600 Flat
Headset
Big Conoid Semi
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA road comp SB12 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.58 mm | 1.65 mm | 1.71 mm | 1.73 mm |
| Front Center | 591 mm | 587 mm | 591 mm | 591 mm | 595 mm | 610 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm | 44 mm |
| Trail | 73 mm | 66 mm | 67 mm | 63 mm | 60 mm | 61 mm |
| Stack | 568 mm | 581 mm | 591 mm | 611 mm | 637 mm | 661 mm |
| Reach | 370 mm | 372 mm | 373 mm | 371 mm | 373 mm | 381 mm |
| Top Tube Length | 527 mm | 532 mm | 542 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm | 240 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1020 mm | 1016 mm | 1020 mm | 1020 mm | 1024 mm | 1039 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 737 mm | 763 mm | 779 mm | 798 mm | 818 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

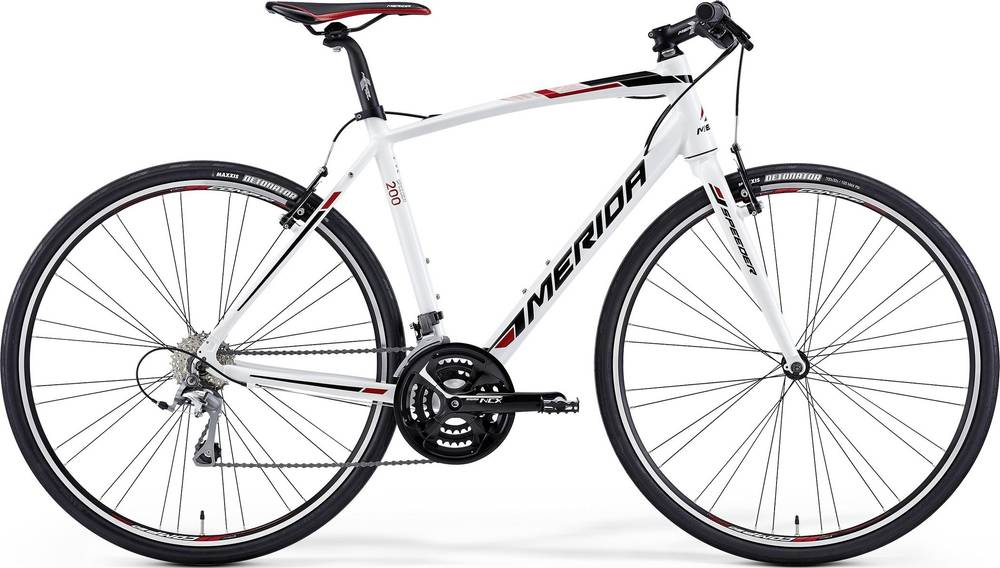

Speeder 200 is part of the Merida Speeder model. There are 90 bikes that carry this model name. You can easily view all of the Merida Speeder bikes models from 2015, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
Our math shows that the average cost of a dependable Fitness bike is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Speeder 200 components
Wheels size
When leaving the production line, the Speeder 200 model has 700c aluminum wheels. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
