Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 700c -
Groupset Sora, FSA -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SPEEDER LITE III, material: aluminium, 700x35C max. wheelsize, 100x9/135x9 mm axle standard, BSA bottom bracket standard
Suspension Fork
MERIDA SPEEDER CF2, Tapered, material: carbon, 700x35C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Sora, SS
Front Derailleur
Shimano Sora
Shift Levers
Shimano SL-R3000 / Shimano SL-R3000 9
Cassette
Shimano CS-HG200, 11-32 teeth, 9 speed
Crank
FSA Tempo, 50-34 teeth, 170 mm-XXS/XS, 175 mm-L/XL
Bottom Bracket
FSA TH-7420ST
Chain
KMC M99
Pedals
VP VPE-891
Wheels
Front Hub
Joytech D471SBT-SC-CL / Shimano FH-TX505, 100x9 mm width front hub, 28 spoke holes, centerlock, 135x9 mm width rear hub, 32 spoke holes, centerlock
Rear Hub
Joytech D471SBT-SC-CL / Shimano FH-TX505, 100x9 mm width front hub, 28 spoke holes, centerlock, 135x9 mm width rear hub, 32 spoke holes, centerlock
Rims
MERIDA COMP SL, 17 mm inner width, 22 mm height, material: aluminium, Tubeless ready (tubeless tape and valves not included)
Spokes
Black stainless
Tires
Front: Maxxis Detonator, 700x32C, wire, Rear: Maxxis Detonator, 700x32C, wire
Brakes
Brakes
Shimano MT200, 2 piston
Brake Levers
Shimano MT200
Cockpit
Stem
MERIDA COMP CC, material: aluminium, 31.8 mm diameter, 6° stem angle, 80 mm-XXS/XS, 90 mm-S, 100 mm-M, 110 mm-L/XL
Handlebar
MERIDA COMP TK, material: aluminium, 600 mm width, Flat
Headset
MERIDA M2331 Neck
Seat
Saddle
MERIDA COMP SL, V-mount
Seatpost
MERIDA COMP CC, material: aluminium, 30.9 mm diameter, 5 mm setback
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XXS | XS | SM | MD | LG | XL |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.445 mm | 1.462 mm | 1.47 mm | 1.5 mm | 1.539 mm | 1.575 mm |
| Front Center | 621 mm | 623 mm | 628 mm | 636 mm | 645 mm | 658 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm | 46 mm | 45 mm |
| Trail | 79 mm | 76 mm | 73 mm | 69 mm | 65 mm | 66 mm |
| Stack | 562 mm | 573 mm | 585 mm | 606 mm | 631 mm | 655 mm |
| Reach | 389 mm | 392 mm | 398 mm | 404 mm | 410 mm | 416 mm |
| Top Tube Length | 555 mm | 561 mm | 571 mm | 583 mm | 597 mm | 610 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 70 ° | 70.5 ° | 71 ° | 71.5 ° | 72 ° | 72 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm | 240 mm |
| Chainstay Length | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm | 438 mm |
| Wheelbase | 1051 mm | 1053 mm | 1058 mm | 1066 mm | 1075 mm | 1088 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 744 mm | 769 mm | 787 mm | 806 mm | 828 mm | 855 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

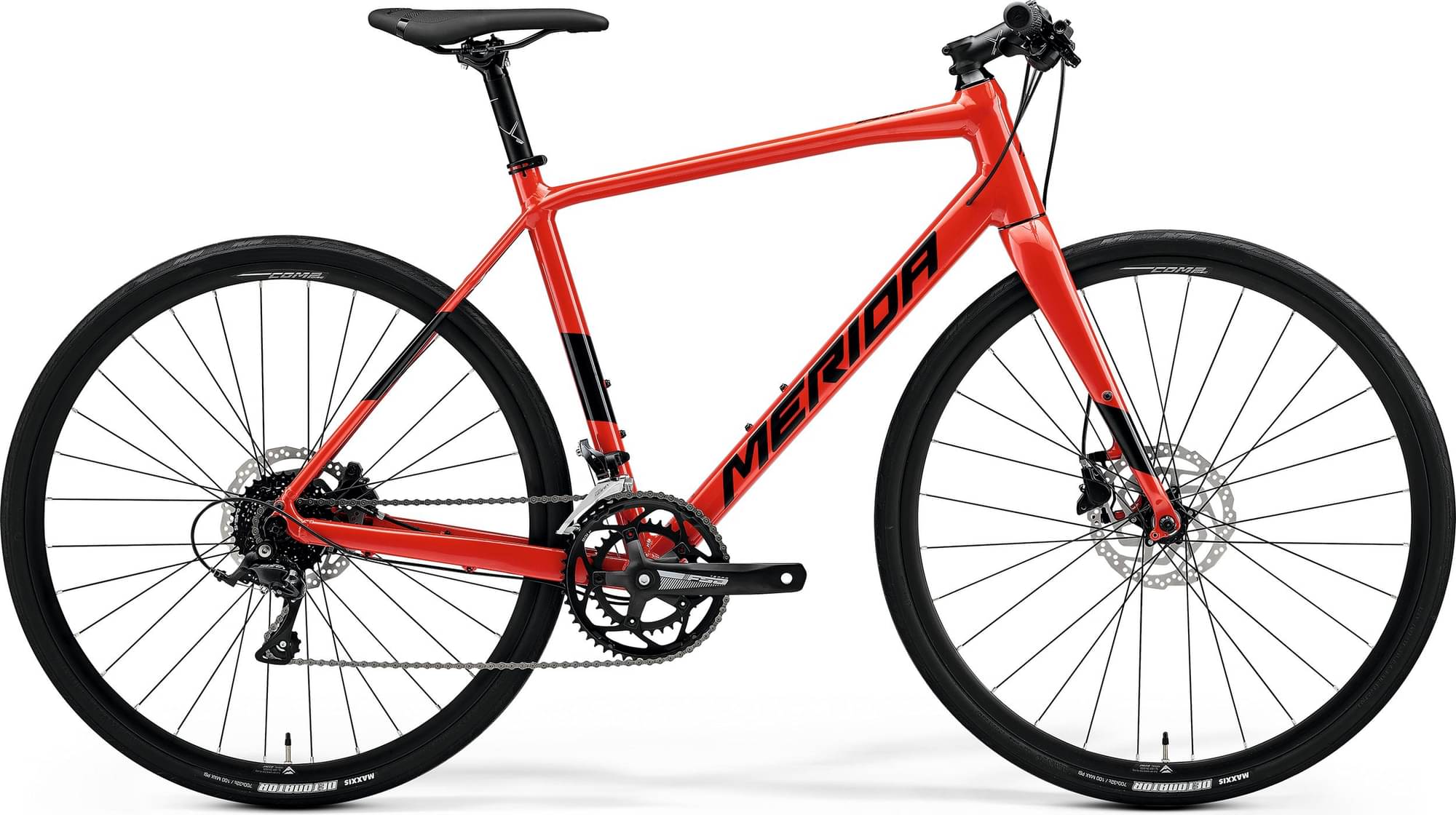

SPEEDER 200 is a Merida Speeder model. Merida launched 95 bikes of this model so far. You can easily view all of the Merida Speeder bikes models from 2024, here.
Model range prices
Merida SPEEDER 100 2024 is the cheapest bike model and costs 738$. Merida SPEEDER 200 2024 is the most expensive one and costs 834$.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Fitness bikes
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
At the moment of the release date, Merida SPEEDER 200 price was 834$. Comparing this to the average Fitness bike price, we see that the price is 27.13% higher.
Overview of components
Fork material
The fork is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels
When leaving the production line, the SPEEDER 200 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida SPEEDER 200 has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
