Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SPEEDER LITE
Suspension Fork
Speeder BC straight V
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano TIAGRA 10 D
Shift Levers
Shimano SL-R460 / Shimano SL-R460 10
Cassette
Shimano CS-4600-10 12-28
Crank
FSA Omega 50-34 Mega
Bottom Bracket
attached
Chain
KMC Z10-10s
Wheels
Front Hub
Road seal Bearing
Rear Hub
Road seal Bearing
Rims
MERIDA comp 20 pair
Tires
Continental Sport Contact II 32
Brakes
Brakes
Avid Single Digit 3
Brake Levers
Avid FR5
Cockpit
Handlebar
MERIDA pro OS 600 Flat
Headset
Big Conoid Semi
Seat
Saddle
MERIDA Sport 5
Seatpost
MERIDA pro H SB15 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.58 mm | 1.65 mm | 1.71 mm | 1.73 mm |
| Front Center | 591 mm | 587 mm | 591 mm | 591 mm | 595 mm | 610 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm | 44 mm |
| Trail | 73 mm | 66 mm | 67 mm | 63 mm | 60 mm | 61 mm |
| Stack | 568 mm | 581 mm | 591 mm | 611 mm | 637 mm | 661 mm |
| Reach | 370 mm | 372 mm | 373 mm | 371 mm | 373 mm | 381 mm |
| Top Tube Length | 527 mm | 532 mm | 542 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm | 240 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1020 mm | 1016 mm | 1020 mm | 1020 mm | 1024 mm | 1039 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 737 mm | 763 mm | 779 mm | 798 mm | 818 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
About this model

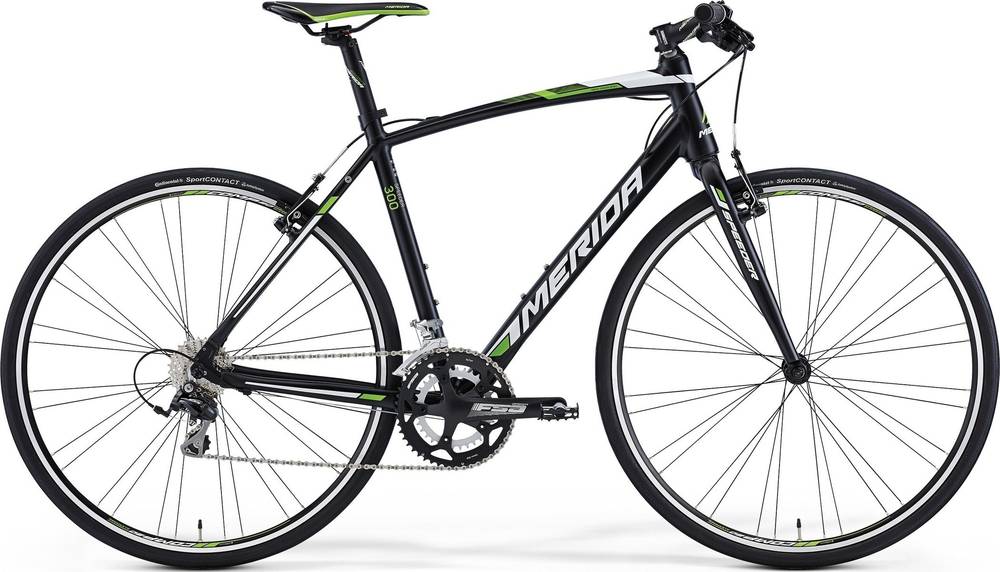

Speeder 300 completes the Merida Speeder model. Merida launched 90 bikes of this model so far. You can easily view all of the Merida Speeder bikes models from 2015, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Fitness bikes average price
If you want an acceptable Fitness bike you should know that the average price is 656$. However, this doesn’t mean that if you spend less money on a Fitness bike, you couldn’t get a decent one. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Overview of components
Wheels size
As for the wheels, Merida Speeder 300 2015, has a 700c aluminum model. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Speeder 300 is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, you could spend a little extra and get a bike that has hydraulic brakes.
