Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SPEEDER CF3
Suspension Fork
Race carbon disc 15
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano 105
Shift Levers
Shimano SL-RS700 / Shimano SL-RS700 11
Cassette
Shimano CS-5800-11 11-28
Crank
Shimano 105 50-34 [PF86]
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11
Wheels
Front Hub
Centerlock-15 / FoBearing Cen 12
Rear Hub
Centerlock-15 / FoBearing Cen 12
Rims
MERIDA Expert 22 SL disc pair
Spokes
Double Butted Black stainless
Tires
Continental Ultra Sport II 28 fold
Brakes
Brakes
Shimano M447 160 cen / Shimano M447 160 cen J
Brake Levers
Shimano M506
Cockpit
Handlebar
MERIDA Expert OS 600 Flat
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
Prologo Kappa Dea
Seatpost
MERIDA carbon Expert SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 53cm |
|---|---|---|---|
| Stack Reach Ratio | 1.4 mm | 1.44 mm | 1.46 mm |
| Front Center | 588 mm | 584 mm | 589 mm |
| Rake | 50 mm | 50 mm | 46 mm |
| Trail | 71 mm | 64 mm | 65 mm |
| Stack | 523 mm | 537 mm | 556 mm |
| Reach | 373 mm | 374 mm | 381 mm |
| Top Tube Length | 522 mm | 532 mm | 547 mm |
| Seat Tube Angle | 74 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 470 mm | 500 mm | 530 mm |
| Head Tube Angle | 70.5 ° | 71.5 ° | 72 ° |
| Head Tube Length | 100 mm | 111 mm | 131 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1004 mm | 1000 mm | 1005 mm |
| Bottom Bracket Drop | 68 mm | 68 mm | 68 mm |
| Standover Height | 727 mm | 750 mm | 777 mm |
| Wheels | 700 | 700 | 700 |

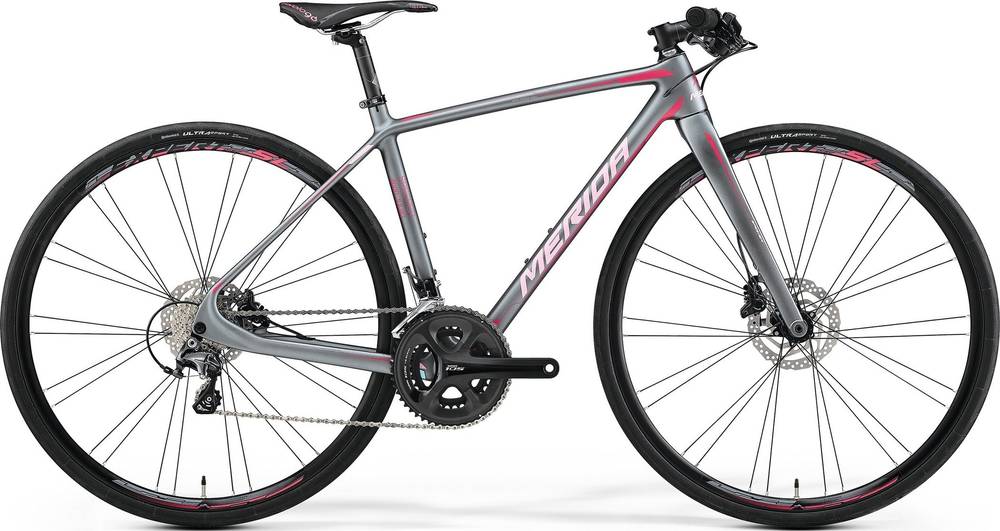

About this model
SPEEDER 4000 JULIET completes the Merida Speeder model. There are 90 bikes that carry this model name. Check out the entire range from 2017 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Fitness bikes average price
If you want an acceptable Fitness bike you should know that the average price is 656$. However, even if your budget is less than the average, you might still be able to get a top-quality Fitness bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Fitness bikes average weight
Fitness bikes weigh an average of 11.24 kg (24.78 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
With a weight of 8.19 kg (18.06 lbs), Merida bike is much lighter than average. In other words, this model is 37.24% lighter than the average Fitness bike.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When it comes to wheels, the SPEEDER 4000 JULIET bike is equipped with the 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
