Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, 105 -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
SPEEDER LITE
Suspension Fork
Speeder BC crabon straight disc
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano Ultegra Double
Shift Levers
Shimano SL-RS700 / Shimano SL-RS700 11
Cassette
Shimano CS-5800-11 11-28
Crank
FSA Gossamer 50-34 Mega
Bottom Bracket
attached
Chain
FSA F11S
Wheels
Front Hub
Formula Centerlock / Formula Centerlock casette
Rear Hub
Formula Centerlock / Formula Centerlock casette
Rims
MERIDA comp 22 disc pair
Tires
Maxxis Detonator 28 60 fold
Brakes
Brakes
Shimano T445 160 cen
Brake Levers
attached
Cockpit
Handlebar
MERIDA pro OS 600 Flat
Headset
Big Conoid S-bearing neck pro
Seat
Saddle
Selle Italia X1
Seatpost
MERIDA carbon H SB15 27.2
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.58 mm | 1.65 mm | 1.71 mm | 1.73 mm |
| Front Center | 591 mm | 587 mm | 591 mm | 591 mm | 595 mm | 610 mm |
| Rake | 45 mm | 45 mm | 44 mm | 45 mm | 45 mm | 44 mm |
| Trail | 73 mm | 66 mm | 67 mm | 63 mm | 60 mm | 61 mm |
| Stack | 568 mm | 581 mm | 591 mm | 611 mm | 637 mm | 661 mm |
| Reach | 370 mm | 372 mm | 373 mm | 371 mm | 373 mm | 381 mm |
| Top Tube Length | 527 mm | 532 mm | 542 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm | 240 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Wheelbase | 1020 mm | 1016 mm | 1020 mm | 1020 mm | 1024 mm | 1039 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Standover Height | 737 mm | 763 mm | 779 mm | 798 mm | 818 mm | 846 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |
Model Overview

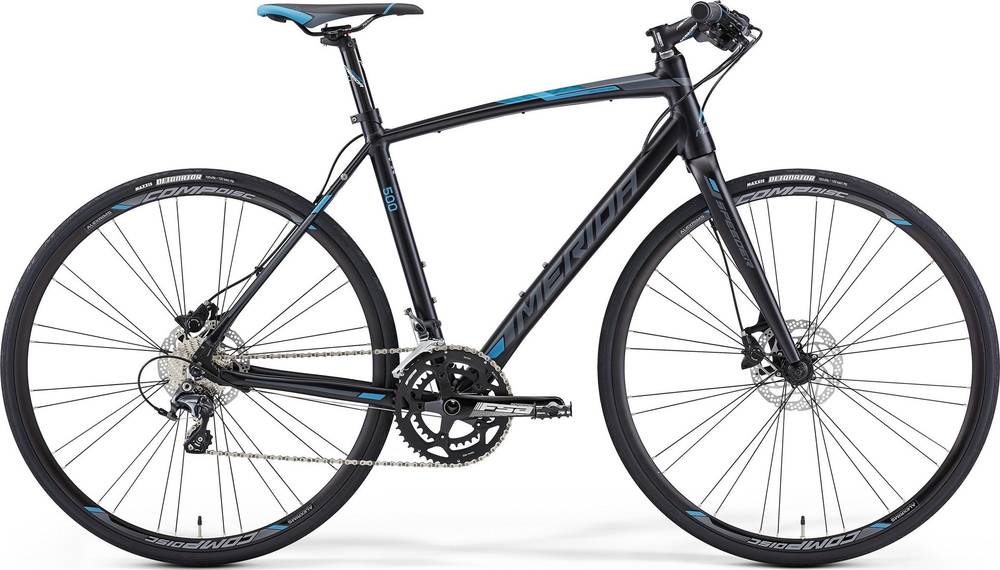

Speeder 500 is a Merida Speeder model. There are 90 bikes that carry this model name. You can easily view all of the Merida Speeder bikes models from 2015, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fitness bikes
If you want to purchase a solid Fitness bike, it is important to know that the average cost is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Speeder 500 components
Wheels size
The Speeder 500 2015 bike is equipped with 700c aluminum wheels when leaving the factory. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Speeder 500 comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
