Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset 105, Sora -
Suspension Rigid -
Drivetrain 2 × 9 -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Speeder Ride-D-Single
Suspension Fork
Speeder Lite Disc
Drivetrain
Rear Derailleur
Shimano 105 SS
Front Derailleur
Shimano Sora D
Shift Levers
Shimano Sora Rapidfire
Cassette
SRAM PG950 11-26
Crank
FSA Omega 48-34 Mega
Bottom Bracket
Shimano Cartridge
Chain
KMC X9 9s
Wheels
Front Hub
Alloy Disc QR
Rear Hub
Alloy Disc QR
Rims
MERIDA Comp D-Pair
Spokes
black stainless-P
Tires
Continental Sport Contact 32
Brakes
Brakes
Tektro HDC Hydraulic Disc 160 mm
Brake Levers
attached
Cockpit
Handlebar
MERIDA Pro OS 600 Flat
Headset
EGG Steel Neck
Seat
Saddle
MERIDA Pro SI
Seatpost
Merida Pro H SB15 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.58 mm | 1.65 mm | 1.71 mm | 1.73 mm |
| Stack | 568 mm | 581 mm | 591 mm | 611 mm | 637 mm | 661 mm |
| Reach | 370 mm | 372 mm | 373 mm | 371 mm | 373 mm | 381 mm |
| Top Tube Length | 527 mm | 532 mm | 542 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm | 240 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

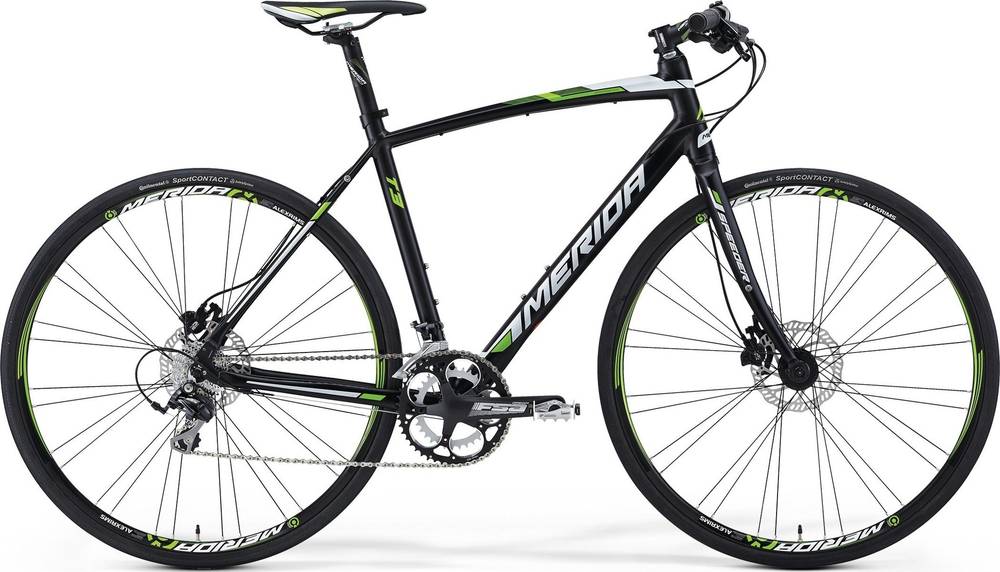

About this model
Speeder T3-D is a Merida Speeder model. There are 90 bikes that carry this model name. You can easily view all of the Merida Speeder bikes models from 2014, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Fitness bikes
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, even though the average price of a Fitness bike is lower, you might still be able to get a top-quality bike. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
slightly lighter than average, Speeder T3-D has a weight of 10.9 kg (24.03 lbs). In conclusion, the average Fitness bike weighs 3.12% more than Speeder T3-D.
Speeder T3-D components
Wheels
The wheels on Speeder T3-D are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Speeder T3-D is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
