Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, Tiagra -
Suspension Rigid -
Drivetrain 2 × 10 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Speeder Ride-V-Single
Suspension Fork
Speeder Carbon
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano Tiagra D
Shift Levers
Shimano Tiagra Rapidfire
Cassette
SRAM PG1050 11-26
Crank
FSA Omega 48-34 Mega
Bottom Bracket
attached
Chain
KMC X10 10s
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Fulcrum Racing Comp CX
Spokes
attached
Tires
Maxxis Detonator 28 60
Brakes
Brakes
Avid Single Digit 3
Brake Levers
Avid FR5
Cockpit
Handlebar
MERIDA Pro OS 600 Flat
Headset
EGG S-Bearing Neck
Seat
Saddle
ProLogo Kappa Evo
Seatpost
Merida Carbon H SB15 31.6 mm
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 47cm | 50cm | 52cm | 54cm | 56cm | 59cm |
|---|---|---|---|---|---|---|
| Stack Reach Ratio | 1.54 mm | 1.56 mm | 1.58 mm | 1.65 mm | 1.71 mm | 1.73 mm |
| Stack | 568 mm | 581 mm | 591 mm | 611 mm | 637 mm | 661 mm |
| Reach | 370 mm | 372 mm | 373 mm | 371 mm | 373 mm | 381 mm |
| Top Tube Length | 527 mm | 532 mm | 542 mm | 552 mm | 567 mm | 582 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74 ° | 73.5 ° | 73 ° | 73 ° |
| Seat Tube Length | 470 mm | 500 mm | 520 mm | 540 mm | 560 mm | 590 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72.5 ° | 73 ° | 73 ° |
| Head Tube Length | 150 mm | 160 mm | 170 mm | 190 mm | 215 mm | 240 mm |
| Chainstay Length | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm | 437 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 700 | 700 | 700 | 700 | 700 | 700 |

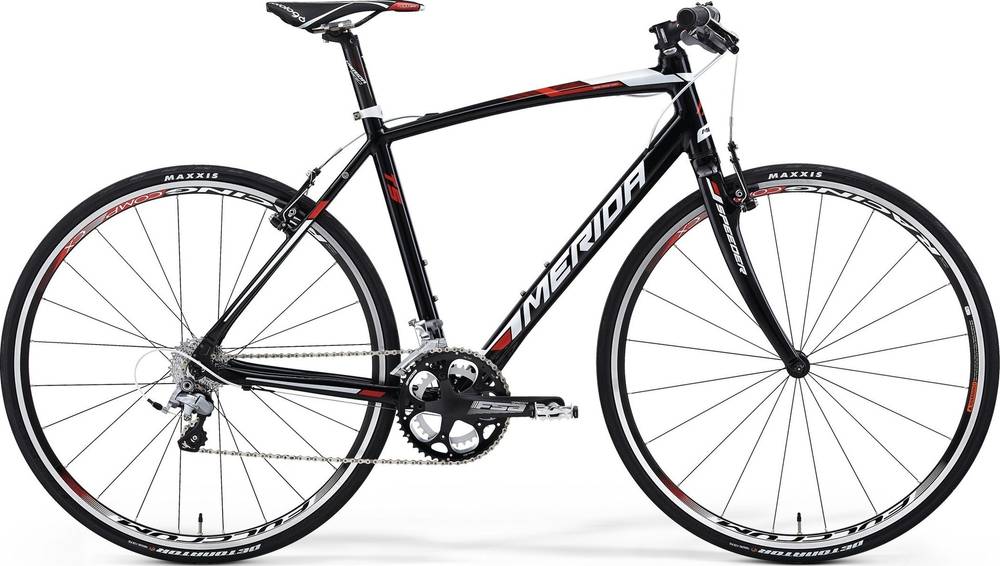

Model Overview
Speeder T5 belongs to the Merida Speeder model. 90 bikes variations carry this model name so far. You can easily view all of the Merida Speeder bikes models from 2014, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Fitness bikes
According to our calculations, the average cost of a Fitness bike that is reliable is 656$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Fitness bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Average weight for Fitness bikes
On a deeper look, we notice that the average weight of a Fitness bike is 11.24 kg (24.78 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 9.3 kg (20.5 lbs), the Speeder T5 model is much lighter than average. In short, the average Fitness bike weight is 20.86% higher than this one.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it’s a great addition to the bike’s value. However, carbon forks should be regularly inspected for damage because even the smallest crack could cause the fork to fall apart.
Wheels size
The wheels on Speeder T5 are the 700c aluminum type. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The Speeder T5 comes with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
