Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2, Shimano -
Suspension Rigid -
Drivetrain Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TIME-WARP TRI IV CF5; MAT carbon; 700x30C max. WHS; 100x12/ 142x12 AST; Pressfit 86,5
Suspension Fork
TIME-WARP TRI IV CF5 disc; MAT carbon; 700x30C max. WHS
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2
Front Derailleur
Shimano Dura Ace Di2
Shift Levers
Shimano ST-R9180
Cassette
Shimano CS-R9200; 11-30 ATC; 12 GER
Crank
Shimano Dura Ace; 52-36 ATC; Power Meter
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
Shimano CN-M9100-12
Wheels
Rims
METRON 81 SL Clincher TL Disc; 100x12 WHF; 142x12 WHR; 21 IWR; 81 HRI; Centerlock; MAT carbon; Tubeless ready (tubeless tape and valves not included)
Tires
Continental Grand Prix 5000S TR; 700x28C; fold; tubeless ready
Brakes
Brakes
Shimano Dura Ace; Hydraulic disc
Brake Levers
Shimano Dura Ace
Cockpit
Handlebar
MERIDA Metron TT; MAT carbon
Headset
Merida TIME WARP TT
Seat
Saddle
Prologo TGALE TT CPC Nack
Seatpost
MERIDA TEAM TT II; Aero shape; Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.35 mm | 1.28 mm | 1.31 mm |
| Bottom Bracket Height | 281 mm | 266 mm | 266 mm |
| Front Center | 578 mm | 616 mm | 639 mm |
| Rake | 39 mm | 43 mm | 43 mm |
| Trail | 68 mm | 64 mm | 64 mm |
| Stack | 517 mm | 531 mm | 561 mm |
| Reach | 382 mm | 414 mm | 428 mm |
| Top Tube Length | 508 mm | 548 mm | 568 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 135 mm | 135 mm | 178 mm |
| Chainstay Length | 413 mm | 413 mm | 413 mm |
| Wheelbase | 985 mm | 1019 mm | 1042 mm |
| Bottom Bracket Drop | 55 mm | 70 mm | 70 mm |
| Standover Height | 774 mm | 792 mm | 831 mm |
| Wheels | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

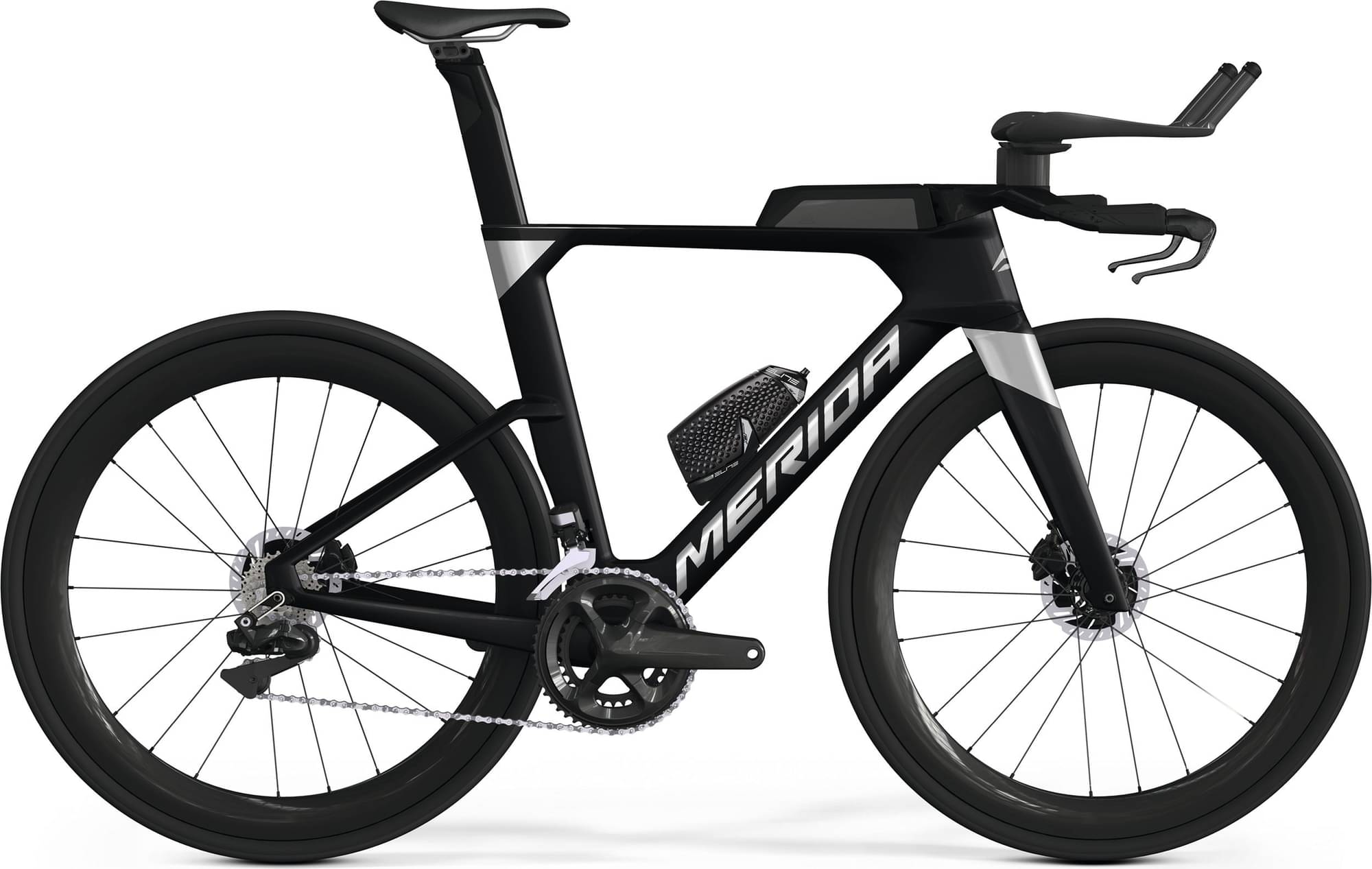

TIME WARP TRI 10K belongs to the Merida Time model. Merida released 10 bikes variations of this model so far. Take a sneak peek at all Merida Time bikes models from 2022, by clicking here.
Model range prices
Merida TIME WARP TRI LTD 2022 is the cheapest bike model and costs 5731$. Merida TIME WARP TRI 10K 2022 is the most expensive one and costs 8279$.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Triathlon bikes
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. To sum up, when you purchase your bike, make sure to check if it has reviews, and also do some components research.
Furthermore, this bike was made available in 2022 for 8279$. Doing a quick comparison, we notice that TIME WARP TRI 10K price is 98.2% more expensive than the average cost of a Triathlon bike.
TIME WARP TRI 10K components
Fork material
When it comes to the fork, this bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
When it comes to wheels, the TIME WARP TRI 10K bike is equipped with the 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
For your safety, it is important to have quality breaks on your bike. Merida TIME WARP TRI 10K has Hydraulic Disc brakes installed. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, these are ideal for anyone.
Sizes
This bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
