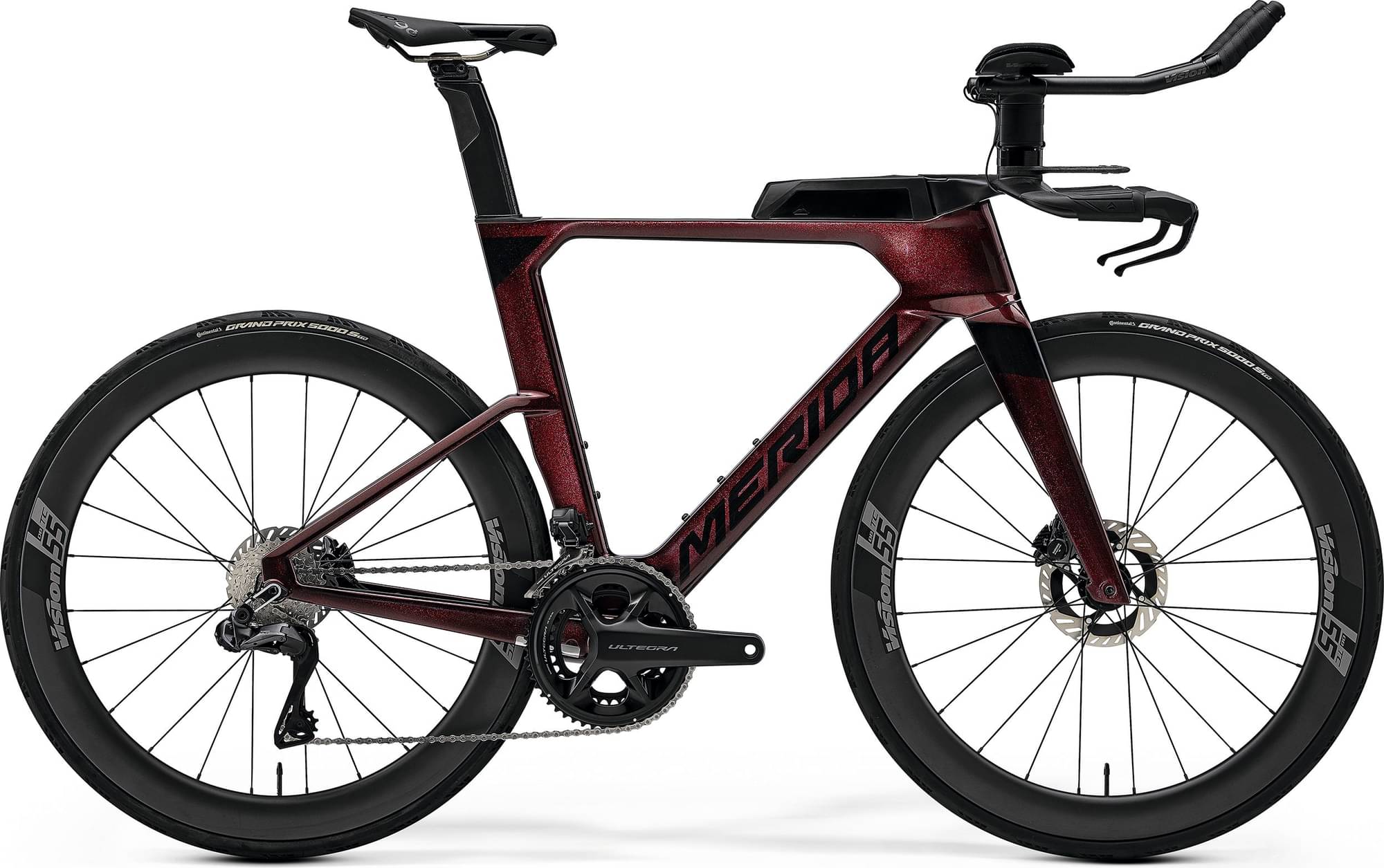

Merida TIME WARP TRI LIMITED 2024
2024 Road
Estimate price |
6,498$
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Ultegra Di2, Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 12 Electronic -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
TIME-WARP TRI CF5 IV, material: carbon, 700x30C max. wheelsize, 100x12/ 142x12mm axle standard, Pressfit 86,5
Suspension Fork
TIME-WARP TRI CF5 IV disc, material: carbon, 700x30C max. wheelsize
Drivetrain
Rear Derailleur
Shimano Ultegra Di2
Front Derailleur
Shimano Ultegra Di2
Shift Levers
Shimano ST-R9180
Cassette
Shimano CS-R8100, 11-30 teeth, 12 speed
Crank
Shimano Ultegra, 52-36 teeth, 165 mm-XS, 170 mm-S, 172.5 mm-M, 175 mm-L
Bottom Bracket
BB86/BB92, 86mm, press-fit
Chain
Shimano CN-M6100-12
Wheels
Rims
Vision TC 55, 100x12mm width front hub, 142x12mm width rear hub, 21mm inner width, 55mm height, Centerlock, material: carbon, Tubeless ready (tubeless tape and valves not included)
Tires
Continental Grand Prix 5000S TR, 700x28C, fold, tubeless ready
Brakes
Brakes
Shimano Dura Ace, Hydraulic disc
Brake Levers
Shimano Dura Ace
Cockpit
Handlebar
MERIDA Metron TT, material: carbon
Headset
MERIDA TIME WARP TT
Seat
Saddle
Prologo ZERO TRI PAS TIROX
Seatpost
MERIDA TEAM TT II, Aero shape, Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | XS | SM | MD | XXS |
|---|---|---|---|---|
| Stack Reach Ratio | 1.33 mm | 1.37 mm | 1.28 mm | 1.35 mm |
| Bottom Bracket Height | 281 mm | 281 mm | 266 mm | 266 mm |
| Front Center | 575 mm | 579 mm | 617 mm | 640 mm |
| Rake | 42 mm | 43 mm | 43 mm | 43 mm |
| Trail | 71 mm | 64 mm | 64 mm | 64 mm |
| Stack | 488 mm | 510 mm | 525 mm | 566 mm |
| Reach | 368 mm | 373 mm | 409 mm | 419 mm |
| Top Tube Length | 482 mm | 502 mm | 542 mm | 562 mm |
| Seat Tube Angle | 77 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 460 mm | 500 mm | 540 mm | 580 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 110 mm | 130 mm | 130 mm | 173 mm |
| Chainstay Length | 407 mm | 407 mm | 407 mm | 407 mm |
| Wheelbase | 976 mm | 980 mm | 1014 mm | 1037 mm |
| Bottom Bracket Drop | 55 mm | 55 mm | 70 mm | 70 mm |
| Standover Height | 744 mm | 773 mm | 791 mm | 830 mm |
| Wheels | 700 | 700 | 700 | 700 |
About this model
TIME WARP TRI LIMITED is a Merida Time model. 10 bikes variations carry this model name so far. You can easily view all of the Merida Time bikes models from 2024, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Triathlon bikes average price
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, even though the average price of a Triathlon bike is lower, you might still be able to get a top-quality bike. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
At the moment of the release date, Merida TIME WARP TRI LIMITED price was 5731$. Comparing this to the average Triathlon bike price, we see that the price is 37.2% more expensive.
TIME WARP TRI LIMITED components
Fork material
The fork on this bike is made out of carbon, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Merida TIME WARP TRI LIMITED 2024, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The TIME WARP TRI LIMITED comes with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
