Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Dura-Ace Di2, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Warp TT Carbon-Direct-E
Suspension Fork
Warp TT Lite-Direct
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2
Front Derailleur
Shimano Dura Ace Di2
Shift Levers
Shimano Dura Ace Di2 TT
Cassette
Shimano CD-9000 12-25 11s
Crank
Shimano Dure Ace 53-39
Bottom Bracket
attached
Chain
Shimano Dura Ace 11s
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Fulcrum Red Wind XLR 80
Spokes
attached
Tires
Continental Grand Prix 4000S 23 KV
Brakes
Brakes
Shimano Dura Ace-Direct
Brake Levers
attached
Cockpit
Handlebar
FSA KO-MIC-Si
Headset
attached
Seat
Saddle
ProLogo Nago Evo Tri40 TS
Seatpost
Warp Aero Carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 57cm |
|---|---|---|---|
| Stack Reach Ratio | 1.17 mm | 1.09 mm | 1.13 mm |
| Bottom Bracket Height | 281 mm | 266 mm | 266 mm |
| Stack | 455 mm | 465 mm | 495 mm |
| Reach | 389 mm | 427 mm | 439 mm |
| Top Tube Length | 500 mm | 540 mm | 561 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 73 mm | 73 mm | 105 mm |
| Chainstay Length | 391 mm | 391 mm | 391 mm |
| Bottom Bracket Drop | 55 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 |
About this model

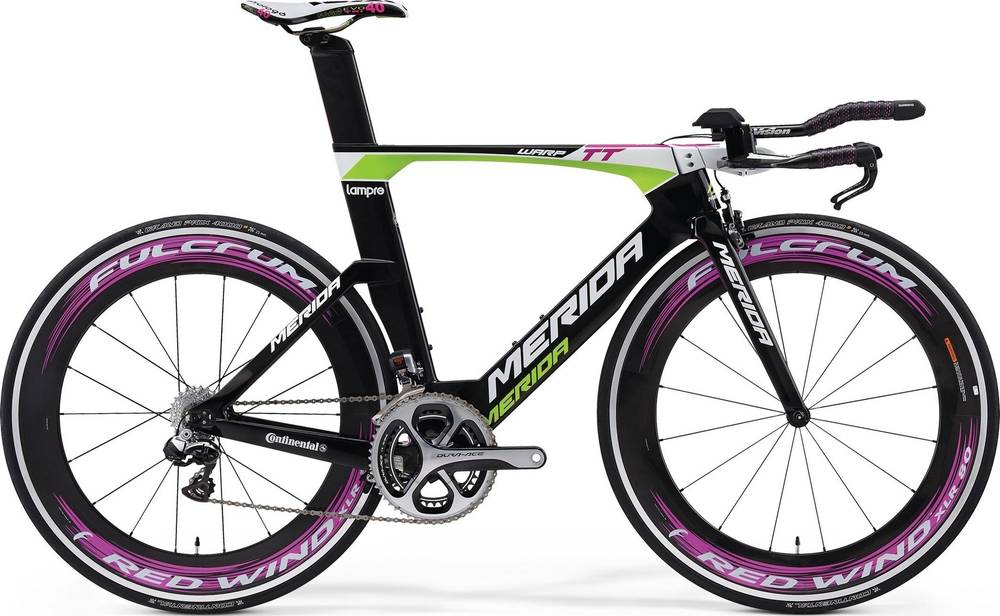

Warp CF Team-E completes the Merida Warp model. Merida launched 18 bikes of this model so far. You can easily view all of the Merida Warp bikes models from 2014, here.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Triathlon bikes average price
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, you could also get a good Triathlon bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Triathlon bikes average weight
The average weight for Triathlon bikes is 8.9 kg (19.62 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
Weighing 8.6 kg (18.96 lbs), the Warp CF Team-E model is slightly lighter than average. In short, the average Triathlon bike weight is 3.49% higher than this one.
Warp CF Team-E components
Fork material
When it comes to the fork, this bike has a carbon one, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
The Warp CF Team-E 2014 bike is equipped with 700c carbon wheels when leaving the factory. There is no doubt, that 700c wheels are very popular on all road bike models. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Warp CF Team-E is equipped with Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
