Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WARP TRI CF2
Suspension Fork
Warp Tri-direct-E
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano Ultegra D
Shift Levers
Shimano BS-R1 2 / Shimano BS-R1 11
Cassette
Shimano CS-5800-11 12-25
Crank
Vision Trimax pro TT 52-38
Bottom Bracket
attached
Chain
FSA F11S
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Fulcrum Quattro 35
Tires
Continental Grand Sport Race 23 fold
Brakes
Brakes
Shimano Ultegra-direct / Merida Direct R
Brake Levers
Profile 3oneA
Cockpit
Handlebar
Profile Ozero TT base -T2+ aero clip
Headset
attached
Seat
Saddle
Selle Italia SL T1
Seatpost
Warp Aero carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 57cm |
|---|---|---|---|
| Stack Reach Ratio | 1.23 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 281 mm | 266 mm | 266 mm |
| Front Center | 612 mm | 639 mm | 665 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Trail | 70 mm | 64 mm | 64 mm |
| Stack | 495 mm | 548 mm | 580 mm |
| Reach | 401 mm | 423 mm | 438 mm |
| Top Tube Length | 508 mm | 541 mm | 563 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 155.5 mm | 190 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm |
| Wheelbase | 1005 mm | 1028 mm | 1054 mm |
| Bottom Bracket Drop | 55 mm | 70 mm | 70 mm |
| Standover Height | 826 mm | 859 mm | 889 mm |
| Wheels | 700 | 700 | 700 |

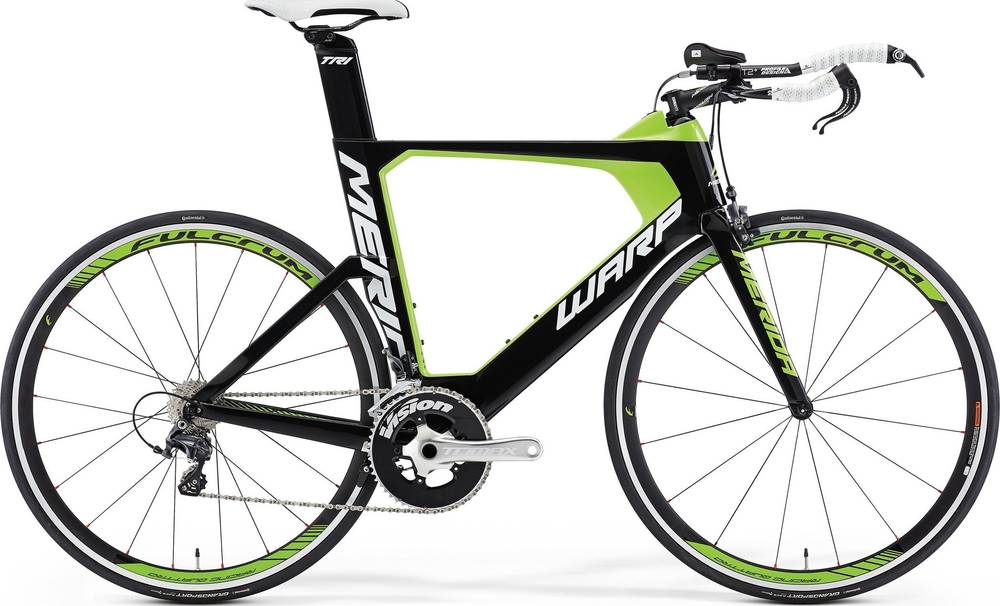

Model Overview
Warp TRI 5000 is a Merida Warp model. There are 18 bikes that carry this model name. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Triathlon bikes average price
According to our calculations, the average cost of a Triathlon bike that is reliable is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. As a general rule of thumb, you should always read reviews about the bike and its components before buying it to ensure you don’t pay too much.
Overview of components
Fork material
Warp TRI 5000 has a carbon fork, so, it is super light and stiff. In conclusion, a carbon fork gives you great control when steering, and is also more forgiving.
Wheels size
When leaving the production line, the Warp TRI 5000 model has 700c aluminum wheels. These are the most popular wheels for road, aero, gravel, cyclocross, race, and gravel bikes. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Rim brakes. Rim brakes are cheaper than hydraulic brakes, and also easier to maintain. However, they are not nearly as effective as hydraulic brakes are.
