Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Ultegra, Shimano -
Suspension Rigid -
Drivetrain 2 × 11 -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WARP TRI CF4
Suspension Fork
Warp Tri-direct-E
Drivetrain
Rear Derailleur
Shimano Ultegra SS
Front Derailleur
Shimano Ultegra D
Shift Levers
Shimano BS-R1 2 / Shimano BS-R1 11
Cassette
Shimano CS-5800-11 12-25
Crank
Vision Trimax pro TT 52-36 Mega [PF86]
Bottom Bracket
BB86/BB92, press-fit
Chain
KMC X11EL
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Vision Metron 55
Spokes
attached
Tires
Continental Grand Sport Race 23 fold
Brakes
Brakes
Shimano 105-direct
Brake Levers
Profile 3oneA
Cockpit
Handlebar
Profile Ozero TT base -T2+ aero clip
Headset
Warp Bearing
Seat
Saddle
MERIDA-2302
Seatpost
Warp Aero carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 57cm |
|---|---|---|---|
| Stack Reach Ratio | 1.23 mm | 1.3 mm | 1.32 mm |
| Bottom Bracket Height | 281 mm | 266 mm | 266 mm |
| Front Center | 612 mm | 639 mm | 665 mm |
| Rake | 43 mm | 43 mm | 43 mm |
| Trail | 70 mm | 64 mm | 64 mm |
| Stack | 495 mm | 548 mm | 580 mm |
| Reach | 401 mm | 423 mm | 438 mm |
| Top Tube Length | 508 mm | 541 mm | 563 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 71 ° | 72 ° | 72 ° |
| Head Tube Length | 120 mm | 155.5 mm | 190 mm |
| Chainstay Length | 399 mm | 399 mm | 399 mm |
| Wheelbase | 1005 mm | 1028 mm | 1054 mm |
| Bottom Bracket Drop | 55 mm | 70 mm | 70 mm |
| Standover Height | 771 mm | 789 mm | 819 mm |
| Wheels | 700 | 700 | 700 |
Model Overview

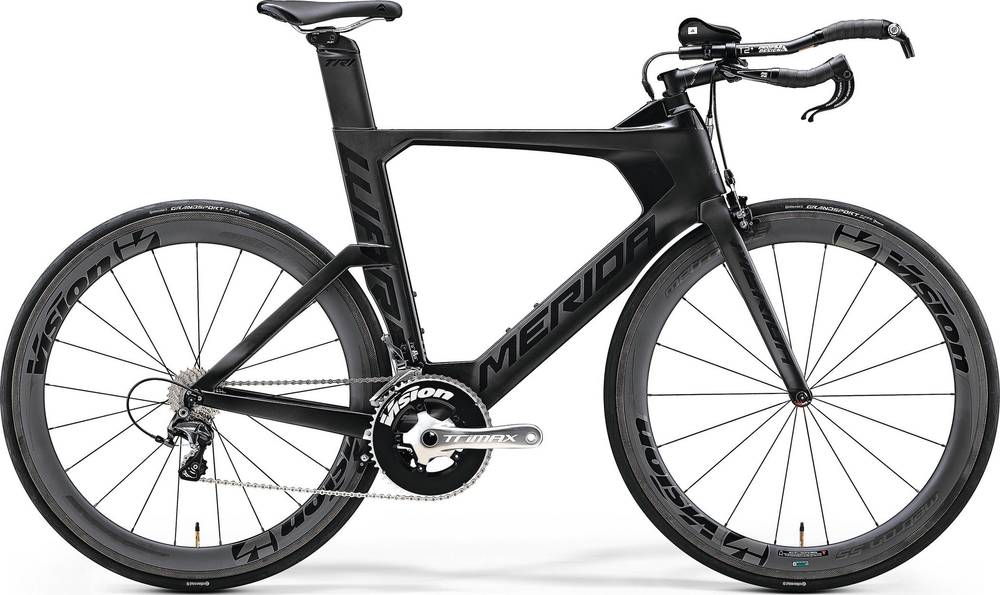

WARP TRI 5000 belongs to the Merida Warp model. There are 18 bikes that carry this model name. You can get a glimpse at all models from 2017, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Triathlon bikes average price
If you want to purchase a solid Triathlon bike, it is important to know that the average cost is 4177$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Triathlon bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Triathlon bikes
Triathlon bikes have an average weight of 8.9 kg (19.62 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
WARP TRI 5000 weighs 8.76 kg (19.31 lbs) and is slightly lighter than the average. In other words, this model is 1.6% lighter than the average Triathlon bike.
Overview of components
Fork material
WARP TRI 5000 has a carbon fork, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels
When it comes to wheels, the WARP TRI 5000 bike is equipped with the 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
When you want to stop the bike in time, the brakes are vital. The WARP TRI 5000 has Rim brakes. Slightly lighter than hydraulic brakes, rim brakes are a budget choice. However, they are not nearly as effective as hydraulic brakes are.
