Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Wheels 700c -
Groupset Dura-Ace Di2 -
Suspension Rigid -
Drivetrain 2 × 11 Electronic -
Brakes Rim
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
WARP TT CF4
Suspension Fork
Warp TT lite-direct-E
Drivetrain
Rear Derailleur
Shimano Dura Ace Di2
Front Derailleur
Shimano Dura Ace Di2
Shift Levers
Shimano Dura Ace TT [Di2] remote
Cassette
Shimano CS-9000-11 12-25
Crank
Rotor Flow noQ 54-42
Bottom Bracket
attached
Chain
Shimano Dura Ace 11s
Wheels
Front Hub
attached
Rear Hub
attached
Rims
Fulcrum Red Wind XLR 80
Tires
Continental Grand Prix 4000S 23 KV
Brakes
Brakes
Shimano Dura Ace-direct
Brake Levers
attached
Cockpit
Handlebar
FSA KO-MIC-Si base+aero clip
Headset
attached
Seat
Saddle
Prologo Zero TT CPC Tirox
Seatpost
Warp Aero carbon
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | 51cm | 54cm | 57cm |
|---|---|---|---|
| Stack Reach Ratio | 1.17 mm | 1.09 mm | 1.13 mm |
| Bottom Bracket Height | 281 mm | 266 mm | 266 mm |
| Front Center | 578 mm | 616 mm | 640 mm |
| Rake | 43 mm | 43 mm | 45 mm |
| Trail | 64 mm | 64 mm | 62 mm |
| Stack | 455 mm | 465 mm | 495 mm |
| Reach | 389 mm | 427 mm | 439 mm |
| Top Tube Length | 500 mm | 540 mm | 561 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 510 mm | 540 mm | 570 mm |
| Head Tube Angle | 72 ° | 72 ° | 72 ° |
| Head Tube Length | 73 mm | 73 mm | 105 mm |
| Chainstay Length | 391 mm | 391 mm | 391 mm |
| Wheelbase | 963 mm | 997 mm | 1021 mm |
| Bottom Bracket Drop | 55 mm | 70 mm | 70 mm |
| Standover Height | 832 mm | 856 mm | 884 mm |
| Wheels | 700 | 700 | 700 |
Model Overview

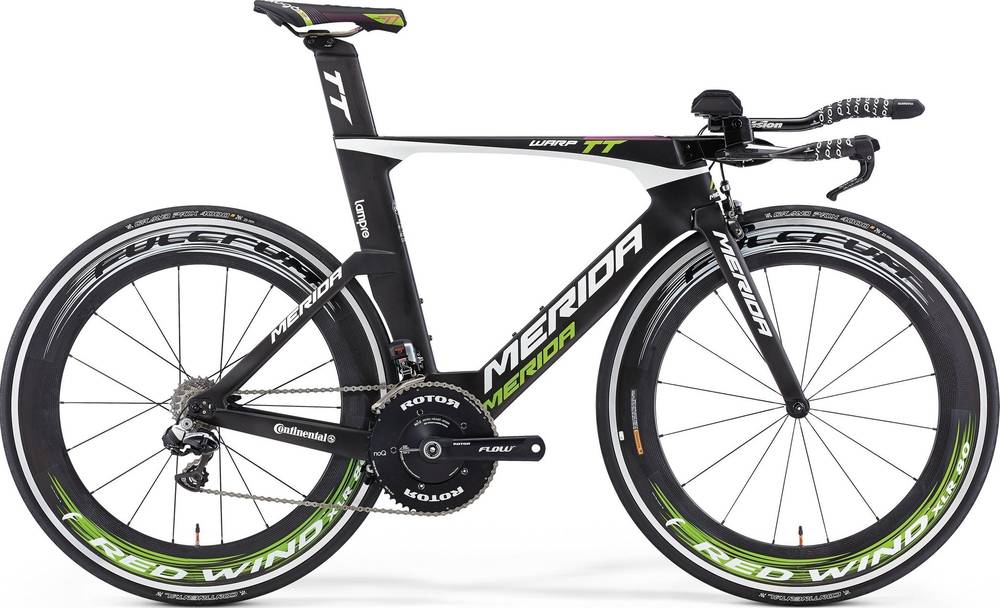

Warp TT Team-E is a Merida Warp model. Merida launched 18 bikes of this model so far. Check out the entire range from 2015 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Triathlon bikes average price
If you want an acceptable Triathlon bike you should know that the average price is 4177$. However, even if your budget is less than the average, you might still be able to get a top-quality Triathlon bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Overview of components
Fork material
The fork on this bike is made out of carbon, so, it won’t add up to much weight to your bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
As for the wheels, Merida Warp TT Team-E 2015, has a 700c carbon model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
Nothing is more important on a bike than its ability to brake properly. Merida Warp TT Team-E is equipped with Rim brakes. Rim brakes deliver an average performance overall. However, they are not nearly as effective as hydraulic brakes are.
