Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Travel Rear 120mm -
Fork Fox Factory Float 34
-
Groupset GX Eagle, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several molds. TA 12mm. Internal Cable Routing. Boost. Post Mount. Full Integrated Battery. Head tube 1.5 Tapered.
Suspension Fork
Fox Factory 34 E-Bike. Travel 120mm. Tapered.
Rear Shock
Fox Float DPS Factory 120 E-bike
Drivetrain
Shift Levers
SRAM GX Eagle 12V
Cassette
SRAM GX Eagle XG-1275 12V 10-52
Crank
Fsa Forged E-bike 34
Chain
SRAM SX Eagle 12V
Wheels
Rims
Mavic E-DEEMAX 29 35 CL
Tires
Hutchinson Griffus TLR Sideskin 29x2.50
Brakes
Brakes
SRAM DB8 CL 200/180
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 760mm 10mm Rise
Headset
Ritchey Pro Integrada Tapered 1.5
Seat
Saddle
San Marco GND Dynamic
Seatpost
Race Face Aeffect R Dropper 125mm 30.9
Motor & Battery
Motor
Bosch Performance Line CX
Remote
Bosch Kiox / Bosch Power Tube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.35 mm | 1.31 mm |
| Bottom Bracket Height | 337 mm | 337 mm | 337 mm |
| Front Center | 728 mm | 759 mm | 790 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 99 mm | 99 mm | 99 mm |
| Stack | 615 mm | 628 mm | 642 mm |
| Reach | 441 mm | 465 mm | 490 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 67 ° | 67 ° | 67 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1189 mm | 1220 mm | 1251 mm |
| Bottom Bracket Drop | 37 mm | 37 mm | 37 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model

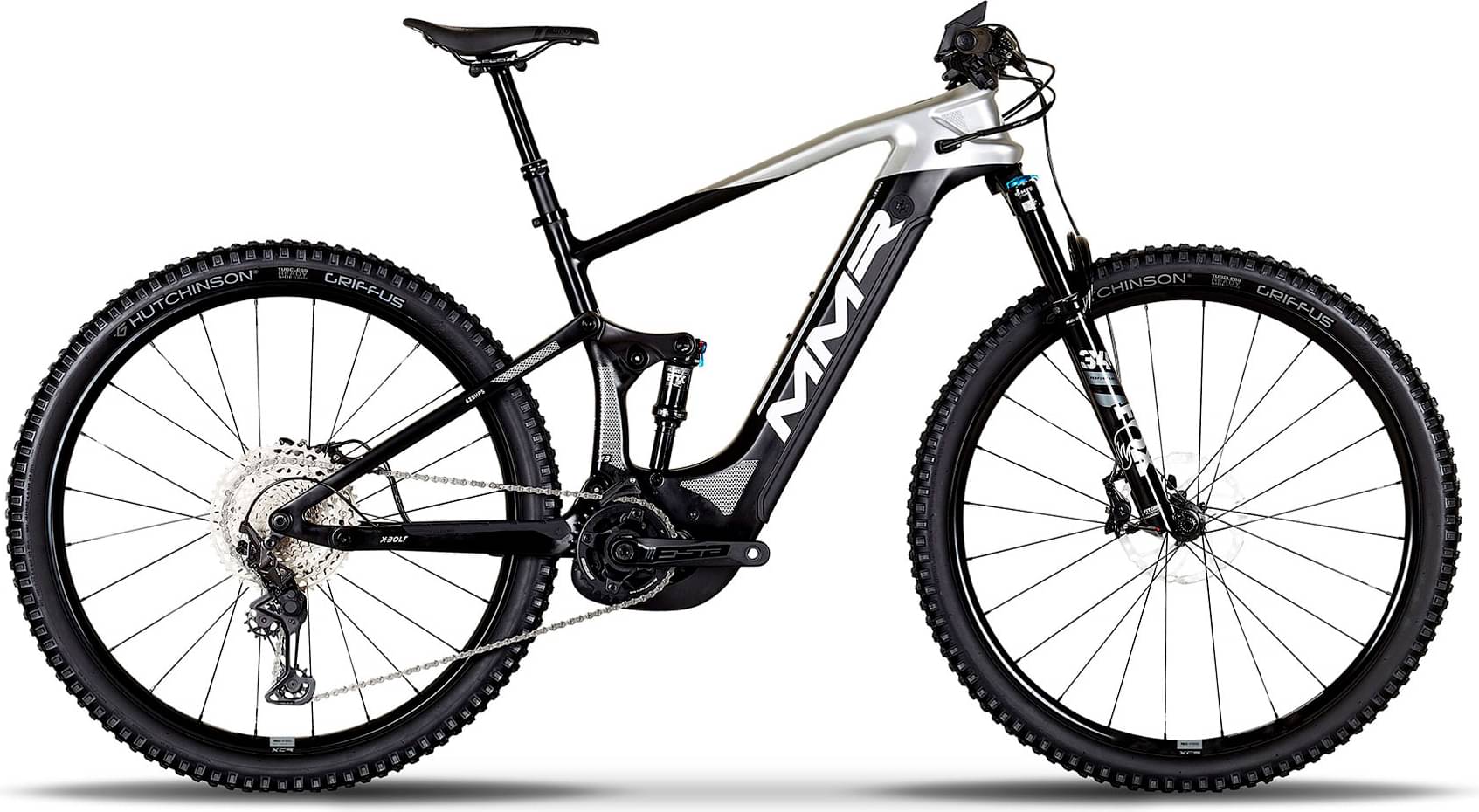

X-BOLT 120 10 completes the Mmr E X Bolt model. 17 e-bikes variations carry this model name so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
MMR X-BOLT 120 30 2022 is the most economical model, with a starting price of 5096$. MMR X-BOLT 140 00 2022 on the other hand costs 7007$, and is the most expensive model.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Trail e-bikes
If you want an acceptable Trail e-bike you should know that the average price is 3365$. However, this doesn’t mean that if you spend less money on a Trail e-bike, you couldn’t get a decent one. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2022 for 5945$. In conclusion, this e-bike price is 76.67% more expensive than the price of the average Trail e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
X-BOLT 120 10 components
Fork
The Fox Factory Float 34 is included from the factory. It has a travel distance of 120mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS Factory 120 E-bike, with a travel distance of 120mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When leaving the production line, the X-BOLT 120 10 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 3 sizes available for this model. Rider height can be anywhere between 158 cm – 187 cm (5.18 ft – 6.14 ft). In short, you can easily find one that suits you.
Dropper post
Every bike should have a dropper post, and this one does. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
