Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork Fox Factory Float 36
-
Groupset XT, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several molds. TA 12mm. Internal Cable Routing. Boost. Post Mount. Full Integrated Battery. Head tube 1.5 Tapered.
Suspension Fork
Fox Factory 36 E-Bike. Travel 140mm. Tapered.
Rear Shock
Fox Float X Factory 140 E-bike
Drivetrain
Shift Levers
Shimano XT M8100 12V

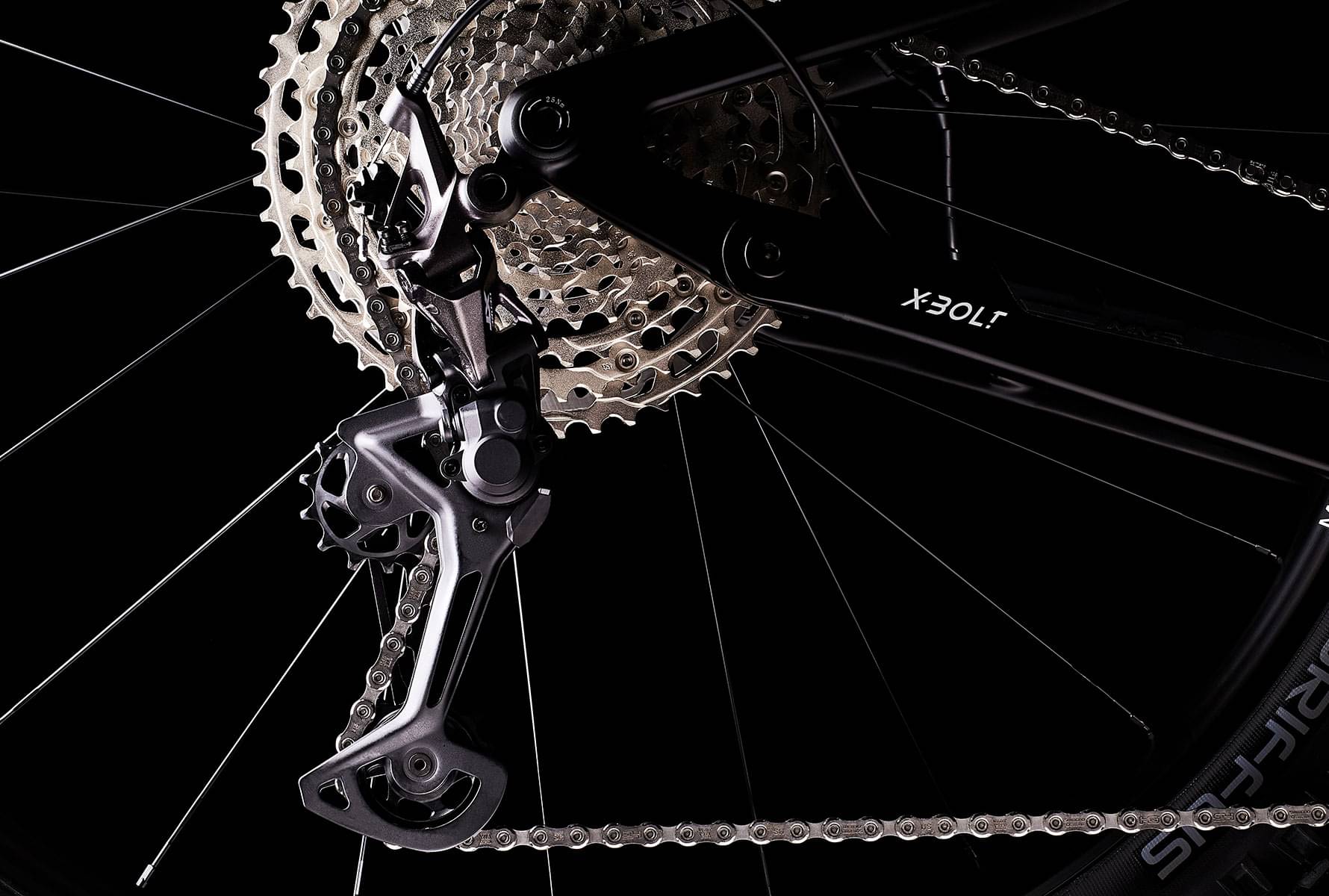

Cassette
Shimano Deore M6100 12V 10-51
Crank
Fsa KFX E-bike 34
Chain
Shimano Deore M6100 12V
Wheels
Rims
DT Swiss H-1900 35 Hybrid MS TLR
Tires
Hutchinson Griffus TLR Sideskin 29x2.50
Brakes
Brakes
SRAM DB8 CL 200/180
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 760mm 10mm Rise
Headset
Ritchey Pro Integrada Tapered 1.5
Seat
Saddle
San Marco GND Dynamic
Seatpost
Fox Transfer Factory Dropper 125mm 30.9
Motor & Battery

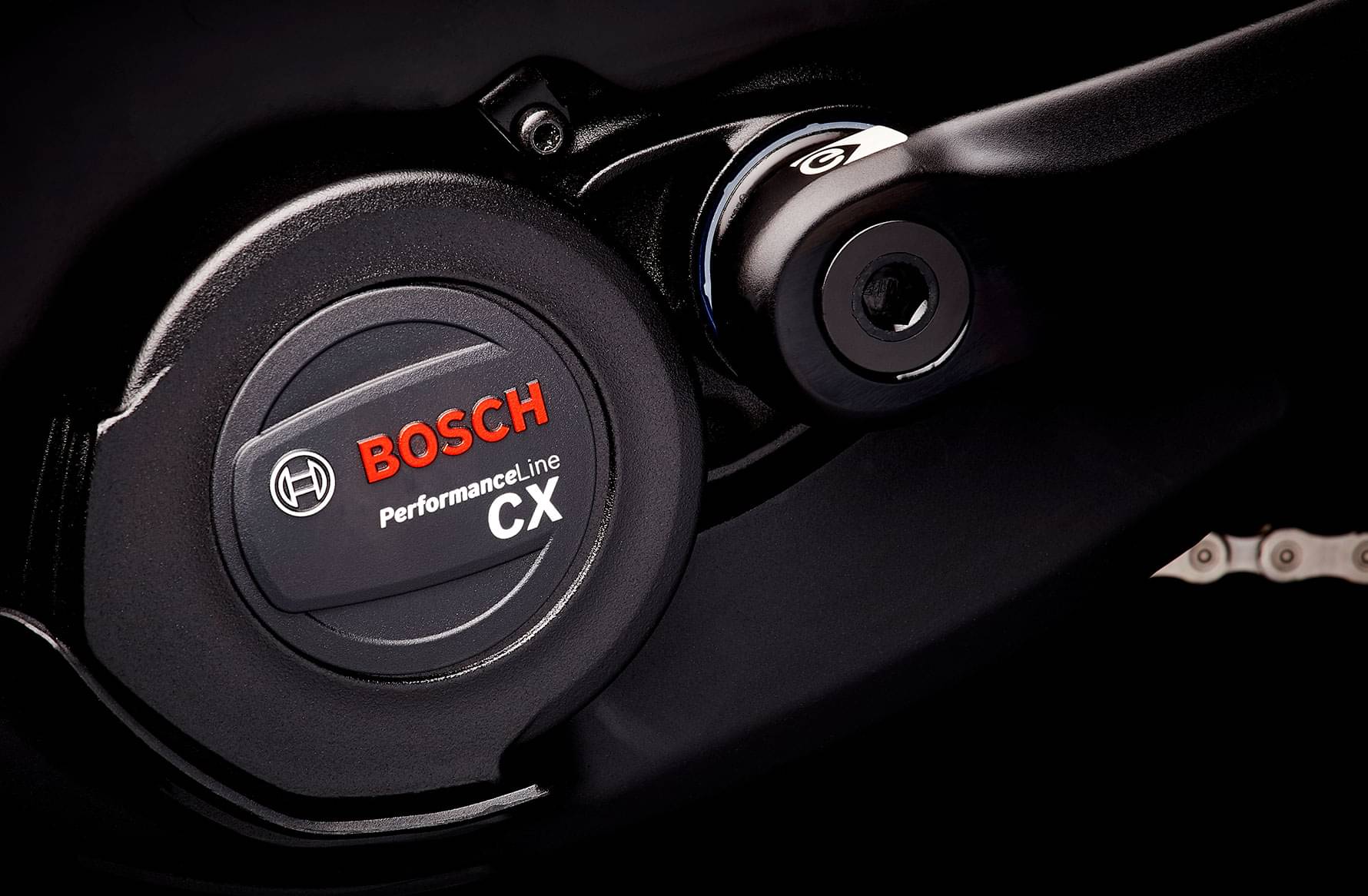

Motor
Bosch Performance Line CX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 736 mm | 767 mm | 798 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 106 mm | 106 mm |
| Stack | 622 mm | 635 mm | 649 mm |
| Reach | 431 mm | 456 mm | 481 mm |
| Top Tube Length | 596 mm | 624 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1197 mm | 1228 mm | 1259 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

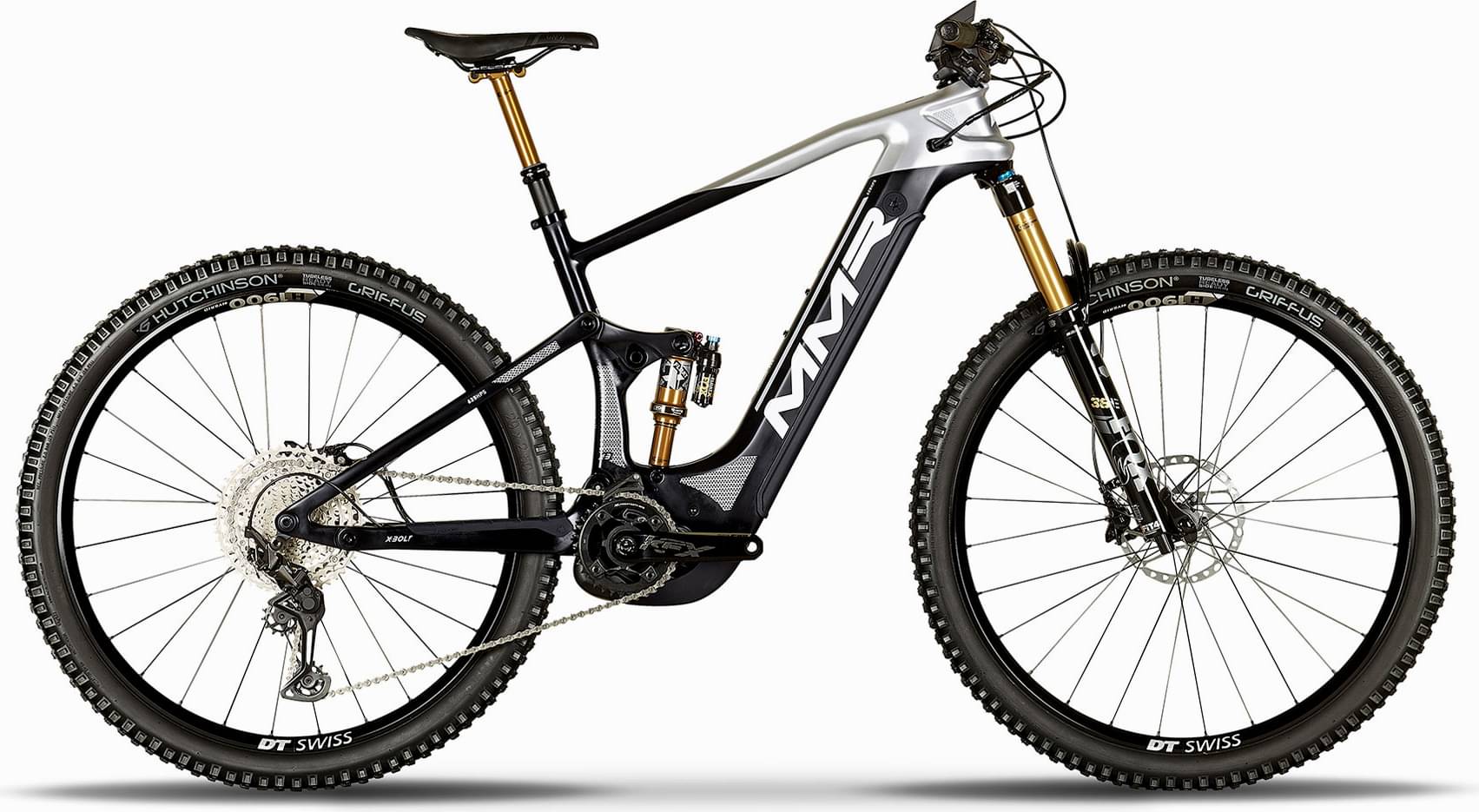

Model Overview
X-BOLT 140 00 is a Mmr E X Bolt model. MMR released 17 e-bikes variations of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Model range prices
MMR X-Bolt 140 90 2023 is the most economical model, with a starting price of 4331$. MMR X-BOLT 140 00 2023 on the other hand costs 7325$, and is the most expensive model.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Trail e-bikes average price
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
This e-bike was released in 2023 and its price was 7325$. Comparing the average cost of a Trail e-bike to this one, you will see that X-BOLT 140 00 price is 117.68% more expensive.

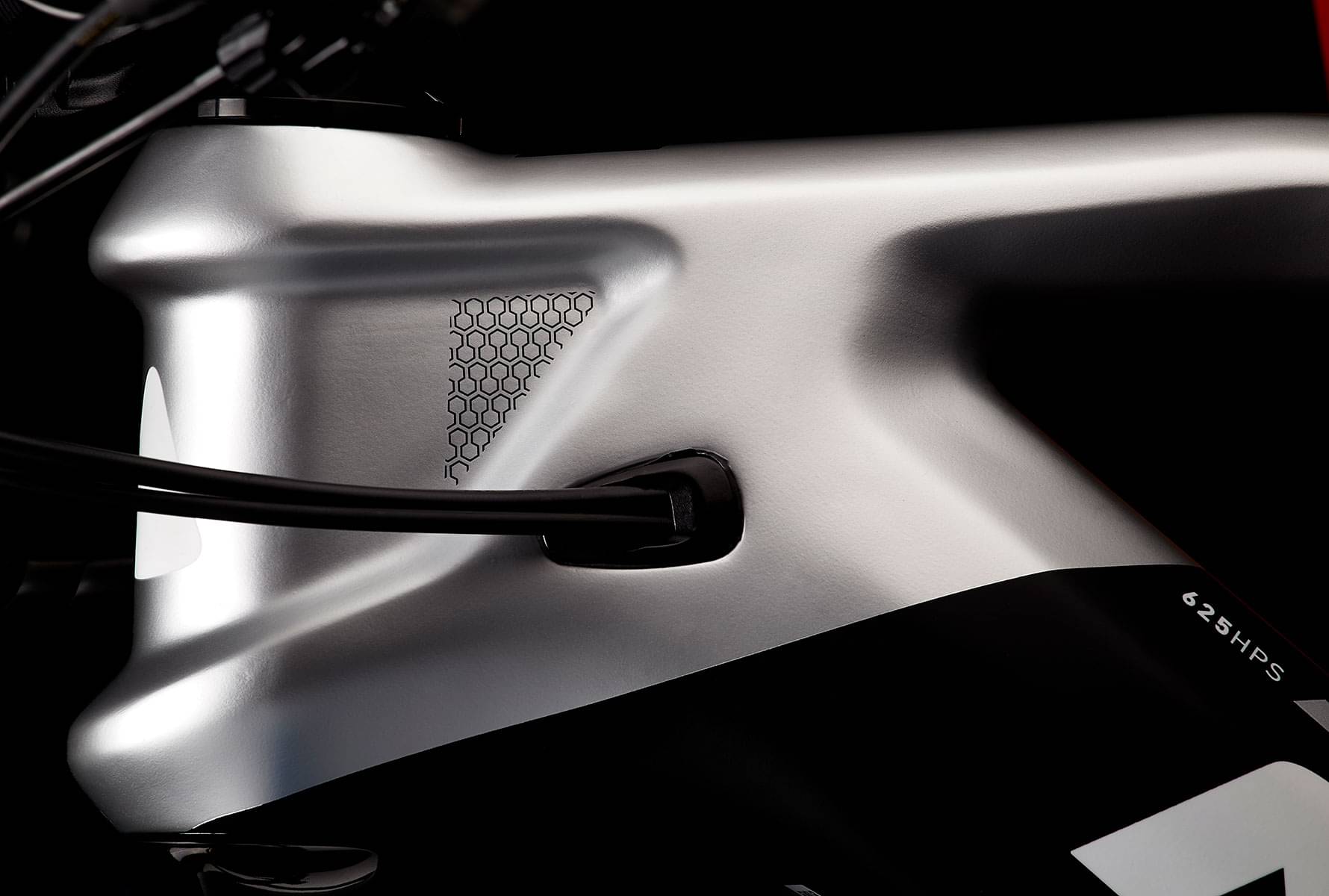

Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
X-BOLT 140 00 components
Fork
MMR X-BOLT 140 00 2023 e-bike is equipped with the Fox Factory Float 36 fork, and has 140mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Rear Shock
From the factory, it comes with the Fox Float X Factory 140 E-bike rear shock model, which has a travel of 140mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the X-BOLT 140 00 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
For your safety, it is important to have quality breaks on your bike. MMR X-BOLT 140 00 has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
MMR X-BOLT 140 00 includes a dropper post. Therefore, climbing or descending will be a breeze.
