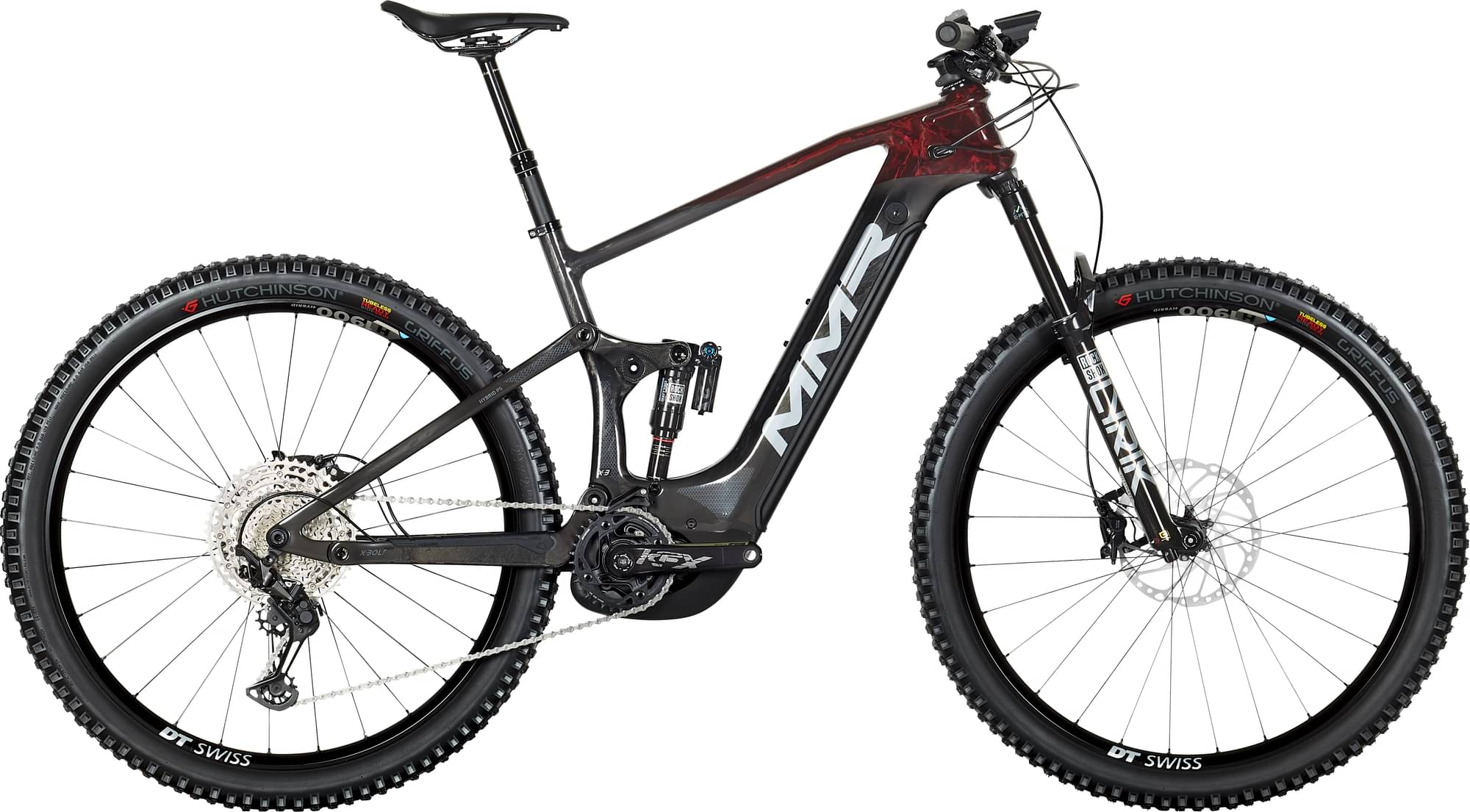

Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox 35 Gold RL
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Power Tube 625 -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several moulds. TA 12mm. Internal Cable Routing. Boost. PostMount. Full Integrated Battery. Head tube 1.5 Tapered
Suspension Fork
RockShox Silver Air 35 Crown 29 140mm
Rear Shock
RockShox Deluxe Select, E-Bike 140
Drivetrain
Rear Derailleur
Shimano Deore M6100 SGS 12V
Cassette
Shimano Deore M6100 10/51 12V
Crank
FSA Alloy Forged 34T
Chain
Shimano Deore M6100 12V
Wheels
Rims
XCR-9800 Hybrid MT400 / MT510B Boost CL MS
Tires
Hutchinson Griffus 29 2.50 TL SideSkin
Brakes
Brakes
Shimano MT-420 200/180
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Turbine R35 800mm
Seat
Saddle
San Marco GND Dynamic
Seatpost
Race Face Affect R 125mm
Motor & Battery
Motor
Bosch Performance Line CX Smart System
Battery
Bosch Power Tube 625
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.449 mm | 1.398 mm | 1.354 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 736 mm | 767 mm | 798 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 106 mm | 106 mm |
| Stack | 616 mm | 629 mm | 643 mm |
| Reach | 425 mm | 450 mm | 475 mm |
| Top Tube Length | 590 mm | 618 mm | 647 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 457 mm | 457 mm | 457 mm |
| Wheelbase | 1191 mm | 1222 mm | 1253 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |
About this model
X-Bolt 140 70 belongs to the Mmr E X Bolt model. 26 e-bikes variations carry this model name so far. You can easily view all of the Mmr E X Bolt e-bikes models from 2024, here.
Model range prices
MMR X-Bolt 140 70 2024 is the most economical model, with a starting price of 5929$. MMR X-Bolt 140 10 2024 on the other hand costs 7835$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
According to our math, the average price for a trustworthy Trail e-bike is 3365$. However, even if your budget is less than the average, you might still be able to get a top-quality Trail e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Furthermore, this bike was made available in 2024 for 5929$. Doing a quick comparison, we notice that X-Bolt 140 70 price is 76.2% more expensive than the average cost of a Trail e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
X-Bolt 140 70 components
Fork
MMR X-Bolt 140 70 2024 e-bike is equipped with the RockShox 35 Gold RL fork, and has 140mm travel. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select, with a travel distance of 140mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
When leaving the production line, the X-Bolt 140 70 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. MMR X-Bolt 140 70 has Hydraulic Disc brakes installed. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
X-Bolt 140 70 comes in 3 sizes, that range from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, it won’t take much to find one that’s right for you.
