Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 140mm -
Travel Rear 140mm -
Fork RockShox 35 Silver
-
Groupset Deore, FSA -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 170cm
MD
168cm - 179cm
LG
176cm - 187cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

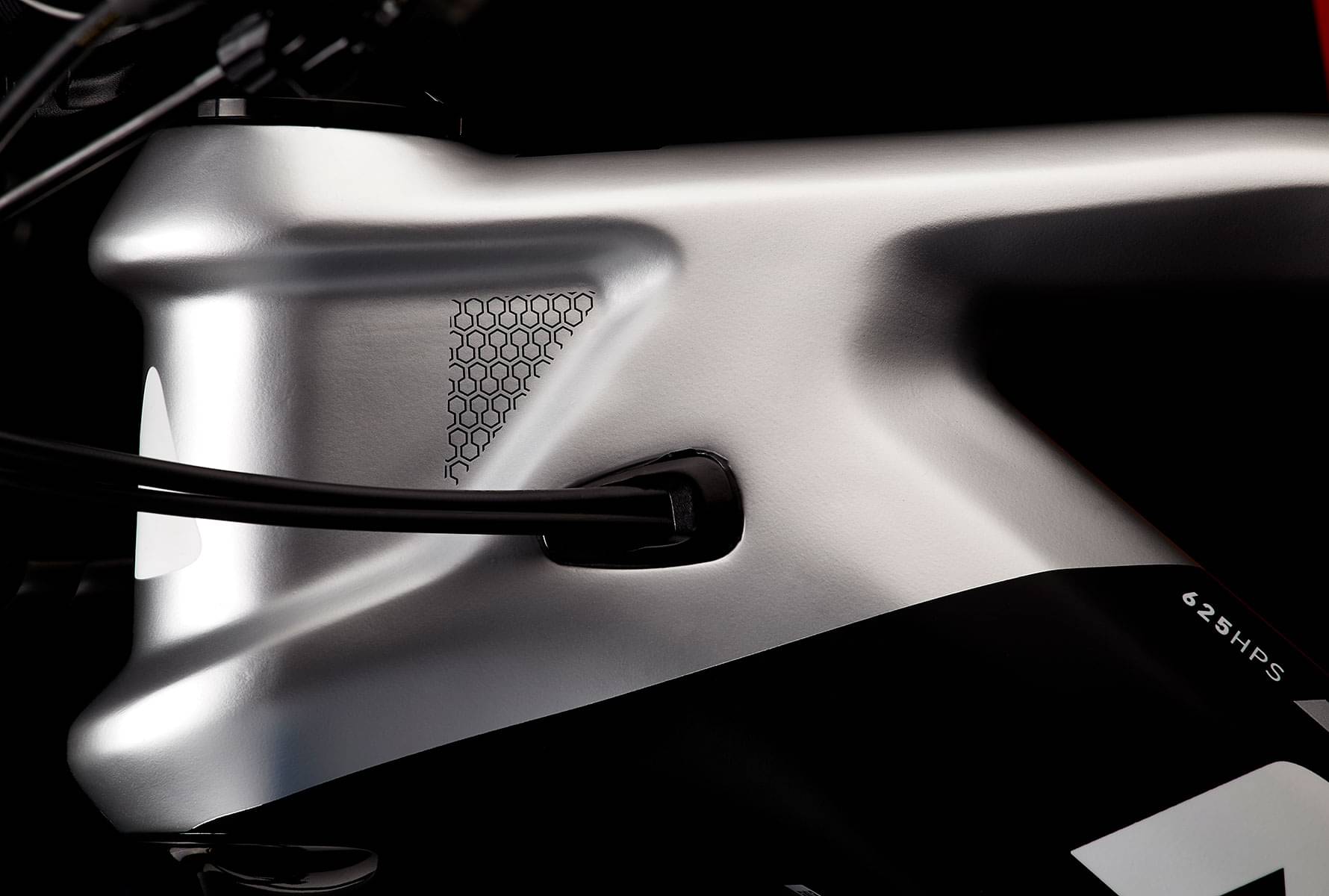

X-Bolt - G2 Carbon Concept Frame. Intermediate modulus carbon fiber. Several molds. TA 12mm. Internal Cable Routing. Boost. Post Mount. Full Integrated Battery. Head tube 1.5 Tapered.
Suspension Fork
Rock Shox 35 Silver Air Crown 15 Boost. E-bike. Travel 140mm. Tapered.
Rear Shock
Rock Shox Deluxe Select R 140 E-bike
Drivetrain
Shift Levers
Shimano Deore M6100 12V
Cassette

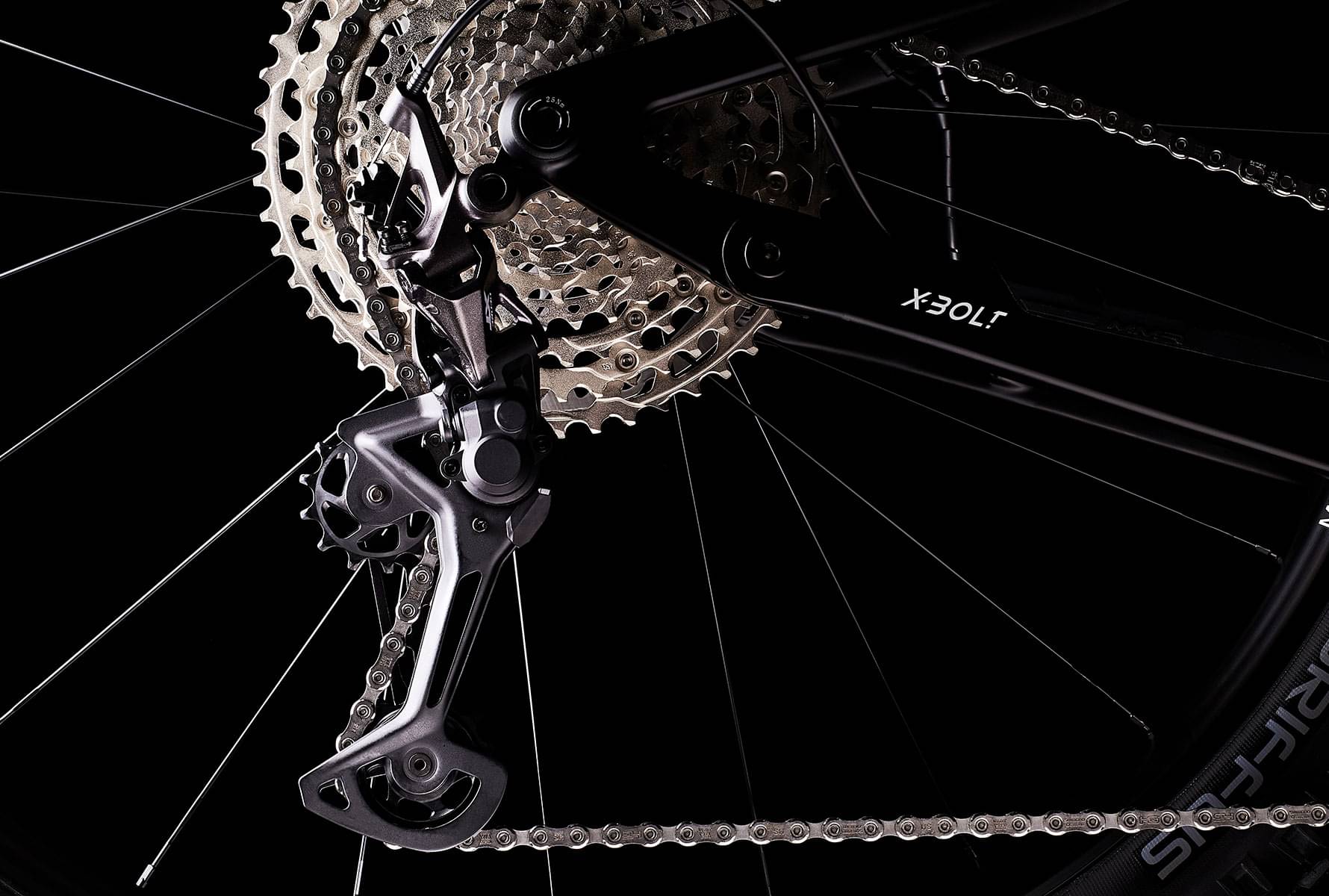

Sun Race 12V 11-51
Crank
Fsa Forged E-bike 34
Chain
Shimano Deore M6100 12V
Wheels
Rims
Shimano MT-500 CL HG
Tires
Hutchinson Griffus TLR Sideskin 29x2.50
Brakes
Brakes
Shimano MT-400 203/180
Cockpit
Stem
Race Face Ride 35
Handlebar
Race Face Ride 35 760mm 10mm Rise
Headset
Ritchey Pro Integrada Tapered 1.5
Seat
Saddle
San Marco GND Dynamic
Seatpost
Race Face Aeffect R Dropper 125mm 30.9
Motor & Battery
Motor

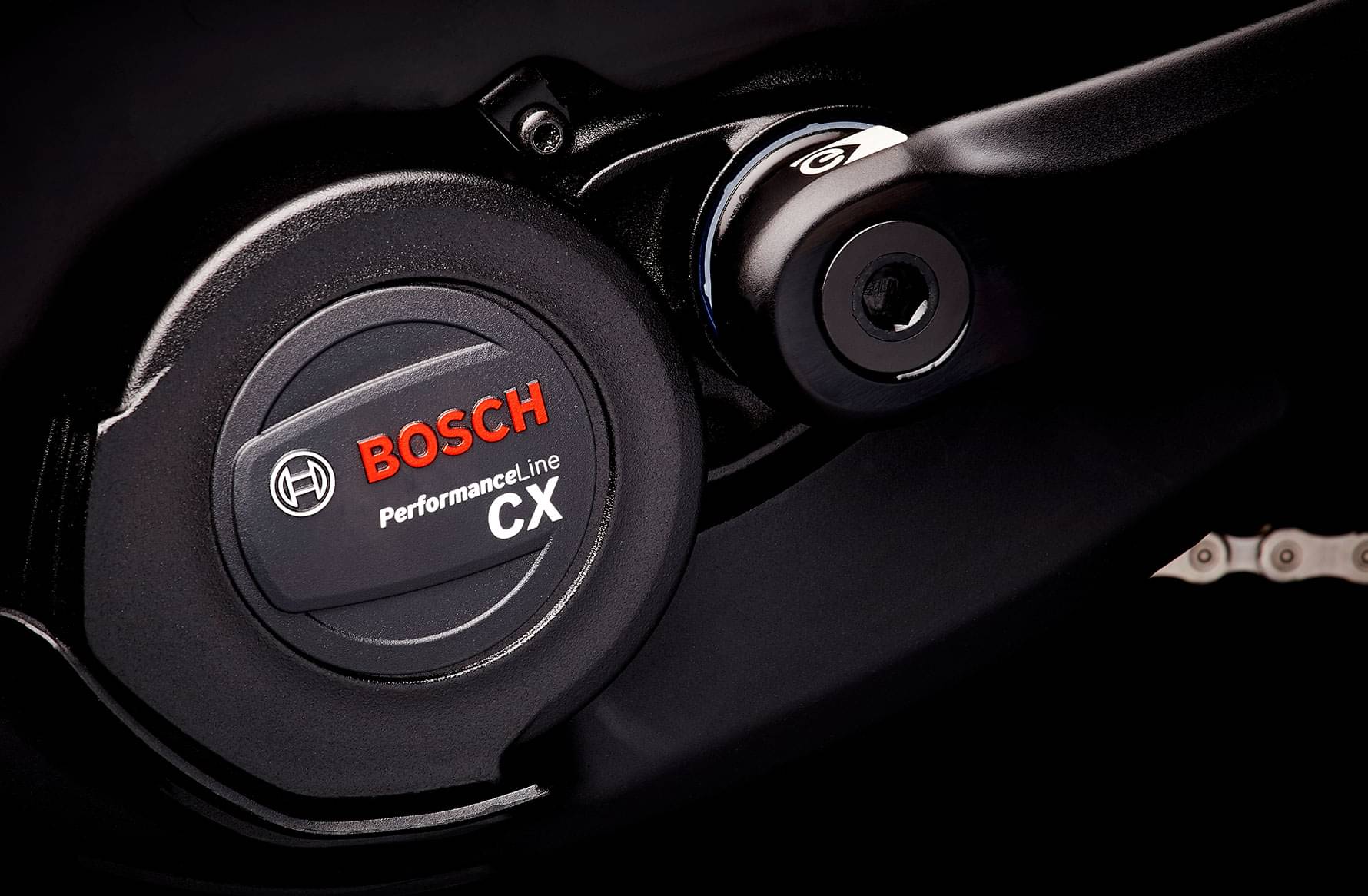

Bosch Performance Line CX
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG |
|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.39 mm | 1.35 mm |
| Bottom Bracket Height | 344 mm | 344 mm | 344 mm |
| Front Center | 736 mm | 767 mm | 798 mm |
| Rake | 51 mm | 51 mm | 51 mm |
| Trail | 106 mm | 106 mm | 106 mm |
| Stack | 622 mm | 635 mm | 649 mm |
| Reach | 431 mm | 456 mm | 481 mm |
| Top Tube Length | 596 mm | 624 mm | 653 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 406 mm | 457 mm | 508 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 110 mm | 125 mm | 140 mm |
| Chainstay Length | 463 mm | 463 mm | 463 mm |
| Wheelbase | 1197 mm | 1228 mm | 1259 mm |
| Bottom Bracket Drop | 30 mm | 30 mm | 30 mm |
| Wheels | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 176 cm |
| Rider Max Height | 170 cm | 179 cm | 187 cm |

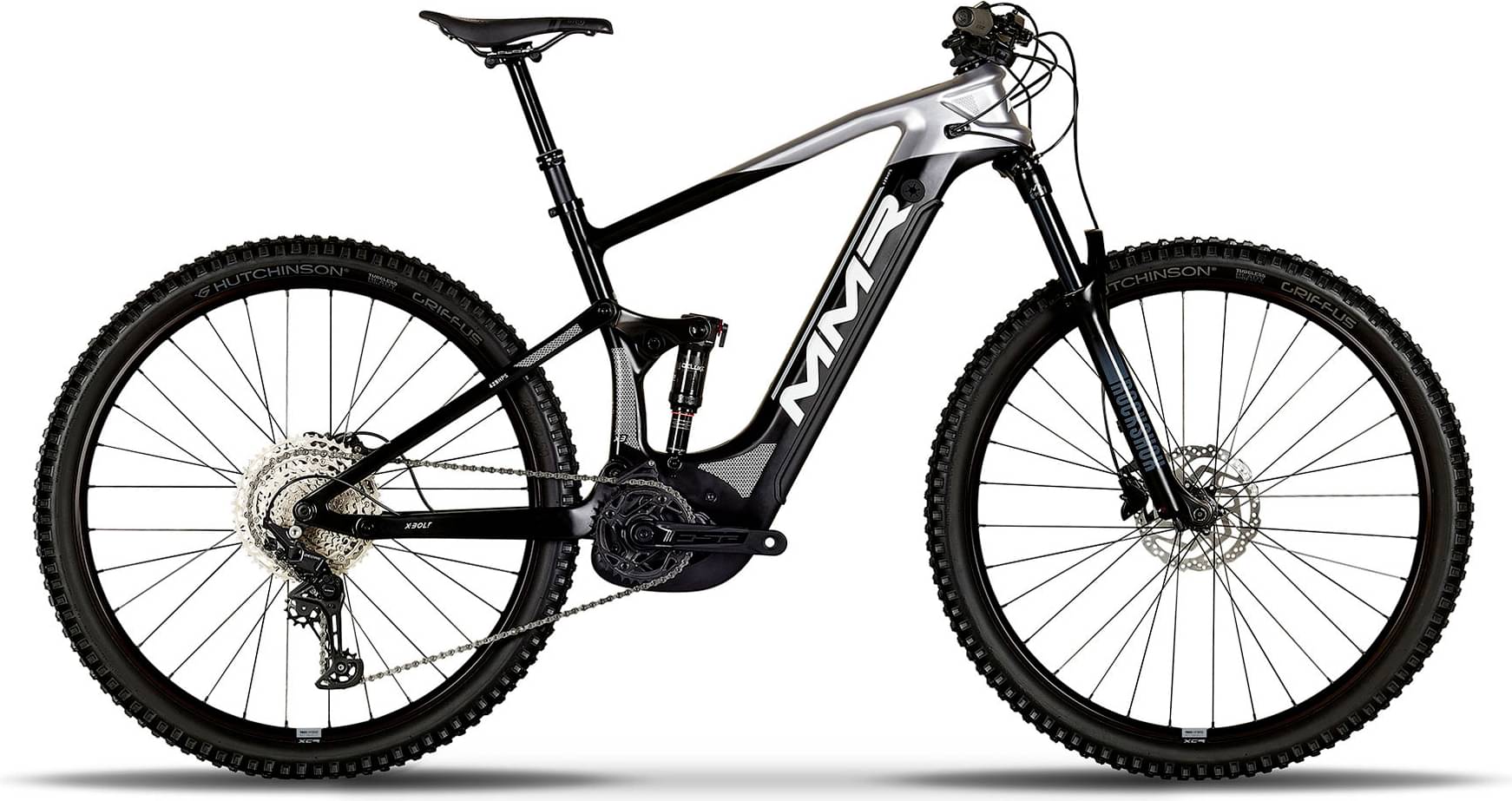

Model Overview
X-BOLT 140 90 is a Mmr E X Bolt model. MMR launched 17 e-bikes of this model so far. You can get a glimpse at all models from 2022, by clicking on this link.
Model range prices
MMR X-BOLT 120 30 2022 is the most economical model, with a starting price of 5096$. MMR X-BOLT 140 00 2022 on the other hand costs 7007$, and is the most expensive model.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Trail e-bikes
According to our calculations, the average cost of a Trail e-bike that is reliable is 3365$. However, even though the average price of a Trail e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Furthermore, if we have a quick look at this model’s cost, we can see that at its release date the price was 5414$. Comparing the average cost of a Trail e-bike to this one, you will see that X-BOLT 140 90 price is 60.89% higher.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
X-BOLT 140 90 components
Fork
The X-BOLT 140 90 comes factory-installed with the RockShox 35 Silver fork. This has a travel range of 140mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The X-BOLT 140 90 has a rear shock with a travel of 140mm. The model Rock Shox Deluxe Select R 140 E-bike is the one installed in this e-bike. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels
When leaving the production line, the X-BOLT 140 90 model has 29″ aluminum wheels. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
When you want to stop the bike in time, the brakes are vital. The X-BOLT 140 90 has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
This e-bike is available in 3 sizes. They vary from 158 cm – 187 cm (5.18 ft – 6.14 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
MMR X-BOLT 140 90 includes a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
