Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork Fox
-
Groupset XT, Shimano -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Zen - G2 Alloy Concept Lite Frame. Aluminum 6061 Hydroformed double butted. TA 12mm. Optimized, Cable Routing. Boost. PostMount. PressFit. Head tube Tapered 1.5
Suspension Fork
Fox Rhythm 15 Boost. Travel 100mm. Remote Lockout. Tapered
Drivetrain
Rear Derailleur
Shimano XT M8100 12V
Shift Levers
Shimano XT M8100 12V
Cassette
Shimano Deore M6100 12V 10-51
Crank
Shimano MT-5101 32T
Chain
Shimano Deore M6100 12V
Wheels
Rims
XCR 9800
Tires
Hutchinson Cobra 29x2.10
Brakes
Brakes
Shimano XT M8100 160/160
Cockpit
Stem
Ritchey Comp 4 Axis
Handlebar
Ritchey Comp 2X Dual Position 9º Sweep 720 mm
Grips
MMR Double Density Ultragrip
Headset
Ritchey Logic Press Fit Tapered
Seat
Saddle
Selle Italia Model
Seatpost
Ritchey Comp Zero Double Fix 31.6
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.51 mm | 1.47 mm | 1.44 mm | 1.4 mm |
| Bottom Bracket Height | 314 mm | 314 mm | 314 mm | 314 mm |
| Front Center | 663 mm | 685 mm | 707 mm | 728 mm |
| Rake | 51 mm | 51 mm | 51 mm | 51 mm |
| Trail | 85 mm | 85 mm | 85 mm | 85 mm |
| Stack | 599 mm | 608 mm | 621 mm | 629 mm |
| Reach | 396 mm | 415 mm | 432 mm | 450 mm |
| Top Tube Length | 567 mm | 589 mm | 609 mm | 630 mm |
| Seat Tube Angle | 74.2 ° | 74.2 ° | 74.2 ° | 74.2 ° |
| Seat Tube Length | 394 mm | 432 mm | 483 mm | 533 mm |
| Head Tube Angle | 69.5 ° | 69.5 ° | 69.5 ° | 69.5 ° |
| Head Tube Length | 95 mm | 105 mm | 118 mm | 127 mm |
| Chainstay Length | 439 mm | 439 mm | 439 mm | 439 mm |
| Wheelbase | 1095 mm | 1117 mm | 1139 mm | 1160 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |

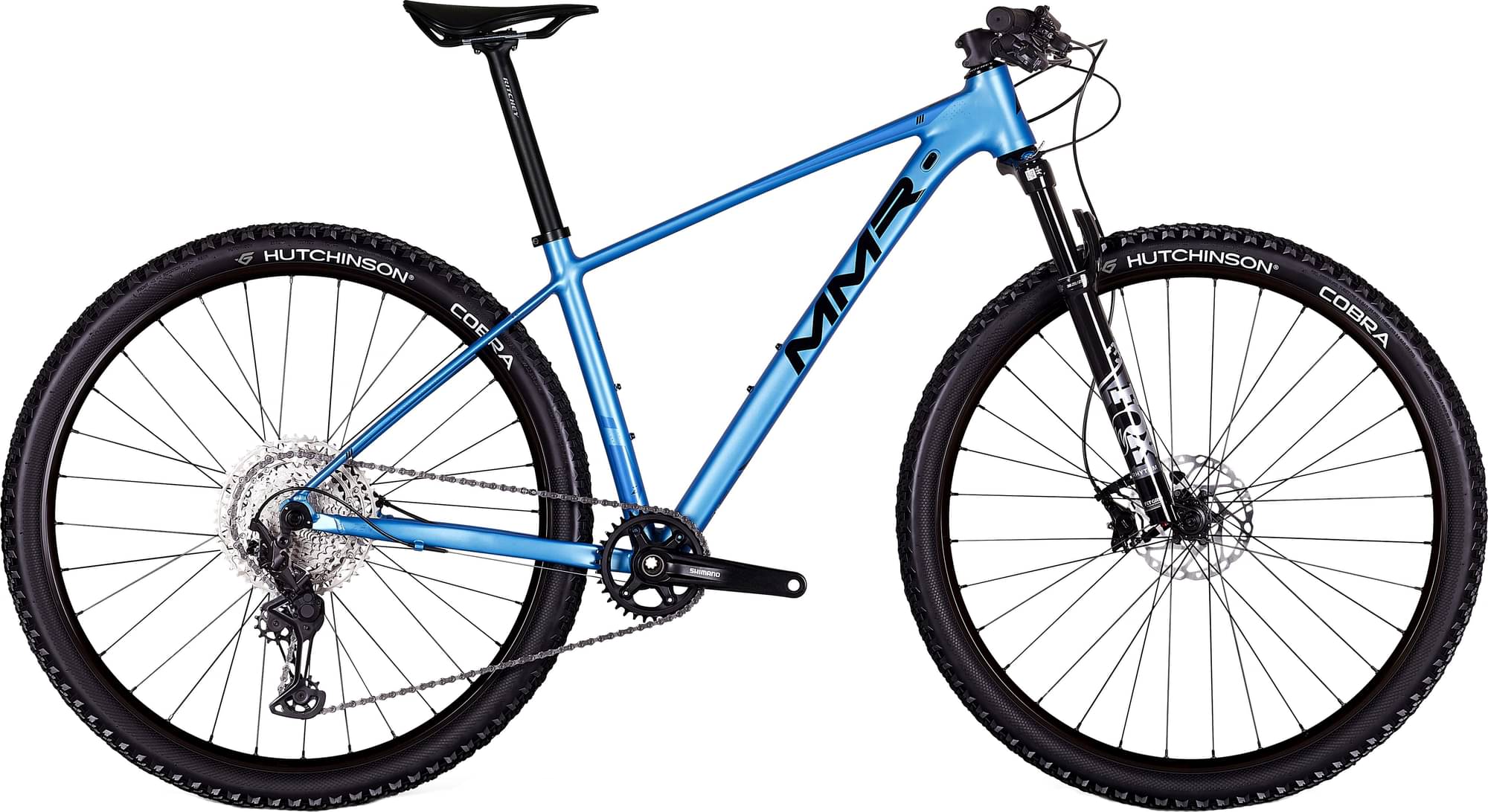

Model Overview
Zen is part of the Mmr Zen model. 9 bikes variations carry this model name so far. Take a sneak peek at all Mmr Zen bikes models from 2023, by clicking here.
Model range prices
MMR Zen 30 2023 is the cheapest bike model and costs 1672$. MMR ZEN 00 2023 is the most expensive one and costs 1964$.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your bike, always do some components analysis and read reviews.
Furthermore, this bike was made available in 2023 for 1964$. Comparing the average cost of a Crosscountry bike to this one, you will see that Zen price is 3.1% more expensive.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
The fork installed on this bike is the Fox model. The travel on this model is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
As for the wheels, MMR Zen 2023, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. MMR Zen has Hydraulic Disc brakes installed. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
Zen comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
