Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork RockShox 35 Silver
-
Groupset SX Eagle, Race Face -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 625Wh -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chaser 6061 Alloy Stealth Evo, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers, shock mudguard
Suspension Fork
RockShox 35 Silver TK 29, 160mm, TurnKey, Solo Air, tapered steerer tube, Boost 15x110mm axle, 35mm steel stanchions, 44mm offset. Settings: compression adjustment at low-speed to lock, rebound, air preload
Rear Shock
RockShox Deluxe Select R DebonAir, 205x65mm. Settings: Low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Drivetrain
Rear Derailleur
SRAM SX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift Levers
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1, single click
Crank
Race Face Aeffect ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, steel, narrow-wide, 104 BCD
Chain
SRAM SX Eagle, 12s, Powerlock
Wheels
Front Hub
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear Hub
Formula EHL148 Boost 12x148mm, sealed bearings, IS 6 bolts
Rims
MDK-HP1 29, 30mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Tires
Front: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead, Rear: Maxxis Rekon 29x2.6, tubeless ready, dual compound, EXO protection, 60TPI, folding bead
Brakes
Brakes
Front: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads, Rear: SRAM DB8, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers
SRAM DB8, tool reach adjust
Cockpit
Stem
Onoff Sulfur FG 30mm 0º, 6061 forged alloy, 31.8mm barbore
Handlebar
Onoff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on, 135mm
Headset
Onoff Saturn tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
MDK ebike black
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Motor & Battery
Motor
Bosch Performance Line CX (25km/h) Smart System
Battery
Bosch Powertube 625Wh
Fit data

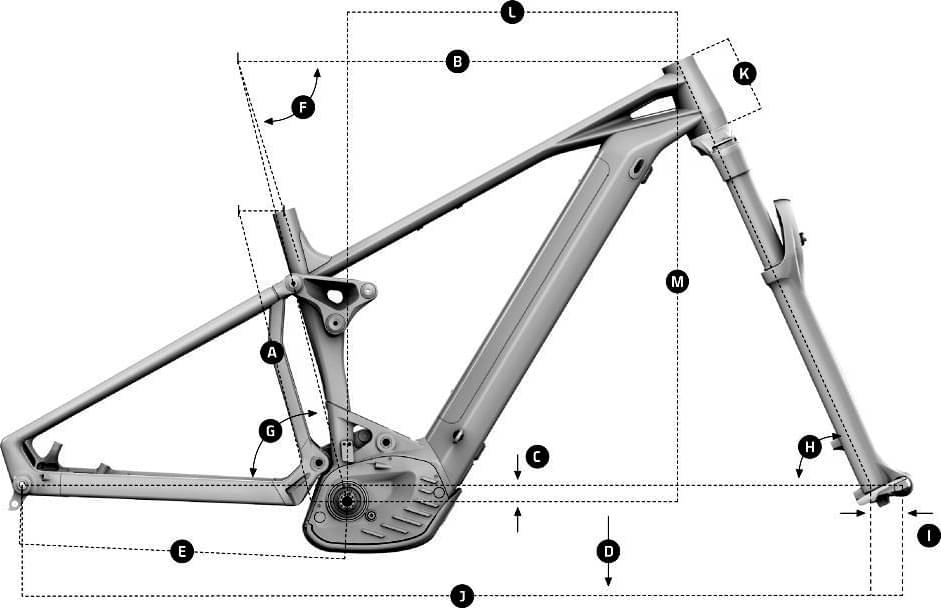

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 771 mm | 791 mm | 811 mm | 831 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122 mm | 122 mm | 130 mm | 130 mm |
| Stack | 619 mm | 619 mm | 637 mm | 637 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1222 mm | 1242 mm | 1262 mm | 1282 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CHASER belongs to the Mondraker E Chaser model. Mondraker launched 10 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. In conclusion, always check e-bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
With a weight of 25.2 kg (55.56 lbs), Mondraker e-bike is a bit heavier than average. In other words, this model is 7.6% heavier than the average Enduro e-bike.
Internal Cable Routing
This bike has an internal cable routing. As a result, this helps to preserve the bike’s cables. No more cables around your bike.
Overview of components
Fork
This e-bike has the RockShox 35 Silver fork installed. The fork’s travel is 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Fork material
When it comes to the fork, this e-bike has a steel one, which tends to be more flexible than carbon forks in general. However, a carbon fork is considerably lighter.
Rear Shock
The shock that’s installed on this e-bike is RockShox Deluxe Select R DebonAir, with a travel distance of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
The wheels on CHASER are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Mondraker CHASER comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
