Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Aluminum -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Silver TK
-
Groupset SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
RockShox Judy Silver TK, TurnKey damper, Solo Air spring, PopLock 2-position remote compression lockout, rebound adjust, 46mm offset, 9mm axle
Rear Shock
N/A
Drivetrain
Rear Derailleur
SRAM SX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION
Front Derailleur
None
Shift Levers
SRAM SX Eagle, 12-speed, Trigger, X-ACTUATION
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
SRAM SX Eagle DUB, 170mm length (SM), 175mm length (MD/LG/XL)
Bottom Bracket
SRAM DUB, sealed bearings, 73mm BSA threaded
Chain
SRAM SX Eagle, 12-speed, PowerLock
Chain Guide
None
Pedals
None
Wheels
Front Hub
Front: Formula DC20LW, cup and cone bearings, 32 hole, 6-bolt rotor mount, 9mm axle, Rear: Formula MST148S-4SB, sealed bearings, 32 hole, 6-bolt rotor mount, 148x12mm Boost, HG driver
Rear Hub
Front: Formula DC20LW, cup and cone bearings, 32 hole, 6-bolt rotor mount, 9mm axle, Rear: Formula MST148S-4SB, sealed bearings, 32 hole, 6-bolt rotor mount, 148x12mm Boost, HG driver
Rims
MDK-XP1 TLR, 25mm internal width, tubeless ready, 32 hole
Spokes
CN round stainless steel
Tires
Maxxis Ikon, 60 TPI, wire bead, 29" x 2.2"
Brakes
Brakes
SRAM Level, 2-piston, SRAM CenterLine 6-bolt 160mm rotors, steel-backed organic pads
Brake Levers
SRAM Level, lever pivot bushings, tooled reach adjust
Cockpit
Stem
ONOFF Sulfur, 6061-T6 alloy, +/-7° rise, 31.8mm bar clamp, Length: 60mm (SM/MD), 80mm (LG), 90mm (XL)
Handlebar
ONOFF Sulfur 0.2, double-butted 6061 alloy, 4.8mm rise, 740mm width, 9° backsweep, 0° upsweep, 31.8mm clamp diameter
Grips
ONOFF Twin, 135mm length, single lock-on
Headset
ONOFF Saturn, ACB sealed bearings
Seat
Saddle
Mondraker XC Series, steel rails
Seatpost
ONOFF Sulfur 0-R, 3D-forged 6061-T6 alloy, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.53 mm | 1.46 mm | 1.42 mm | 1.4 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Stack | 613 mm | 613 mm | 623 mm | 637 mm |
| Reach | 401 mm | 421 mm | 439 mm | 455 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 100 mm | 100 mm | 110 mm | 125 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1082 mm | 1102 mm | 1122 mm | 1143 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

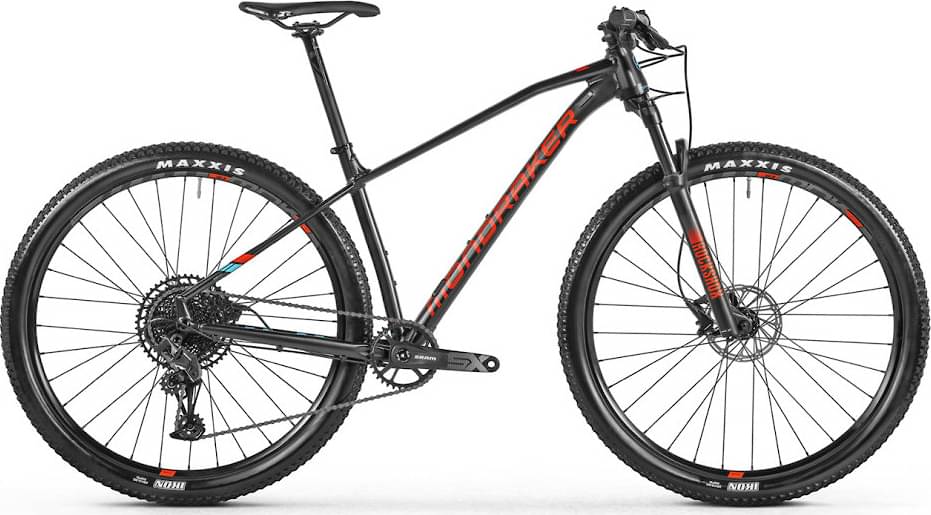

Chrono completes the Mondraker Chrono model. There are 24 bikes that carry this model name. You can get a glimpse at all models from 2021, by clicking on this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Crosscountry bikes
According to our math, the average price for a trustworthy Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
On a deeper look, we notice that the average weight of a Crosscountry bike is 12.4 kg (27.34 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Chrono weighs 12.7 kg (28 lbs) and is slightly heavier than the average. In short, the average Crosscountry bike weight is 2.42% lower than this one.
Overview of components
Fork
The RockShox Judy Silver TK is included from the factory. It has a travel distance of 100mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Wheels
When leaving the production line, the Chrono model has 29″ aluminum wheels. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Chrono has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
