Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox Judy Gold RL
-
Groupset NX Eagle, SX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, Comfort Flat chainstays (Flatstays) design
Suspension Fork
RockShox Judy Gold RL 29, 100mm, Motion control, Solo Air, tapered steerer tube, Boost 15x110mm axle, 30mm aluminum stanchions, offset 51mm. Settings: Onelock 2 pos remote compression (open/lock), rebound, air preload
Drivetrain
Rear Derailleur
SRAM NX Eagle, Type 3 roller bearing clutch, cage lock, long cage, 1x12s, X-actuation 1:1
Shift Levers
SRAM Trigger SX Eagle, 12s, X-Actuation 1:1
Crank
SRAM SX Eagle, Boost, DUB axle, Direct Mount chain ring, S size: 170mm, M/L/XL size: 175mm, Rings: 34T, steel, X-Sync 2
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM SX Eagle, 12s, Powerlock
Wheels
Front Hub
Formula DC711, Boost 15x110mm, sealed bearings, IS 6 bolts
Rear Hub
Formula MST148S-4SB, Boost 12x148mm, sealed bearings, IS 6 bolts
Rims
MDK-XP1 29 TLR, 25mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Tires
Front: Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead, Rear: Maxxis Ikon 29x2.20, 3CMaxx Speed compound, tubeless ready, 120TPI, folding bead
Brakes
Brakes
Front: SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Level, tooled reach adjust, lever pivot bushings
Cockpit
Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: size S: 60mm, size M: 70mm, size L: 80mm, size XL: 90mm
Handlebar
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on, 135mm
Headset
Onoff Titan tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41.8x30.5x8x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
Mondraker XC Series, steel rail
Seatpost
Onoff Sulfur 0-R, 6061 T6 Alloy, 3D forged, diameter 27.2mm, length 400mm
Fit data

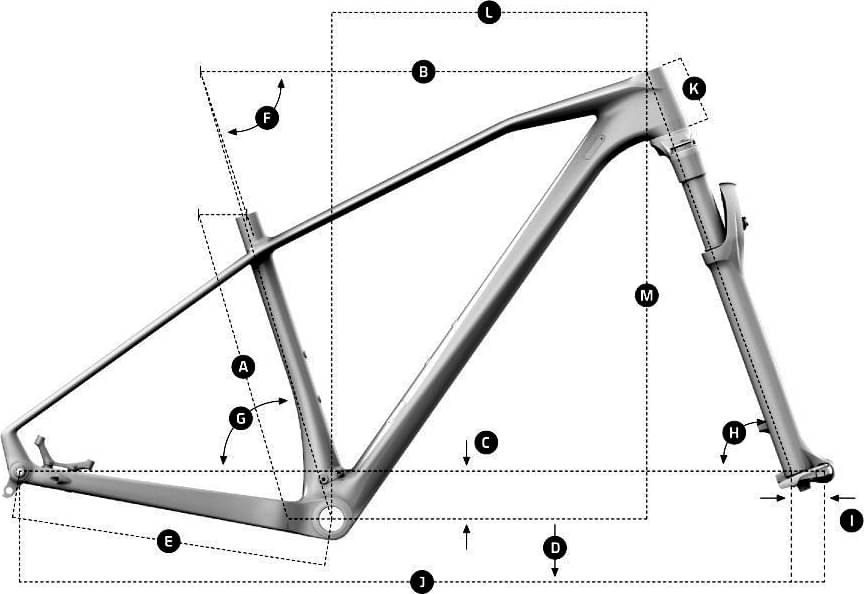

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.42 mm | 1.39 mm | 1.37 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 664 mm | 684 mm | 705 mm | 726 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 83 mm | 84 mm | 83 mm | 83 mm |
| Stack | 600 mm | 605 mm | 614 mm | 627 mm |
| Reach | 406 mm | 425 mm | 442 mm | 458 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1081 mm | 1101 mm | 1122 mm | 1143 mm |
| Bottom Bracket Drop | 65 mm | 65 mm | 65 mm | 65 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CHRONO CARBON completes the Mondraker Chrono model. Mondraker launched 24 bikes of this model so far. You can get a glimpse at all models from 2023, by clicking on this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Crosscountry bikes average price
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, even if your budget is less than the average, you might still be able to get a top-quality Crosscountry bike. In conclusion, always check bike reviews and their components before making a purchase to make sure you don’t overpay.
Average weight for Crosscountry bikes
Crosscountry bikes have an average weight of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
With a weight of 11.3 kg (24.91 lbs), Mondraker bike is a bit lighter than average. In conclusion, the average Crosscountry bike weighs 9.73% more than CHRONO CARBON.
Internal Cable Routing
It’s also important to mention the internal cable routing that this bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
This bike has the RockShox Judy Gold RL fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In short, you should always ensure you have a good fork when purchasing a bike.
Fork material
The fork on this bike is made out of aluminum, so there won’t be much extra weight added to the bike. However, they are not so stiff as carbon forks are.
Wheels
The wheels on CHRONO CARBON are the 29″ aluminum type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker CHRONO CARBON has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, your safety is in good hands.
Sizes
CHRONO CARBON comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
