Mondraker CHRONO CARBON DC R 2024
2024 Mountain
Estimate price |
3,746$
Weight | 12.1 kg
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 120mm -
Fork Fox Rhythm Float 32
-
Groupset GX Eagle, NX Eagle -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Chrono 29 Stealth full Carbon, XC Forward Geometry, 73mm BSA bottom bracket, tapered head tube, HHG Internal Cable routing, Boost 12x148mm rear axle, dedicated 1X drivetrain design, Flatmount brake compatible,
Suspension Fork
Fox 32 29 Float GRIP EVOL Rhythm, 120mm, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: remote 2pos Push-to-unlock, low-speed rebound, air preload
Drivetrain
Rear Derailleur
SRAM GX Eagle, Type 3 roller bearing clutch, cage lock, 1x12s, X-Actuation 1:1
Shift Levers
SRAM Trigger NX Eagle, 12s, X-Actuation 1:1
Crank
SRAM NX Eagle, 12s, Boost, DUB axle, Direct Mount chain ring, S size: 170mm M size: 175mm L size: 175mm XL size: 175mm, CL 55, Rings: 34T, steel, X-Sync 2
Bottom Bracket
SRAM DUB BSA, sealed bearings, 73mm
Chain
SRAM SX Eagle, 12s, Powerlock
Wheels
Front Hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear Hub
Mavic, Boost 12x148mm, ID360 Ratchet system, IS 6 bolts, HG freehub
Rims
Mavic CrossMax 29, 25mm internal width, welded rim, hookless, tubeless ready, 24 spokes
Spokes
Mavic straight-pull double butted, contactless lacing
Tires
Front: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead, Rear: Maxxis Ardent 29x2.40, Dual compound, EXO, tubeless ready, 60TPI, folding bead
Brakes
Brakes
Front: SRAM Level T, 2 piece caliper, Centerline 180mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Level T, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Level T, Direct Link actuation, tooled reach adjust, lever pivot bushings
Cockpit
Stem
MDK, 6061 T6 Alloy, 31.8mm barbore, rise: +/-5º, length: S size: 50mm, M size: 50mm, L size: 60mm, XL size: 70mm
Handlebar
Onoff Sulfur 0.2, double butted 6061 alloy, rise: 4.8mm, width: 760mm, 9º backsweep, 0º upsweep, 31.8mm barbore
Grips
Onoff Twin, 1lock-on, 135mm
Headset
Onoff internal IS52 1-1/2 head tube, ACB sealed bearings, top 51,8x40 45°x45°, bottom 51,8x40 36°x45°
Seat
Saddle
Mondraker MDK Series, SRX, steel rail
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, Universal lever, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 498x140-170mm
Fit data

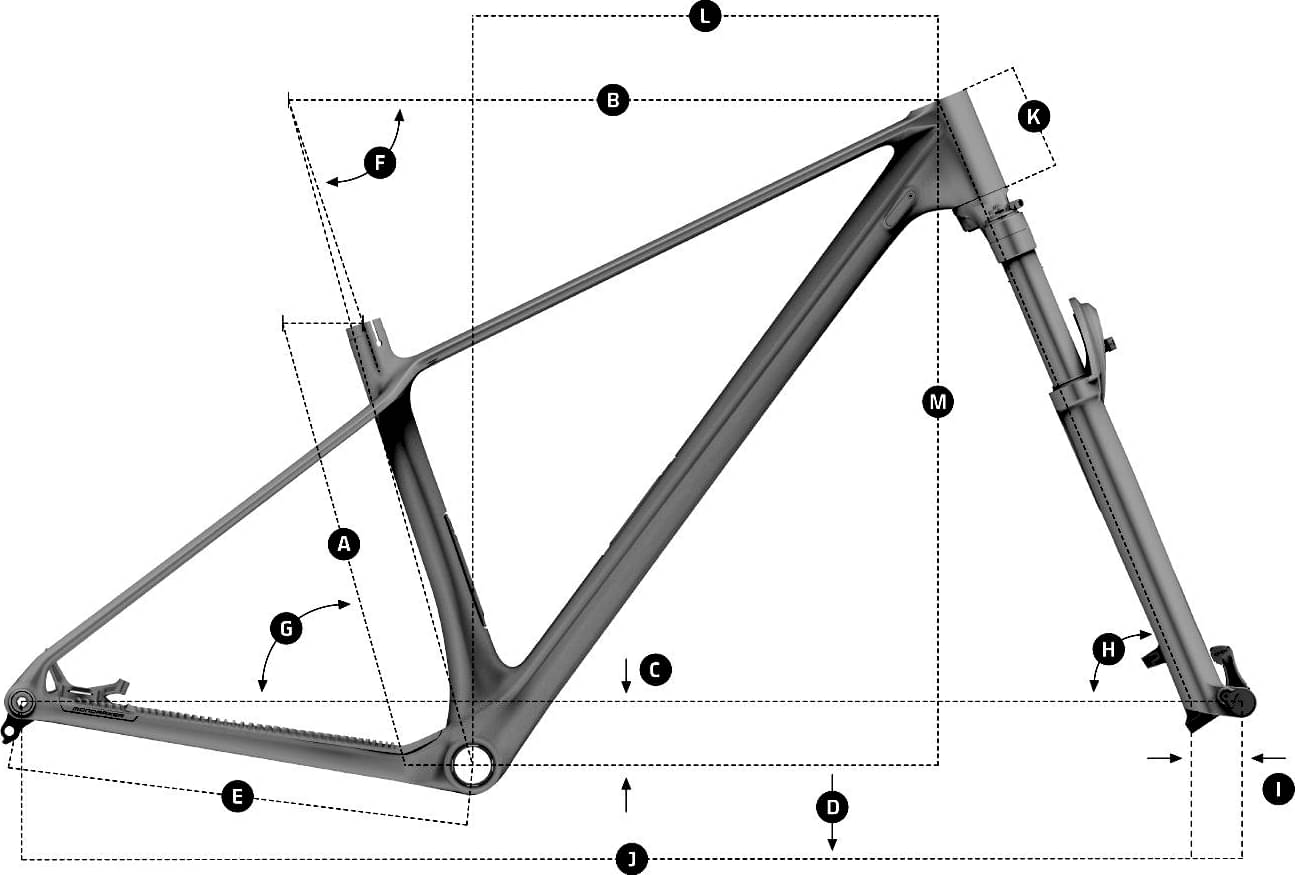

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.459 mm | 1.43 mm | 1.387 mm | 1.362 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Front Center | 707 mm | 726 mm | 750 mm | 769 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 107 mm | 107 mm | 107 mm | 107 mm |
| Stack | 620 mm | 629 mm | 638 mm | 647 mm |
| Reach | 425 mm | 440 mm | 460 mm | 475 mm |
| Top Tube Length | 597 mm | 614 mm | 640 mm | 655 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 395 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 67.5 ° | 67.5 ° | 67.5 ° | 67.5 ° |
| Head Tube Length | 90 mm | 100 mm | 110 mm | 120 mm |
| Chainstay Length | 430 mm | 430 mm | 430 mm | 430 mm |
| Wheelbase | 1130 mm | 1149 mm | 1173 mm | 1192 mm |
| Bottom Bracket Drop | 60 mm | 60 mm | 60 mm | 60 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CHRONO CARBON DC R is a Mondraker Chrono model. 27 bikes variations carry this model name so far. You can get a glimpse at all models from 2024, by clicking on this link.
Model range prices
The most economical model, the Mondraker CHRONO CARBON DC 2024 has a starting price of 2800$. Mondraker CHRONO CARBON DC RR 2024 on the other hand is the most expensive at 4383$.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Trail bikes average price
According to our calculations, the average cost of a Trail bike that is reliable is 2762$. However, you could also get a good Trail bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Furthermore, this bike was made available in 2024 for 3409$. Doing a quick comparison, we notice that CHRONO CARBON DC R price is 23.43% more expensive than the average cost of a Trail bike.
Trail bikes average weight
If we make a quick analysis of the average weight of a Trail bike, we get 12.98 kg (28.62 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
CHRONO CARBON DC R weighs 12.1 kg (26.68 lbs) and is a bit lighter than the average. In conclusion, the average Trail bike weighs 7.27% more than CHRONO CARBON DC R.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
Overview of components
Fork
Mondraker CHRONO CARBON DC R 2024 bike is equipped with the Fox Rhythm Float 32 fork, and has 120mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In short, you should always ensure you have a good fork when purchasing a bike.
Wheels size
The CHRONO CARBON DC R 2024 bike is equipped with 29″ aluminum wheels when leaving the factory. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The CHRONO CARBON DC R has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
This bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
Mondraker CHRONO CARBON DC R includes a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
