Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 29" -
Travel Front 100mm -
Fork RockShox SID SL Ultimate
-
Groupset XT, Deore -
Suspension Hardtail -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
RockShox SID SL Ultimate RL, Charger Race Day damper, DebonAir spring, OneLock 2-position remote compression lockout, low-speed rebound adjust, 44mm offset
Rear Shock
N/A
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SHADOW RD+, SGS cage
Front Derailleur
None
Shift Levers
Shimano Deore M6100, 12-speed, RAPIDFIRE PLUS
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth, HYPERGLIDE+
Crank
Shimano Deore XT M8100, HOLLOWTECH II, 170mm length (SM), 175mm length (MD/LG/XL)
Bottom Bracket
Shimano Deore XT M800, 73mm BSA threaded
Chain
Shimano Deore M6100, 12-speed, Quick-Link
Chain Guide
None
Pedals
None
Wheels
Front Hub
DT Swiss 370, 28 hole, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and MICRO SPLINE driver
Rear Hub
DT Swiss 370, 28 hole, 6-bolt rotor mounts, 110x15mm Boost front, 148x12mm Boost rear with 3-pawl freehub and MICRO SPLINE driver
Rims
DT Swiss X1900 Spline, 25mm internal width, sleeved aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Champion, straightpull
Tires
Maxxis Ikon, 3C MaxxSpeed, TR, 120 TPI, folding bead, 29" x 2.2"
Brakes
Brakes
SRAM Level T, 2-piston, SRAM CenterLine 6-bolt 160mm rotors, steel-backed organic pads
Brake Levers
SRAM Level T, Direct Link, lever pivot bushings, tooled reach adjust
Cockpit
Stem
MDK, 6061-T6 alloy, +/-5° rise, 31.8mm bar clamp, Length: 60mm (SM), 70mm (MD), 80mm (LG), 90mm (XL)
Handlebar
ONOFF Sulfur 0.2, double-butted 6061 alloy, 4.8mm rise, 740mm width, 9° backsweep, 0° upsweep, 31.8mm clamp diameter
Grips
ONOFF Desert, 135mm length, single lock-on
Headset
ONOFF Titan, ACB sealed bearings
Seat
Saddle
Mondraker XC Series, steel rails
Seatpost
ONOFF Sulfur 0-R, 3D-forged 6061-T6 alloy, 400mm length
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.48 mm | 1.42 mm | 1.39 mm | 1.37 mm |
| Bottom Bracket Height | 305 mm | 305 mm | 305 mm | 305 mm |
| Stack | 600 mm | 605 mm | 614 mm | 627 mm |
| Reach | 406 mm | 425 mm | 442 mm | 458 mm |
| Top Tube Length | 585 mm | 605 mm | 625 mm | 645 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 395 mm | 430 mm | 470 mm | 520 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 85 mm | 90 mm | 100 mm | 115 mm |
| Chainstay Length | 425 mm | 425 mm | 425 mm | 425 mm |
| Wheelbase | 1081 mm | 1101 mm | 1122 mm | 1143 mm |
| Bottom Bracket Drop | 69 mm | 69 mm | 69 mm | 69 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

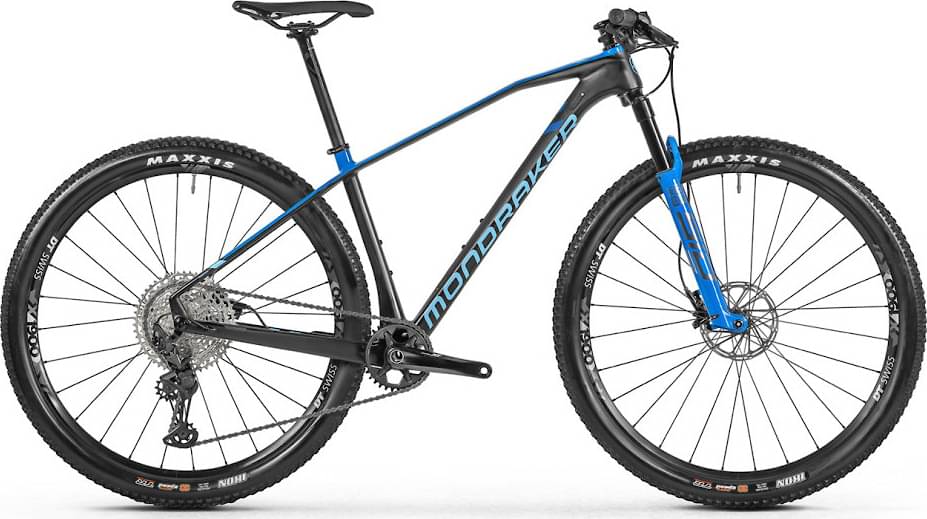

Chrono Carbon RR is part of the Mondraker Chrono model. Mondraker released 24 bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Your safety is a top priority so always wear a helmet when you ride your bike. Moreover, wear the right clothing. You want to be visible to other drivers, so avoid wearing dark clothing.
Average price for Crosscountry bikes
Our math shows that the average cost of a dependable Crosscountry bike is 1905$. However, you could also get a good Crosscountry bike even if you pay a lower amount than the average price. In short, before purchasing your ideal bike do some research about its components, and also check for reviews online.
Average weight for Crosscountry bikes
Crosscountry bikes weigh an average of 12.4 kg (27.34 lbs). An easier bike will give you a big advantage in climbs. However, a heavier bike can gain speed when you descend.
much lighter than average, Chrono Carbon RR has a weight of 10.2 kg (22.49 lbs). In short, the average Crosscountry bike weight is 21.57% higher than this one.
Chrono Carbon RR components
Fork
This bike has the RockShox SID SL Ultimate fork installed. The fork’s travel is 100mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Wheels size
When it comes to wheels, the Chrono Carbon RR bike is equipped with the 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
