Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 36
-
Groupset NX Eagle, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, internal -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 FLOAT Performance 29", EVOL, e-bike tuned, FIT, 15mm x 110mm axle, tapered steerer, 3-position compression with micro adjust, 44mm offset
Rear Shock
FOX FLOAT DPS Performance, 205mm x 65mm, 3-position compression lever, low-speed rebound, air preload, Trunnion top mount, 25mm x 10mm bottom bushings
Drivetrain
Rear Derailleur
SRAM NX Eagle, ROLLER BEARING CLUTCH, CAGE LOCK, 12-speed, X-ACTUATION
Front Derailleur
None
Shift Levers
SRAM NX Eagle, trigger, 12-speed, X-ACTUATION, single click
Cassette
SRAM PG-1230, 11-50 tooth, 12-speed
Crank
Race Face Aeffect, e-bike, 165mm
Chain
SRAM NX Eagle, 12-speed
Chain Guide
Top only
Pedals
None
Wheels
Front Hub
Front: DT Swiss 240, 15mm x 110mm, Rear: DT Swiss 240, 12mm x 148mm, 24Z ratchet system
Rear Hub
Front: DT Swiss 240, 15mm x 110mm, Rear: DT Swiss 240, 12mm x 148mm, 24Z ratchet system
Rims
DT Swiss H1900 SPLINE 29, 30mm internal width, tubeless ready, 28 spokes
Spokes
DT Swiss Hybrid, straight pull
Tires
Front: Maxxis Minion DHF 29" x 2.6", EXO+, TR, 60 TPI, 3C, MaxxTerra, folding bead, Rear: Maxxis Minion DHR II 29" x 2.6", EXO+, TR, 60 TPI, 3C, MaxxTerra, folding bead
Brakes
Brakes
SRAM G2 RSC, oversized 4-piston caliper, centerline 180mm 6-bolt one-piece rotors, steel-backed metal sintered pads
Brake Levers
SRAM G2 RSC
Cockpit
Stem
ONOFF Krypton FG, 30mm, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Krypton 1.0, double butted 6061 alloy, 780mm, 20mm rise, 9° backsweep, 5° upsweep, 31.8mm barbore
Grips
ONOFF Desert, lock-on, 135mm, sizes: S/M and L/XL
Headset
ACROS custom for 1.5" head tube, angular contact bearings 40mm x 52mm x 7mm, internal cable routing
Seat
Saddle
fi'zi:k Antares R7
Seatpost
ONOFF Pija dropper, internal routing, Travel: 125mm on S, 150mm on M/L, 170mm on XL
Motor & Battery
Motor
Bosch Performance CX, 4th generation
Battery
Bosch PowerTube, internal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Stack | 619 mm | 619 mm | 637 mm | 637 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1222 mm | 1242 mm | 1262 mm | 1282 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

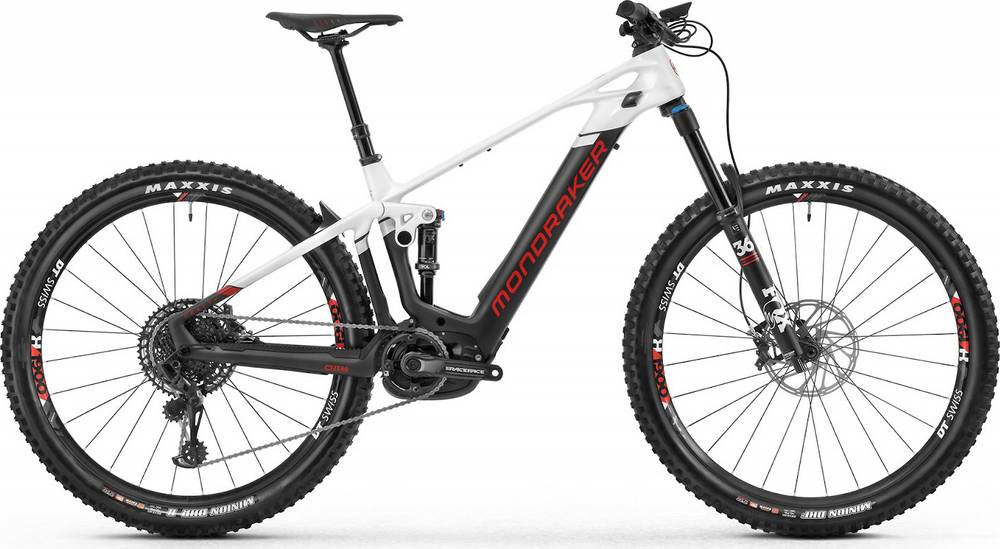

Crafty Carbon R is a Mondraker E Crafty model. Mondraker released 27 e-bikes variations of this model so far. You can easily view all of the Mondraker E Crafty e-bikes models from 2020, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Average price for Enduro e-bikes
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Enduro e-bikes average weight
Enduro e-bikes have an average weight of 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
a bit lighter than average, Crafty Carbon R has a weight of 21.8 kg (48.06 lbs). In conclusion, the average Enduro e-bike weighs 7.43% more than Crafty Carbon R.
Crafty Carbon R components
Fork
The Fox Performance Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX FLOAT DPS Performance model, with a travel of 150mm. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels size
The Crafty Carbon R 2020 e-bike is equipped with 29″ aluminum wheels when leaving the factory. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
Crafty Carbon R comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the Crafty Carbon R. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
