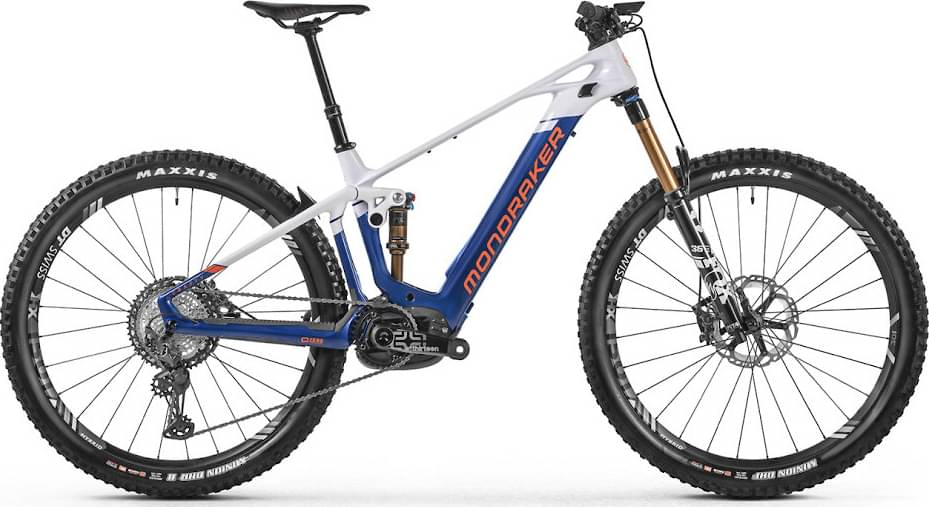

Mondraker Crafty Carbon RR 2021
2021 E-bike
Weight | 21.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XT, e*thirteen TRS Race -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube, integrated, non-removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX FLOAT 36 Factory, Kashima coating, EVOL, FIT4 damper, e-bike optimized, 3-position lever, micro-adjust compression settings, low-speed rebound adjust, 44mm offset
Rear Shock
FOX FLOAT DPS Factory, Kashima coating, 3-position lever, low-speed compression adjust, low-speed rebound adjust, trunnion mount, 205mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore XT M8100, 12-speed, SGS cage, SHADOW RD+
Front Derailleur
None
Shift Levers
Shimano Deore XT M8100, 12-speed, RAPIDFIRE+
Cassette
Shimano Deore XT M8100, 12-speed, 10-51 tooth, HYPERGLIDE+
Crank
e*thirteen TRS Race Carbon E-Bike, 165mm length
Chain
Shimano Deore XT M8100, 12-speed, with QUICK-LINK
Chain Guide
Upper slider
Pedals
None
Wheels
Front Hub
DT Swiss 240, 15x110mm Boost front, 12x148mm Boost rear with 24-tooth Ratchet freehub and MICRO SPLINE driver
Rear Hub
DT Swiss 240, 15x110mm Boost front, 12x148mm Boost rear with 24-tooth Ratchet freehub and MICRO SPLINE driver
Rims
DT Swiss HX1501 Spline One 29, 30mm internal width, welded aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Hybrid, straight-pull
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.6", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.6"
Brakes
Brakes
Shimano Deore XT M8120, 4-piston, resin pads with fins, Shimano MT800 ICE-TECH 203mm CENTER LOCK rotors
Brake Levers
Shimano Deore XT M8100, ergonomic antiskid lever, SERVO WAVE, tool-free reach adjust, free stroke adjust
Cockpit
Stem
Onoff Krypton FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
Handlebar
Onoff Krypton Carbon 1.0, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Grips
Onoff Desert, single lock-on, 135mm length
Headset
ACROS custom, angular contact bearings, internal cable routing
Seat
Saddle
fi'zi:k Antares R7
Seatpost
Onoff Pija dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Motor & Battery
Motor
Bosch Performance Line CX Cruise Gen4
Battery
Bosch Powertube, integrated, non-removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 619 mm | 619 mm | 637 mm | 637 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1222 mm | 1242 mm | 1262 mm | 1282 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Crafty Carbon RR completes the Mondraker E Crafty model. There are 27 e-bikes that carry this model name. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Your safety should be the top priority when you go for a ride. In short, make sure that you always use a helmet, high visibility clothing, and proper lights when riding at night-time.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Enduro e-bikes average weight
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 21.5 kg (47.4 lbs), the Crafty Carbon RR model is a bit lighter than average. In short, the average Enduro e-bike weight is 8.93% higher than this one.
Crafty Carbon RR components
Fork
This e-bike has the Fox Factory Float 36 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX FLOAT DPS Factory model, with a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
When it comes to wheels, the Crafty Carbon RR e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
When you want to stop the bike in time, the brakes are vital. The Crafty Carbon RR has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
Mondraker Crafty Carbon RR e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
Dropper post
A dropper post is included with the Crafty Carbon RR. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
