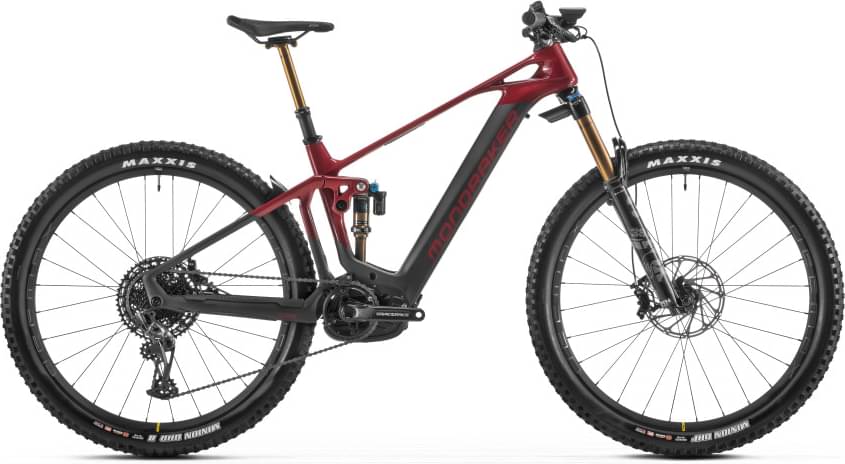

Mondraker CRAFTY CARBON RR 2022
2022 E-bike
Weight | 23.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset GX Eagle, Race Face -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 750Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Suspension Fork
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Rear Shock
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Drivetrain
Shift Levers
SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Crank
Race Face Aeffect ebike, 165mm
Chain
SRAM NX Eagle, 12s, Powerlock
Wheels
Front Hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear Hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Rims
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes
Mavic straightpull duble butted, contactless lacing
Tires
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Brakes
Brakes
SRAM G2 RSC, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers
SRAM G2 RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Cockpit
Stem
ONOFF Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
ONOFF Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
ONOFF Diamond, 1lock-on, 135mm
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seat
Saddle
FIZIK Terra Aidon X5 145mm
Seatpost
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L/XL size: 475.1x175mm
Motor & Battery
Motor
Bosch Performance Line CX Cruise (25Km/h) Bosch Smart System
Battery
Bosch Powertube 750Wh
Remote
Bosch Kiox 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Frame size | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" |
About this model
CRAFTY CARBON RR belongs to the Mondraker E Crafty model. There are 27 e-bikes that carry this model name. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
If you want to purchase a solid Enduro e-bike, it is important to know that the average cost is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
slightly lighter than average, CRAFTY CARBON RR has a weight of 23.3 kg (51.37 lbs). In conclusion, the average Enduro e-bike weighs 0.52% more than CRAFTY CARBON RR.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
CRAFTY CARBON RR components
Fork
This e-bike has the Fox Factory Float 38 fork installed. The fork’s travel is 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The CRAFTY CARBON RR has a rear shock with a travel of 150mm. The model Fox Float-X LV Factory Kashima is the one installed in this e-bike. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
As for the wheels, Mondraker CRAFTY CARBON RR 2022, has a 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker CRAFTY CARBON RR has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Dropper post
The Mondraker model is also equipped with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
