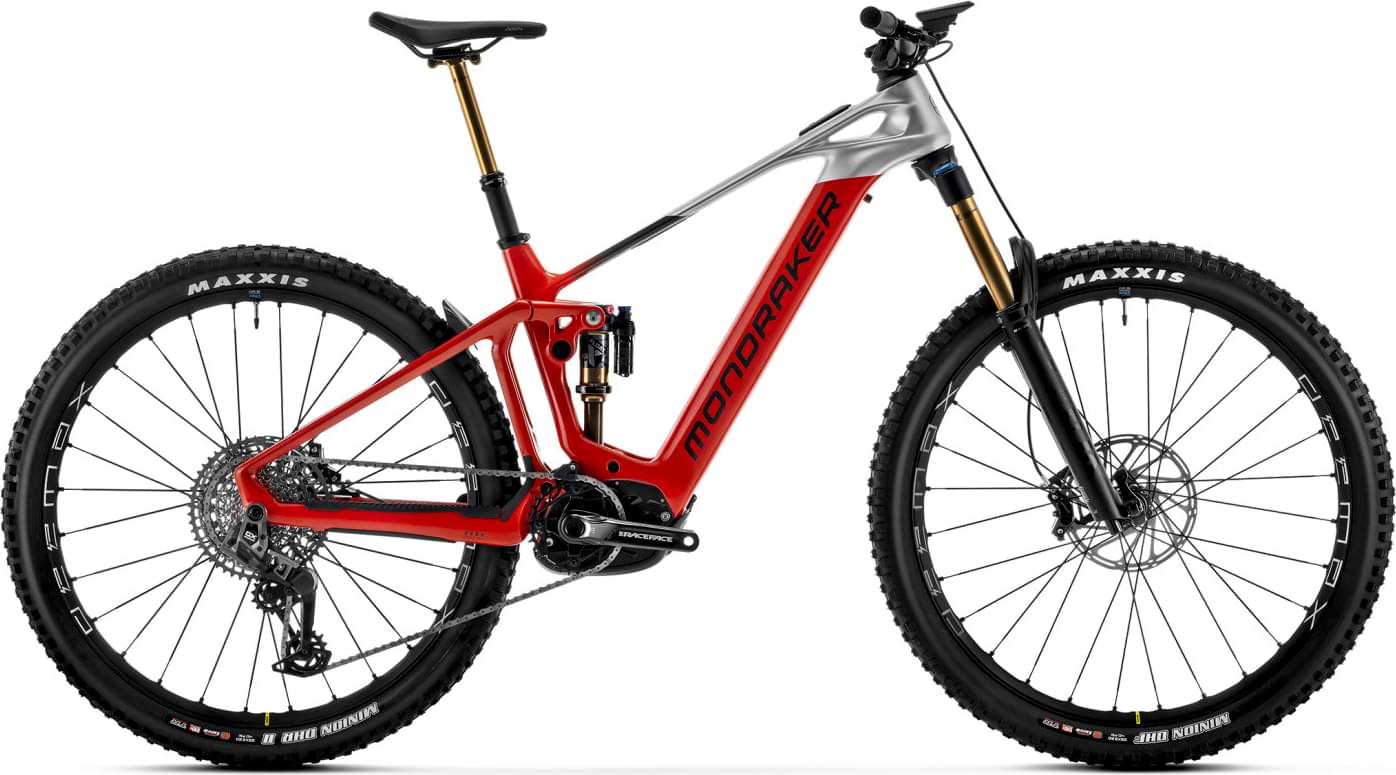

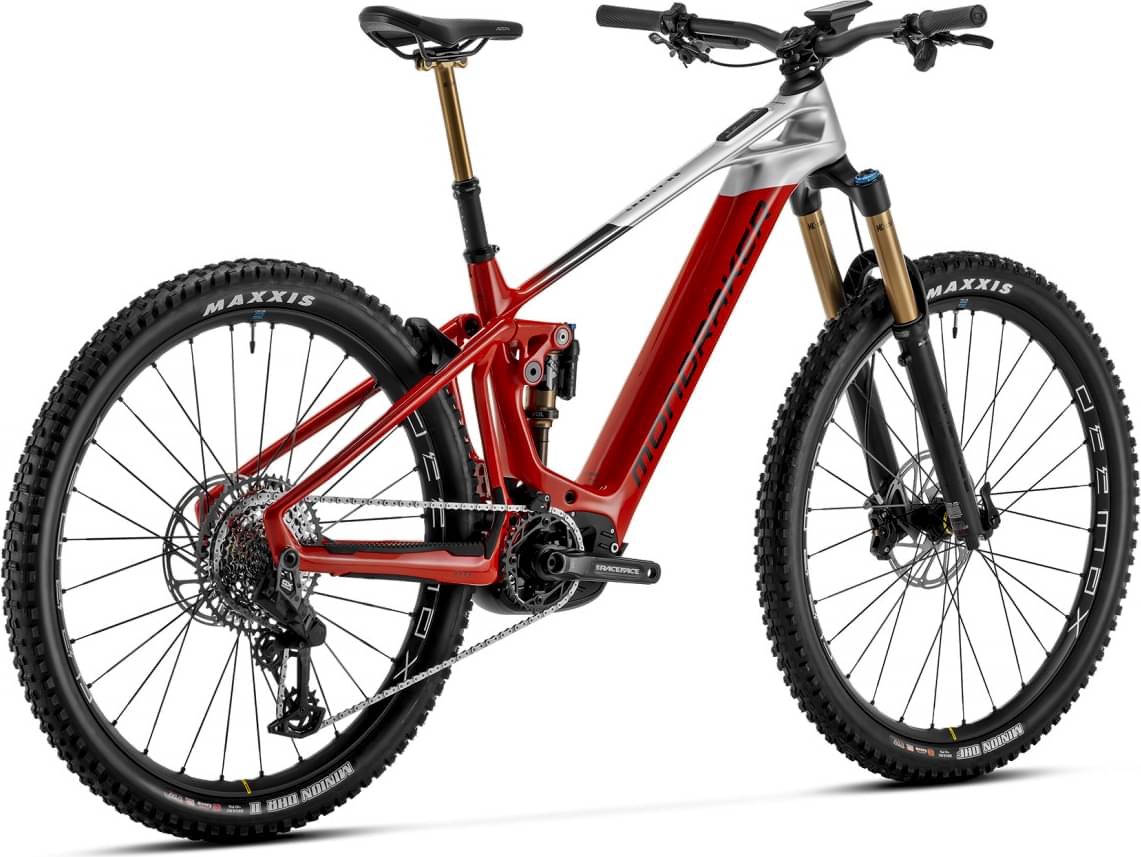

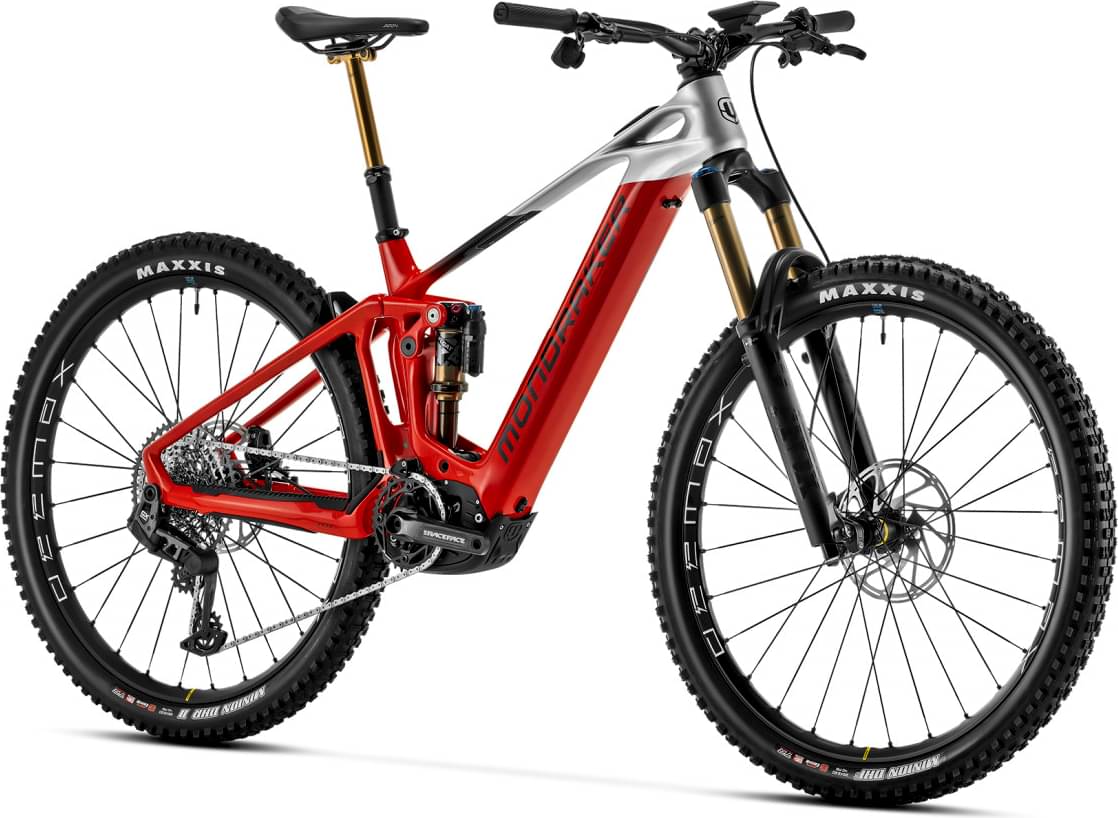

Mondraker CRAFTY CARBON RR 2023
2023 E-bike
Weight | 23.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 38
-
Groupset GX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 750Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Suspension Fork
Fox 38 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Rear Shock
Fox Float-X LV Factory Kashima, 205x65mm. Settings: compression 2 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Drivetrain
Rear Derailleur
SRAM GX Eagle AXS, T-Type roller bearing clutch, cage lock, 1x12s
Shift Levers
SRAM Eagle AXS Pod MMX, 12s
Crank
Race Face Aeffect ebike, 165mm, Rings: SRAM T-Type 34T, steel, narrow-wide, 104 BCD
Chain
SRAM GX Eagle T-Type, 12s, Powerlock
Wheels
Front Hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear Hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Rims
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes
Mavic straight-pull double butted, contactless lacing
Tires
Front: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Brakes
Brakes
Front: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Silver Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Levers
SRAM Code Silver Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Cockpit
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seat
Saddle
FIZIK Terra Aidon X5 145mm
Seatpost
Fox Transfer Factory Kashima internal, diameter 31.6mm, S size: 363.5x125mm, M size: 418.3x150mm, L size: 475.1x175mm, XL size size: 475.1x200mm
Motor & Battery
Motor
Bosch Performance Line CX Cruise (25Km/h) GEN4 SMART SYSTEM
Battery
Bosch Powertube 750Wh
Fit data

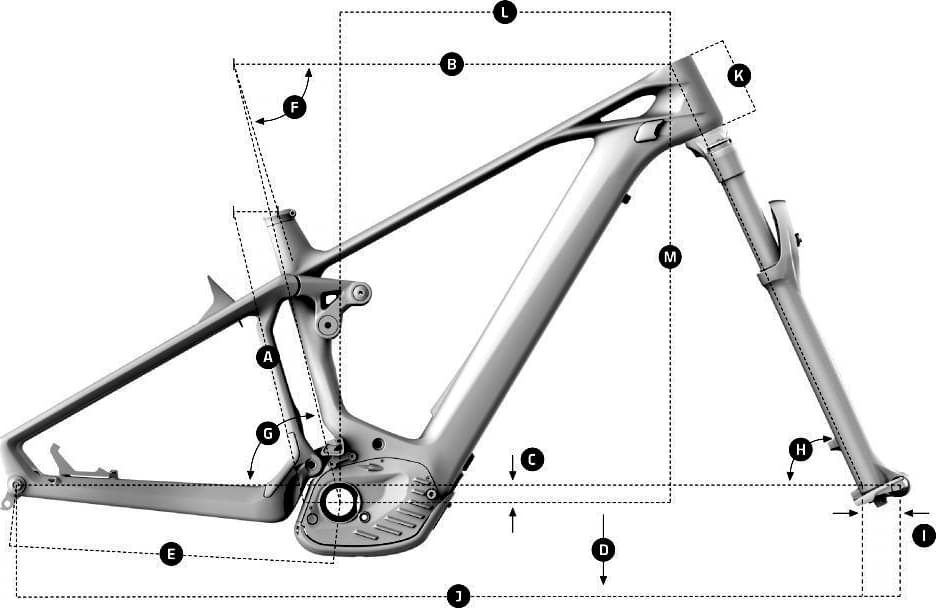

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.36 mm | 1.3 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm | 358 mm |
| Front Center | 781 mm | 800 mm | 825 mm | 845 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 135 mm | 135 mm |
| Stack | 629 mm | 629 mm | 647 mm | 647 mm |
| Reach | 437 mm | 457 mm | 477 mm | 497 mm |
| Top Tube Length | 612 mm | 632 mm | 657 mm | 677 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1232 mm | 1252 mm | 1277 mm | 1297 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
CRAFTY CARBON RR is part of the Mondraker E Crafty model. Mondraker launched 27 e-bikes of this model so far. You can easily view all of the Mondraker E Crafty e-bikes models from 2023, here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 23.7 kg (52.25 lbs), Mondraker e-bike is slightly heavier than average. In short, the average Enduro e-bike weight is 1.2% lower than this one.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
Overview of components
Fork
The CRAFTY CARBON RR comes factory-installed with the Fox Factory Float 38 fork. This has a travel range of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
As for the rear shock, this e-bike has the Fox Float-X LV Factory Kashima model, with a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. To sum up, always consider getting a bike that has a rear shock as well.
Wheels
When it comes to wheels, the CRAFTY CARBON RR e-bike is equipped with the 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Nothing is more important on a bike than its ability to brake properly. Mondraker CRAFTY CARBON RR is equipped with Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Mondraker CRAFTY CARBON RR comes with a dropper post. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
