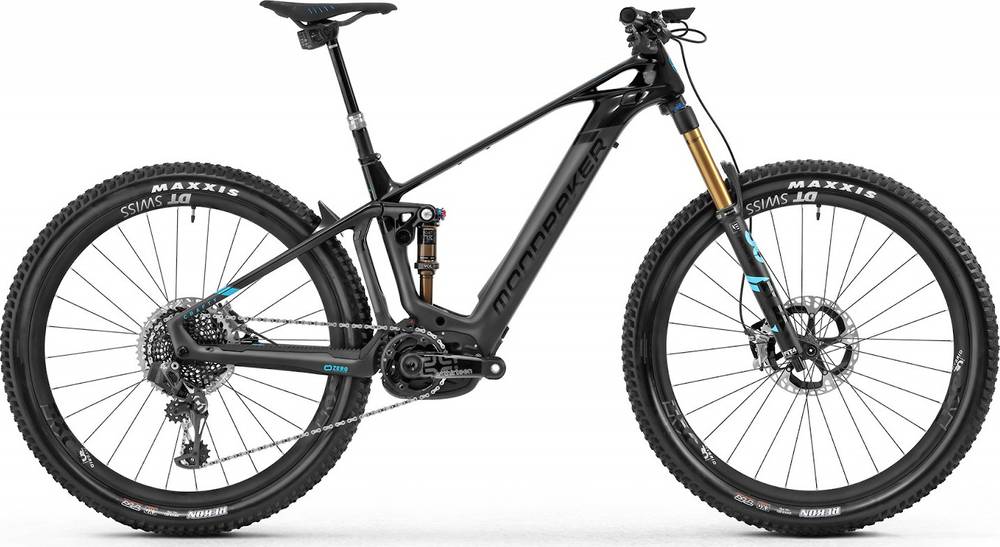

Mondraker Crafty Carbon RR SL 2020
2020 E-bike
Weight | 19.3 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset X01 Eagle AXS, e*thirteen -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch PowerTube, internal -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 FLOAT Factory 29", EVOL, e-bike tuned, Kashima, FIT4, 15mm x 110mm axle, tapered steerer, 3-position compression with micro adjust, 44mm offset
Rear Shock
FOX FLOAT DPS Factory, Kashima, 205mm x 65mm, 3-position compression lever, low-speed compression, low-speed rebound, air preload, Trunnion top mount, 25mm x 10mm bottom bushings
Drivetrain
Rear Derailleur
SRAM X01 Eagle AXS, ROLLER BEARING CLUTCH, CAGE LOCK, 12-speed
Front Derailleur
None
Shift Levers
SRAM Eagle AXS, trigger, 12-speed
Cassette
SRAM PG-1299, 10-50 tooth, 12-speed
Crank
e*thirteen
Chain
SRAM GX Eagle, 12-speed
Chain Guide
Top only
Pedals
None
Wheels
Front Hub
Front: DT Swiss 240, 15mm x 110mm, centerlock, Rear: DT Swiss 240, 12mm x 148mm, centerlock, 24Z ratchet system
Rear Hub
Front: DT Swiss 240, 15mm x 110mm, centerlock, Rear: DT Swiss 240, 12mm x 148mm, centerlock, 24Z ratchet system
Rims
DT Swiss HXC1200 Carbon SPLINE 29, 30mm internal width, tubeless ready, 28 spokes
Spokes
DT Swiss Hybrid, straight pull
Tires
Maxxis Rekon 29" x 2.6", EXO+, TR, 60 TPI, 3C, MaxxTerra, folding bead
Brakes
Brakes
Shimano XTR M9120, 4-piston caliper, Shimano MT900 ICE TECH 203mm centerlock rotors, resin pads with fin
Brake Levers
Shimano XTR
Cockpit
Stem
ONOFF Krypton FG, 30mm, 6061 forged alloy, 31.8mm barbore
Handlebar
ONOFF Krypton Carbon 0.5, 780mm, 12.5mm rise, 9° backsweep, 5° upsweep, 31.8mm barbore
Grips
Lizard Skins DSP, sizes: S/M and L/XL
Headset
ACROS custom for 1.5" head tube, angular contact bearings 40mm x 52mm x 7mm, internal cable routing
Seat
Saddle
fi'zi:k Antares R1, large
Seatpost
RockShox Reverb Stealth AXS, Travel: 125mm on S, 150mm on M/L, 170mm on XL
Motor & Battery
Motor
Bosch Performance CX, 4th generation
Battery
Bosch PowerTube, internal
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Stack | 619 mm | 619 mm | 637 mm | 637 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1222 mm | 1242 mm | 1262 mm | 1282 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
Crafty Carbon RR SL is part of the Mondraker E Crafty model. Mondraker released 27 e-bikes variations of this model so far. Check out the entire range from 2020 of this model, by clicking this link.
Safety
When you go for a ride, don’t forget to put your helmet on. Moreover, ride with traffic, not against it. This will help you stay visible to drivers and also makes it easier for them to see you.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, even though the average price of an Enduro e-bike is lower, you might still be able to get a top-quality e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Crafty Carbon RR SL weighs 19.3 kg (42.55 lbs) and is much lighter than the average. In conclusion, the average Enduro e-bike weighs 21.35% more than Crafty Carbon RR SL.
Overview of components
Fork
The Crafty Carbon RR SL comes factory-installed with the Fox Factory Float 36 fork. This has a travel range of 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The Crafty Carbon RR SL has a rear shock with a travel of 150mm. The model FOX FLOAT DPS Factory is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, a full-suspension bike will give you the smoothest ride possible.
Wheels size
When it comes to wheels, the Crafty Carbon RR SL e-bike is equipped with the 29″ carbon model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, finding one for you shouldn’t be a problem.
Dropper post
A dropper post is included with the Crafty Carbon RR SL. Needless to say, a dropper post will come in handy on climbs and descends. You’ll fall in love with it at first sight!
