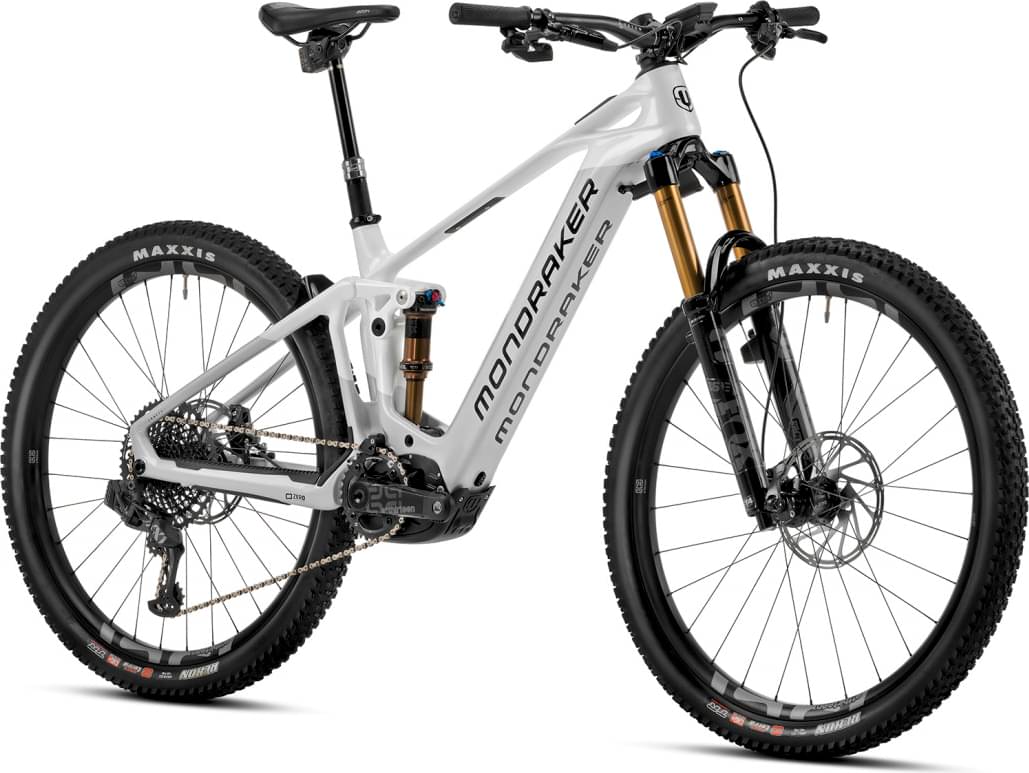

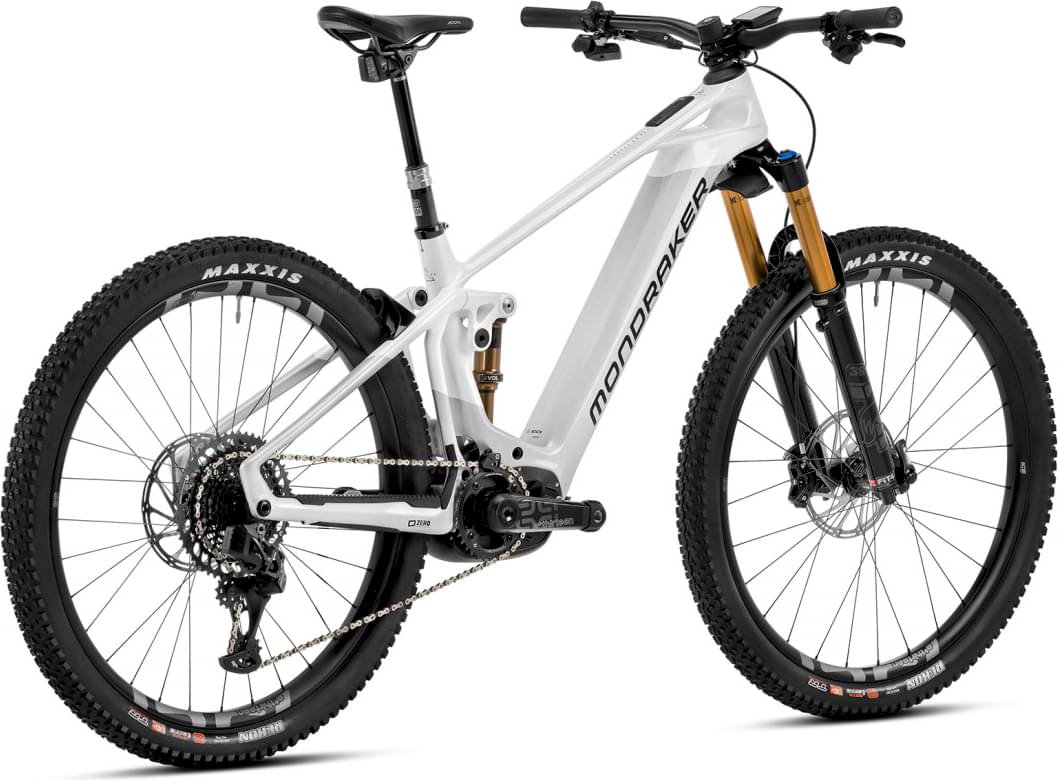

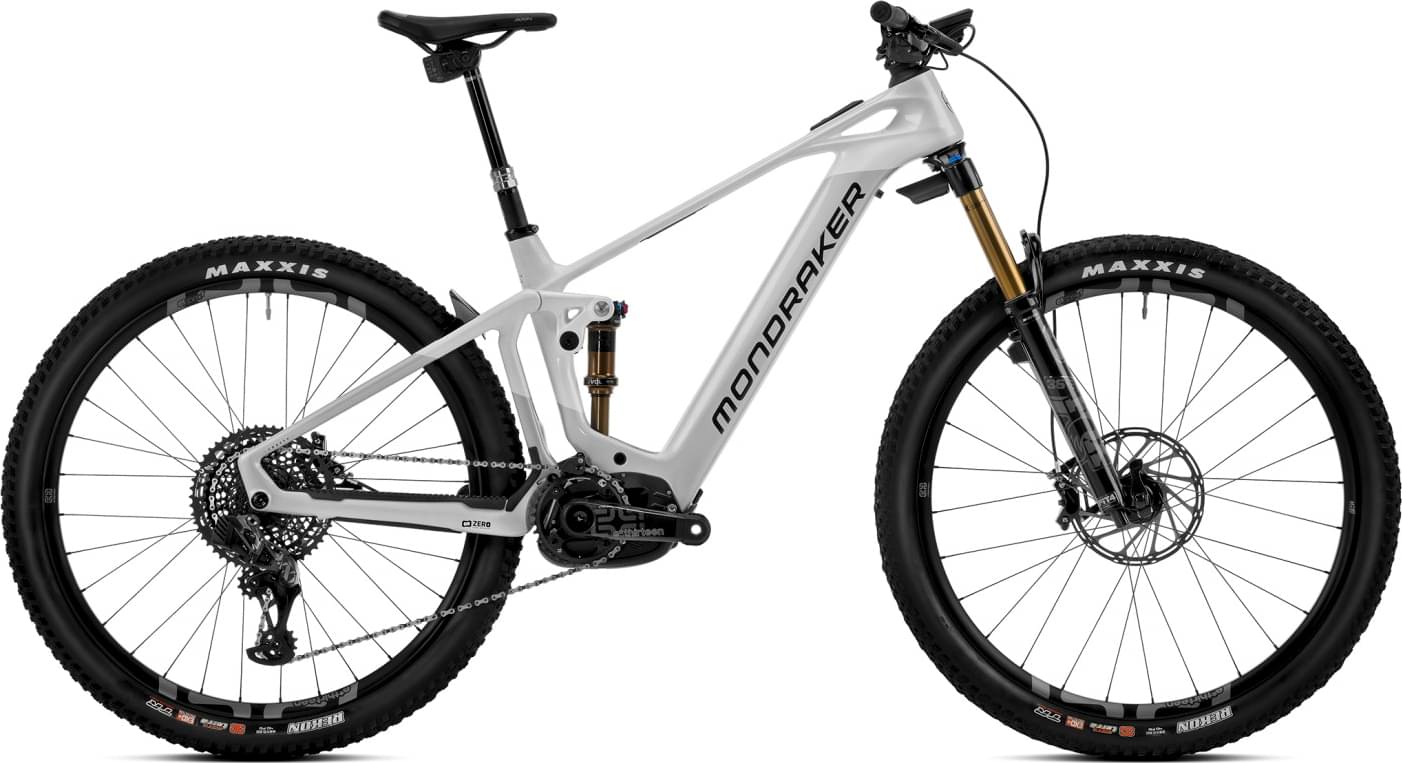

Mondraker CRAFTY CARBON RR SL 2023
2023 E-bike
Weight | 22.7 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XX1 Eagle AXS, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 750Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers. MIND System (EU only)
Suspension Fork
Fox 36 29 Float GRIP2 Factory Kashima, 160mm, e-bike optimized, tapered steerer tube, Boost 15x110mm axle, 44mm offset, 68mm OD crown. Settings: high and low-speed compression, high and low-speed rebound, air preload
Rear Shock
Fox Float DPS Factory Kashima evol LV, 205x65mm. Settings: Compression 3 positions lever, low-speed compression, low-speed rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Drivetrain
Rear Derailleur
SRAM XX1 Eagle AXS, Type 2.1 roller bearing clutch, cage lock, long carbon cage, 1x12s, X-actuation 1:1 with battery cover
Shift Levers
SRAM Eagle AXS Rocker paddle, 12s
Crank
E.13 TRS Race carbon ebike, 165mm, Rings: SRAM X-Sync 2 Eagle 34T, alloy, narrow-wide, 104 BCD
Chain
SRAM GX Eagle, 12s, Powerlock
Wheels
Front Hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Rims
e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Tires
Front: Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Rekon 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Brakes
Brakes
Front: SRAM Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code RSC, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads
Brake Levers
SRAM Code RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Cockpit
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seat
Saddle
FIZIK Terra Aidon X1 145mm
Seatpost
RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 390x125mm, M size: 440x150mm, L/XL size: 440x170mm
Motor & Battery
Motor
Bosch Performance Line CX (25km/h) Smart System
Battery
Bosch Powertube 750Wh
Fit data

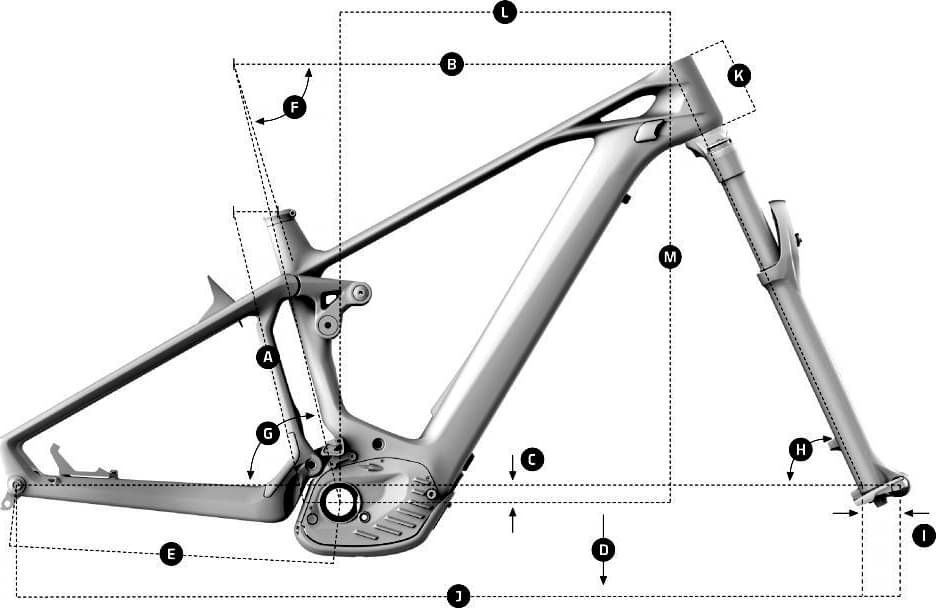

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 771 mm | 791 mm | 811 mm | 831 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 122 mm | 122 mm | 130 mm | 130 mm |
| Stack | 619 mm | 619 mm | 637 mm | 637 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1222 mm | 1242 mm | 1262 mm | 1282 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
CRAFTY CARBON RR SL is a Mondraker E Crafty model. Mondraker launched 27 e-bikes of this model so far. Take a sneak peek at all Mondraker E Crafty e-bikes models from 2023, by clicking here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Average price for Enduro e-bikes
According to our math, the average price for a trustworthy Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
CRAFTY CARBON RR SL weighs 22.7 kg (50.04 lbs) and is slightly lighter than the average. In other words, this model is 3.17% lighter than the average Enduro e-bike.
Internal Cable Routing
It’s also important to mention the internal cable routing that this e-bike has. In short, this will allow you to keep your bike cables in great condition. Say goodbye to hanging cables.
CRAFTY CARBON RR SL components
Fork
The Fox Factory Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks absorb the shocks and give you a smooth and pleasant ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is Fox Float DPS Factory Kashima evol LV, with a travel distance of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The CRAFTY CARBON RR SL 2023 e-bike is equipped with 29″ carbon wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
We ride faster and faster, so a good braking system is essential on a bike nowadays. The CRAFTY CARBON RR SL comes with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
Mondraker CRAFTY CARBON RR SL comes with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
