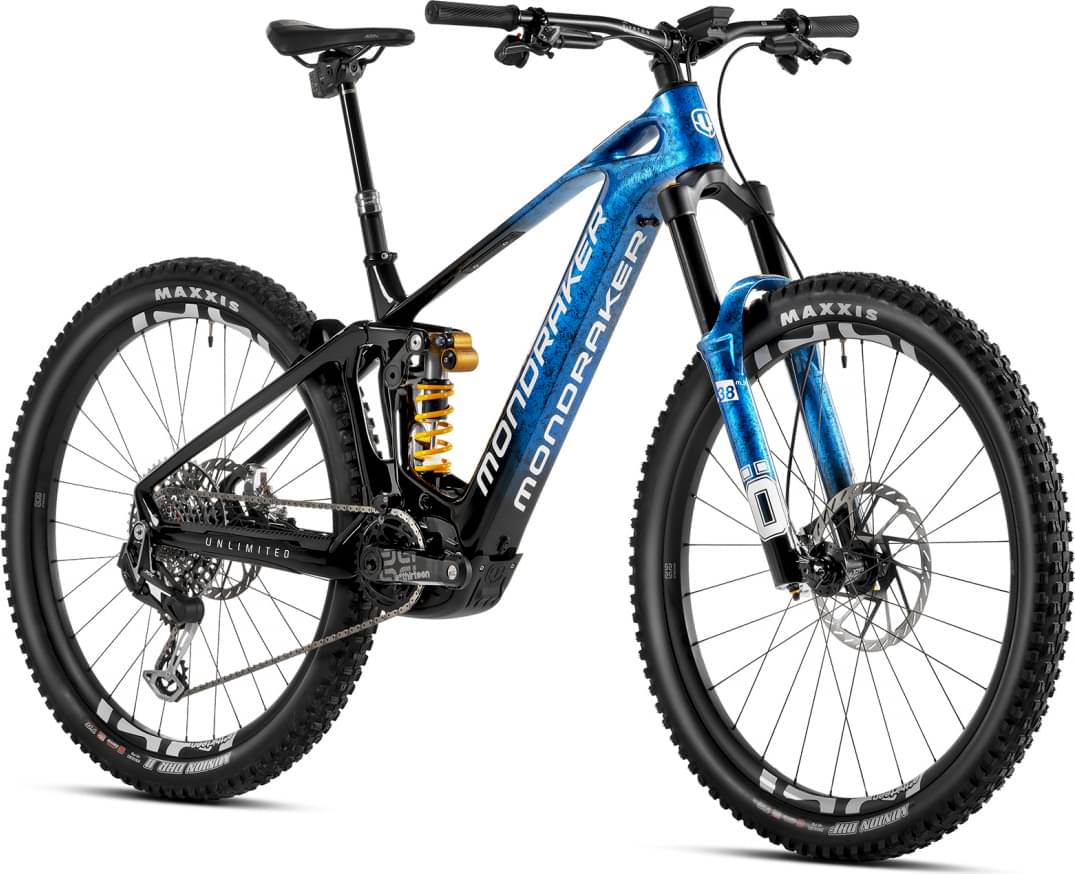

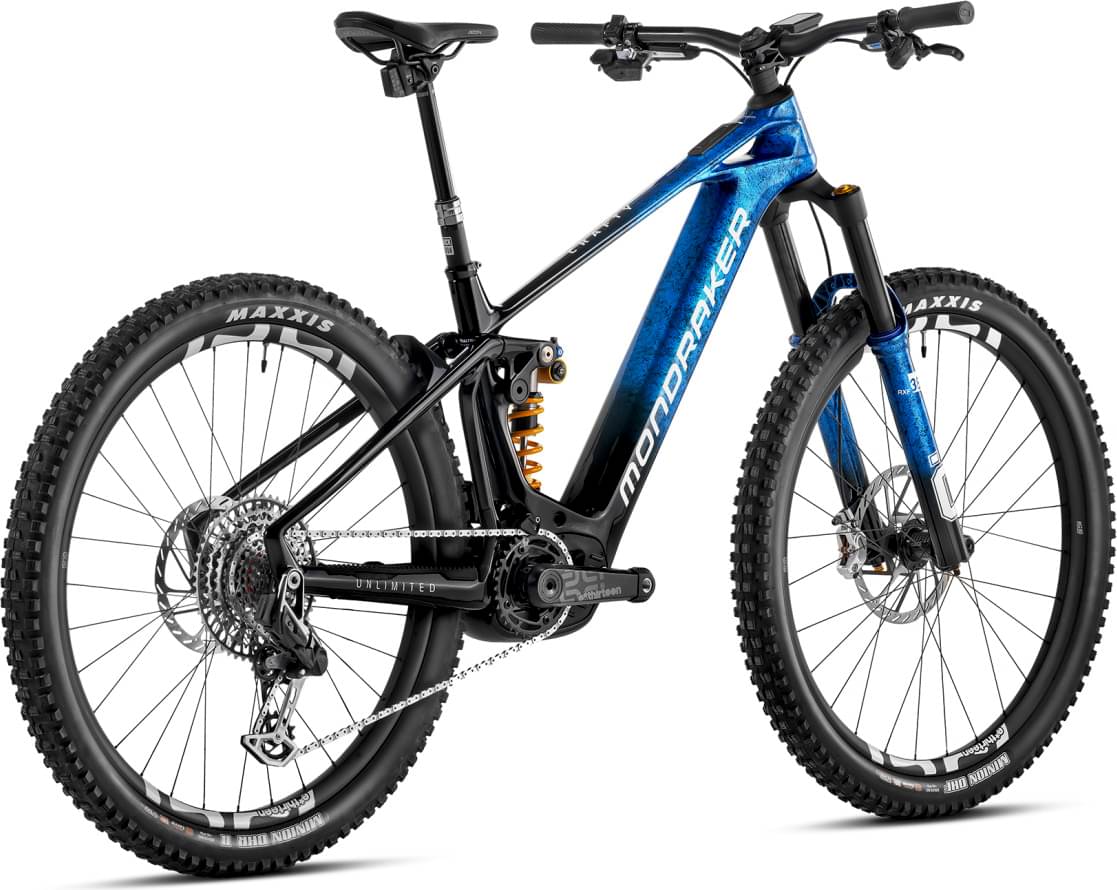

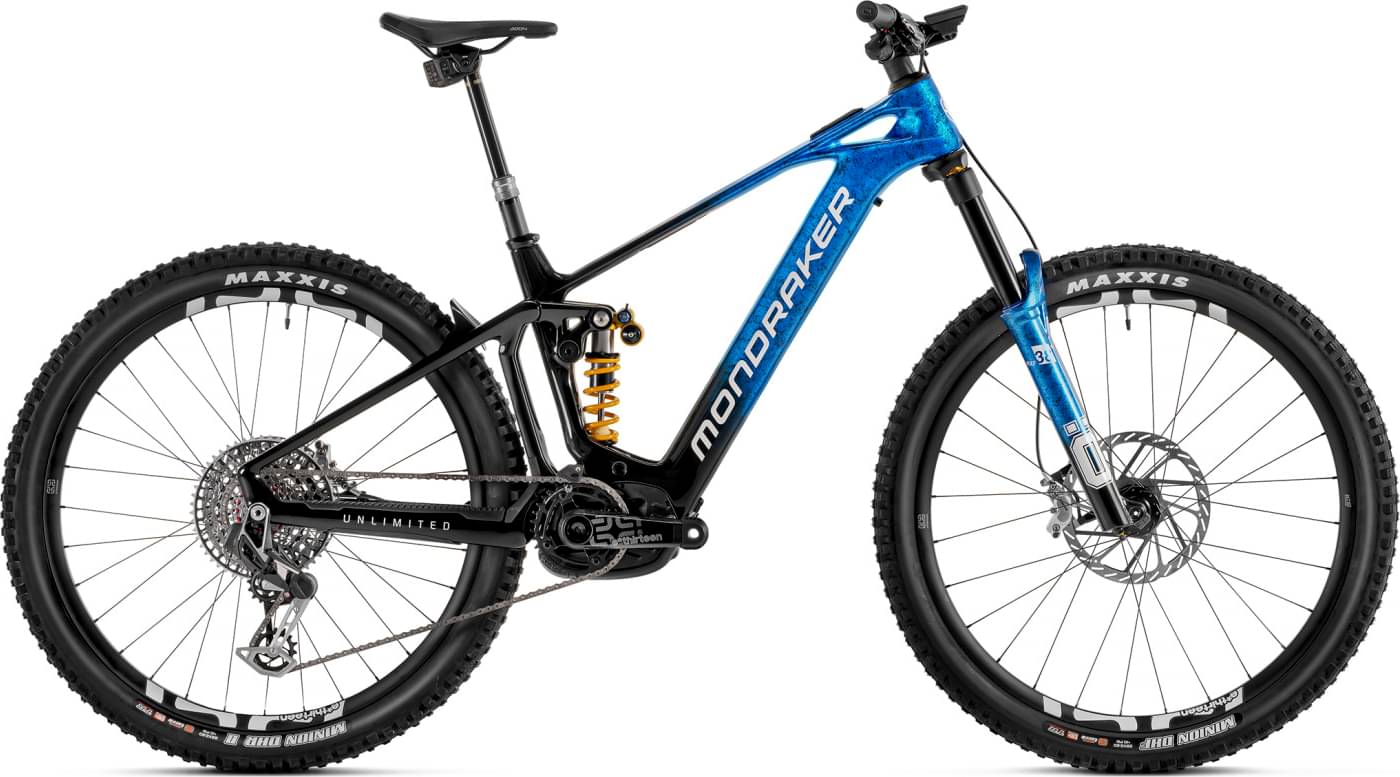

Mondraker CRAFTY CARBON UNLIMITED ELECTRIC BLUE 2023
2023 E-bike
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 150mm -
Fork Öhlins RXF38
-
Groupset XX Eagle Transmission, X01 Eagle AXS -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 750Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame

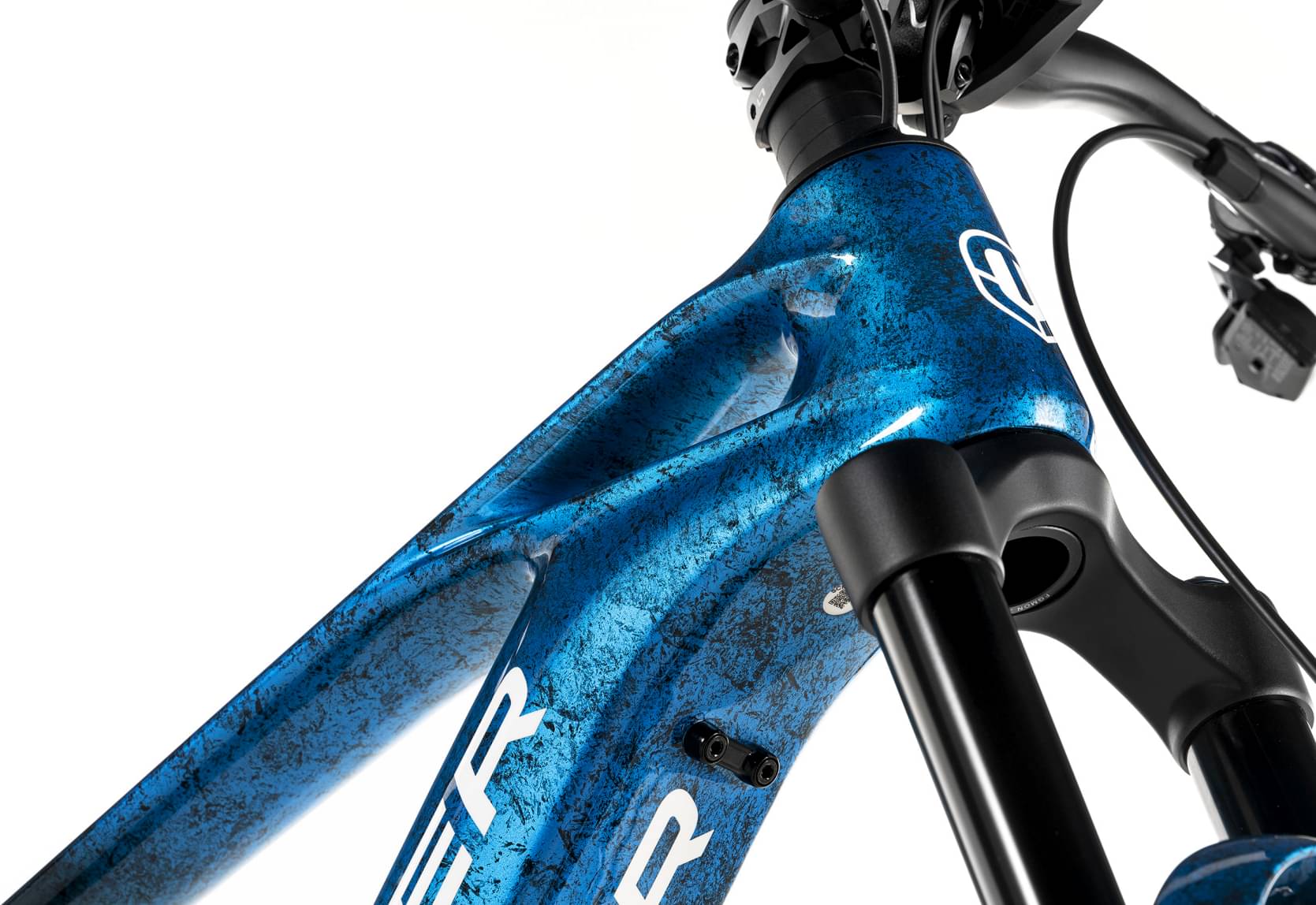

Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers
Suspension Fork

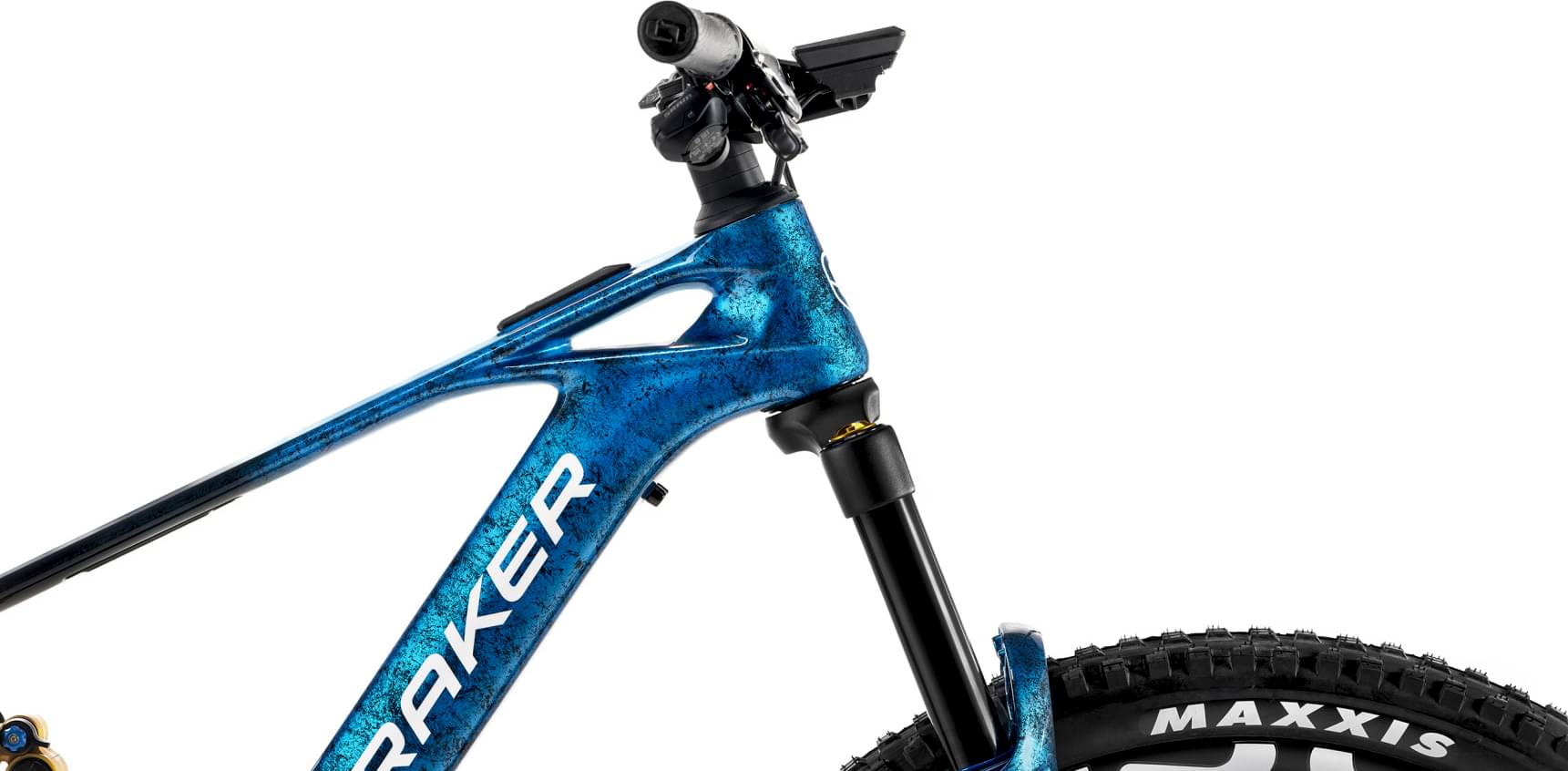

Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Rear Shock

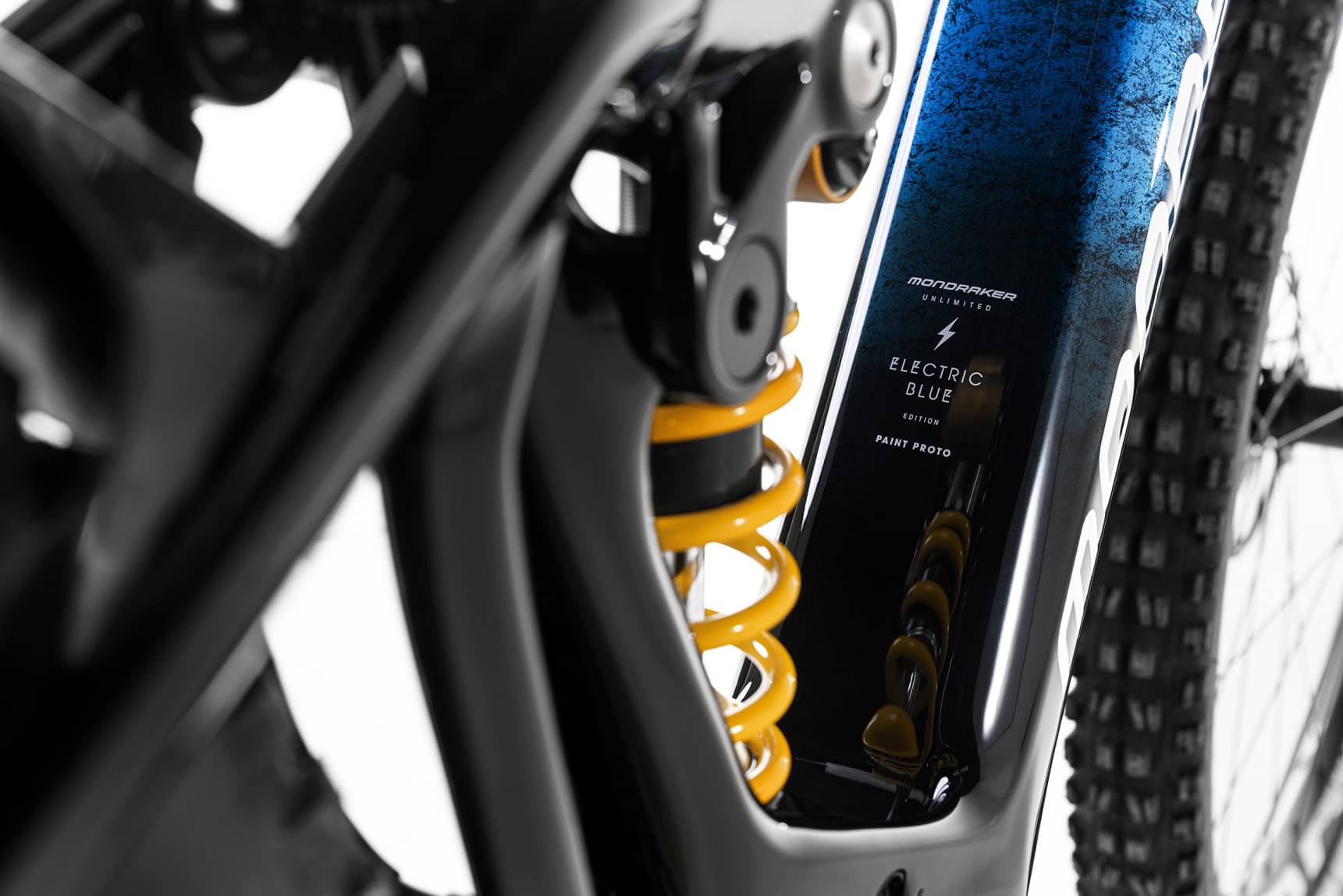

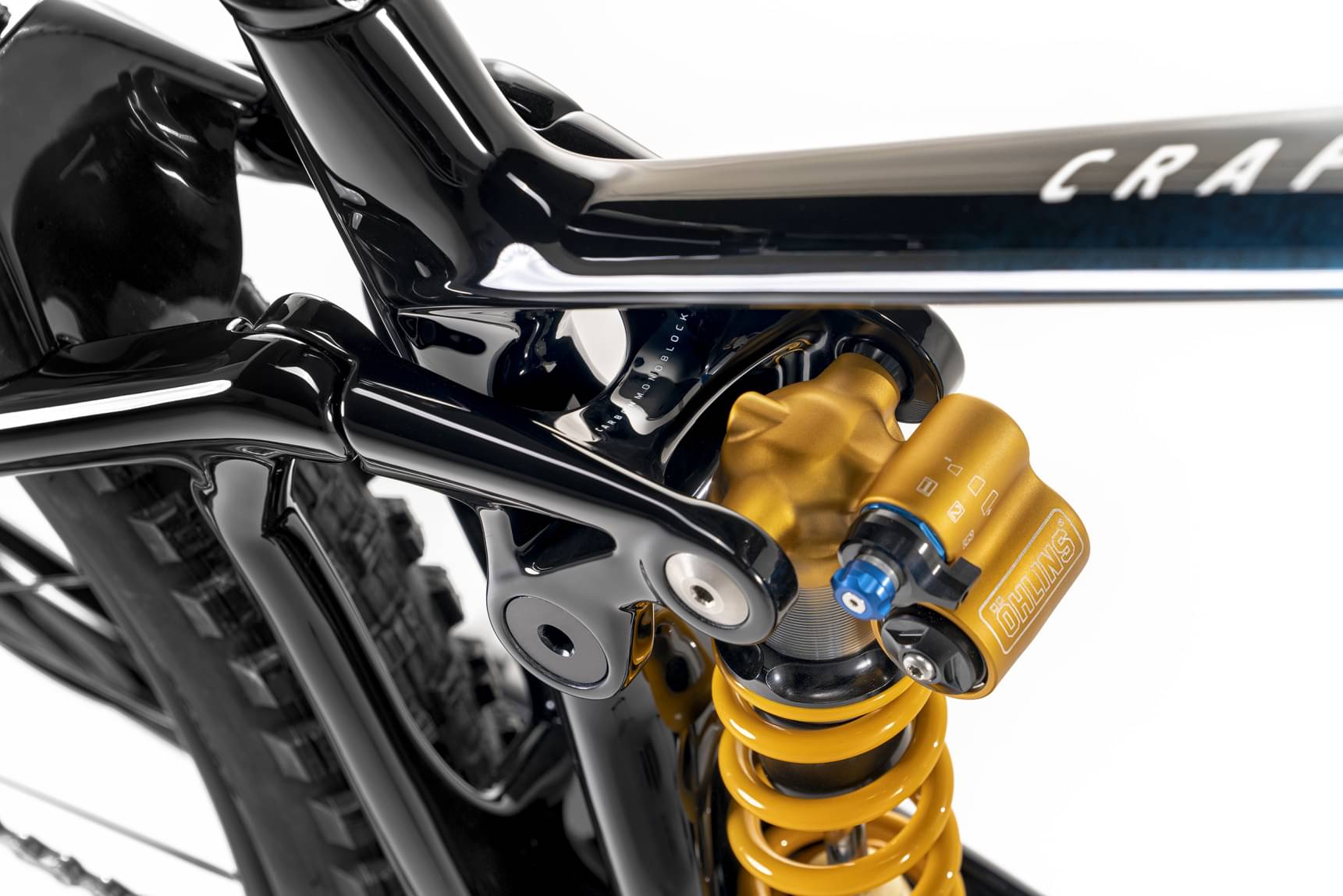

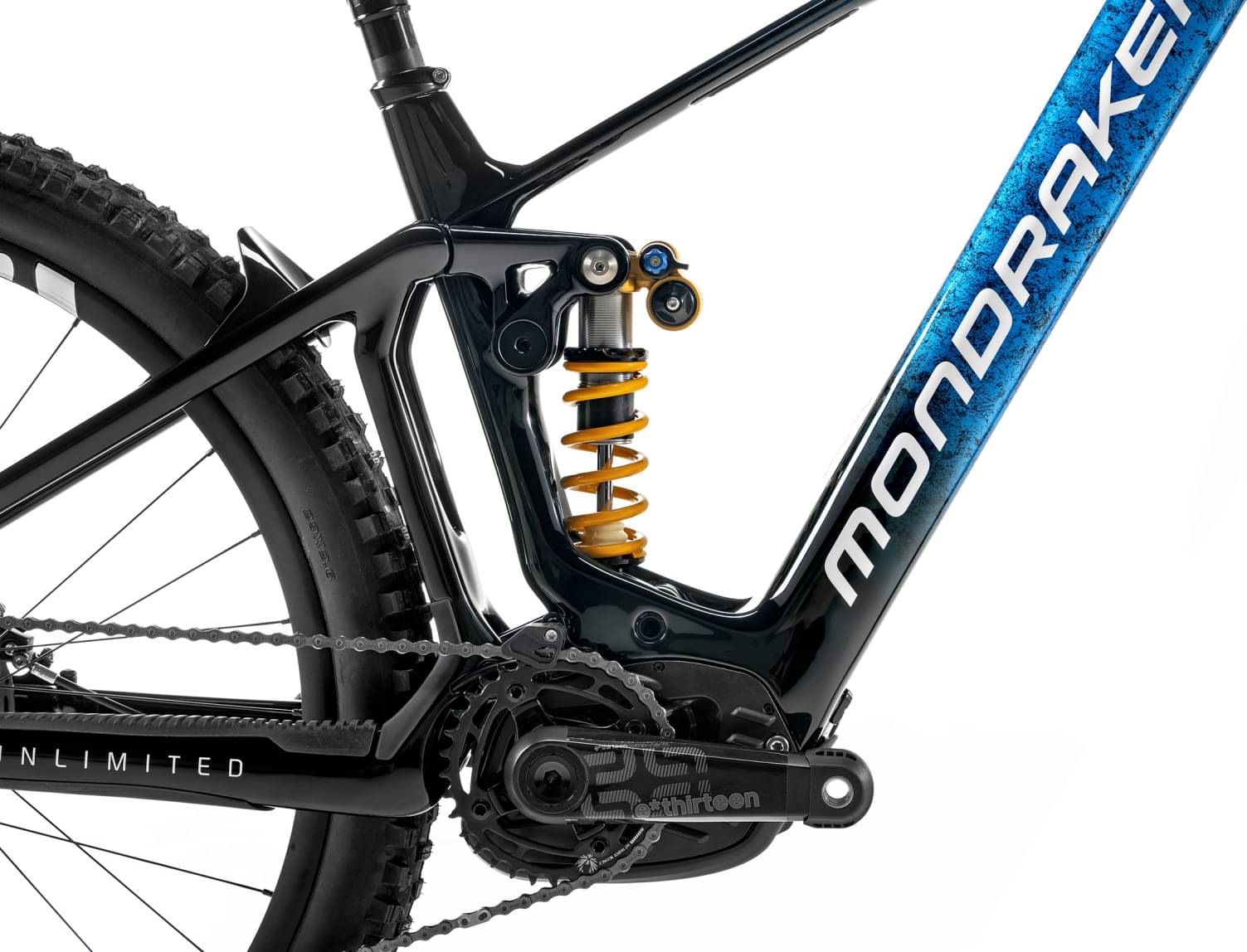

Öhlins TTX22M.2 NH Coil 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Drivetrain
Rear Derailleur

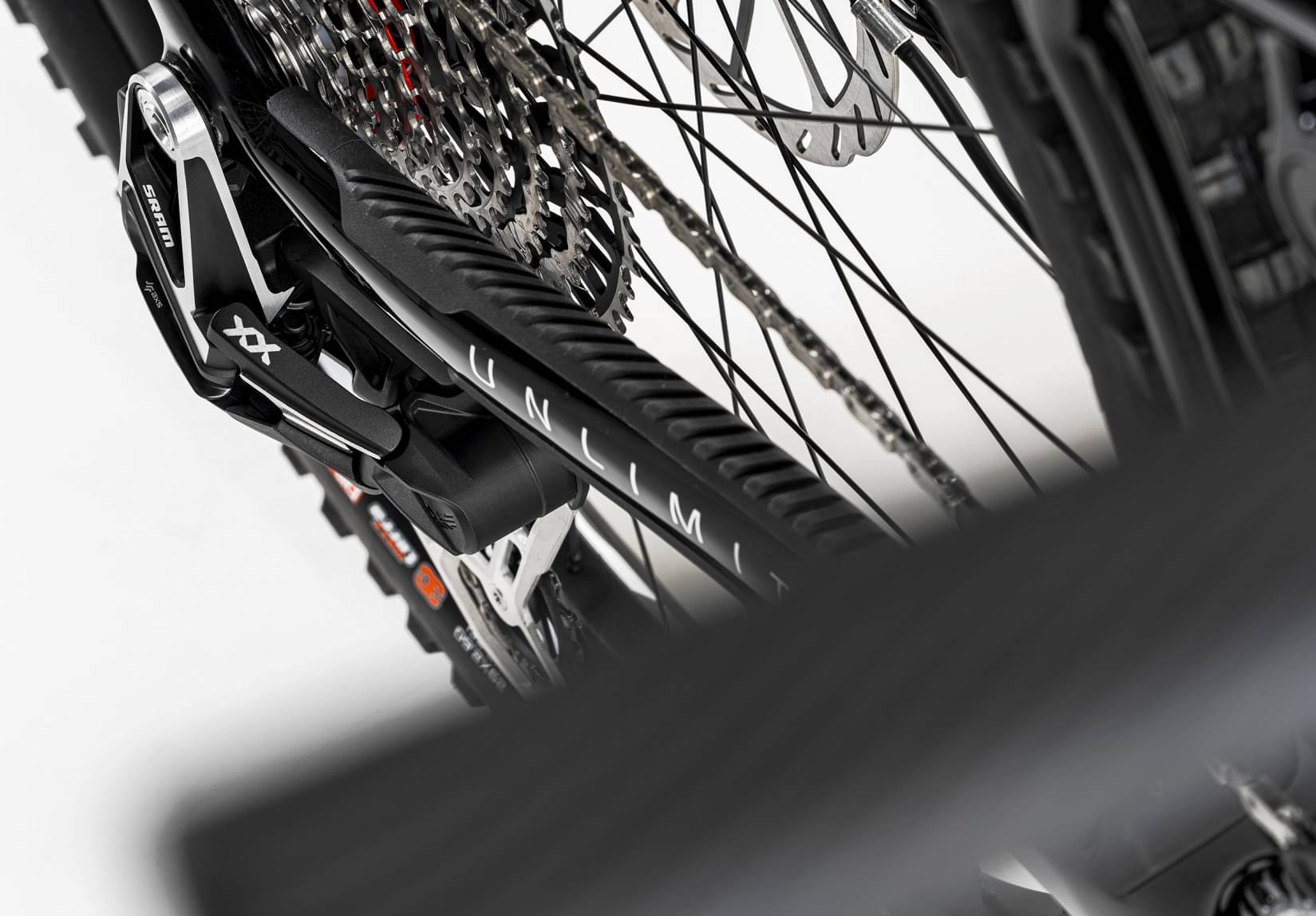

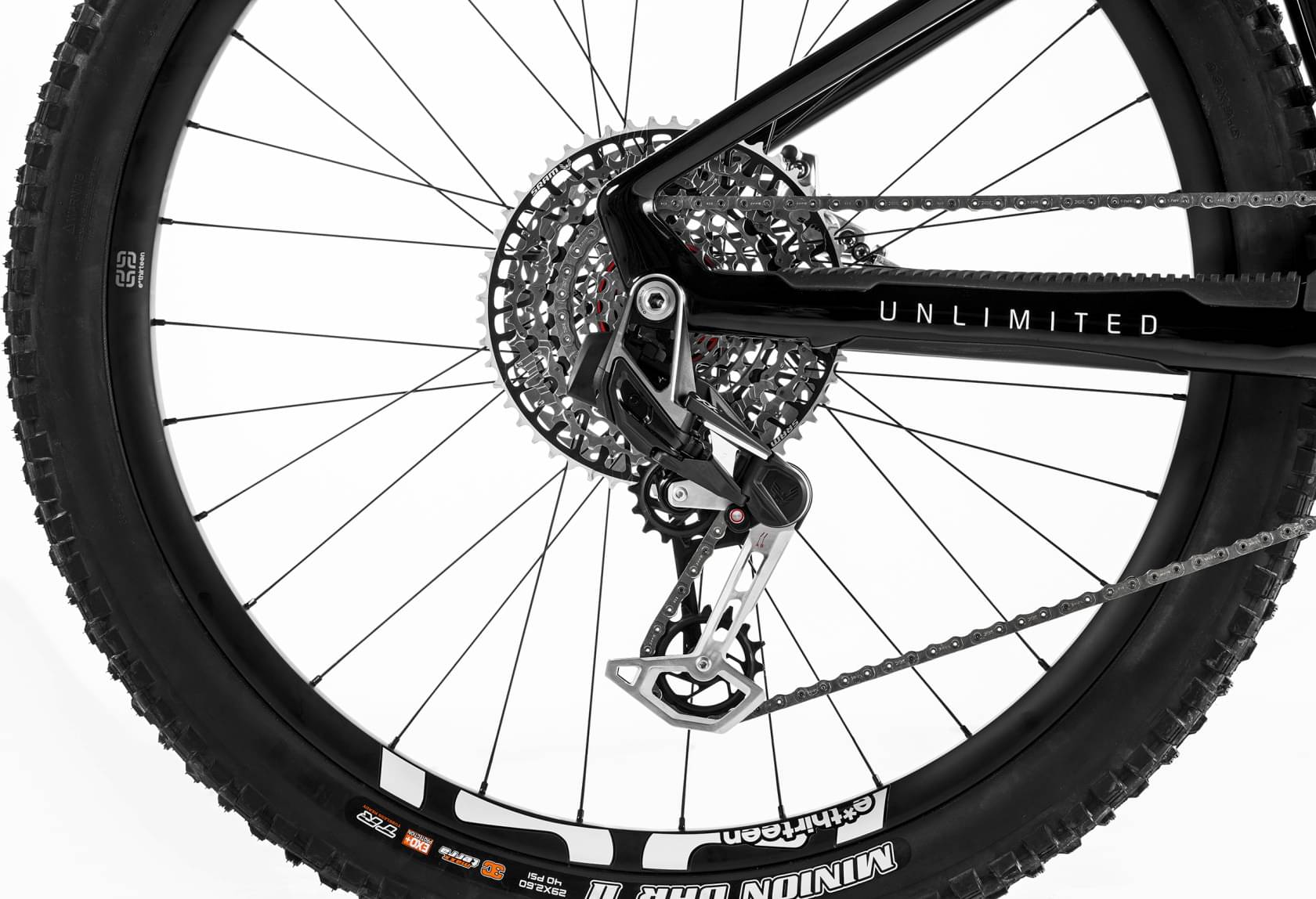

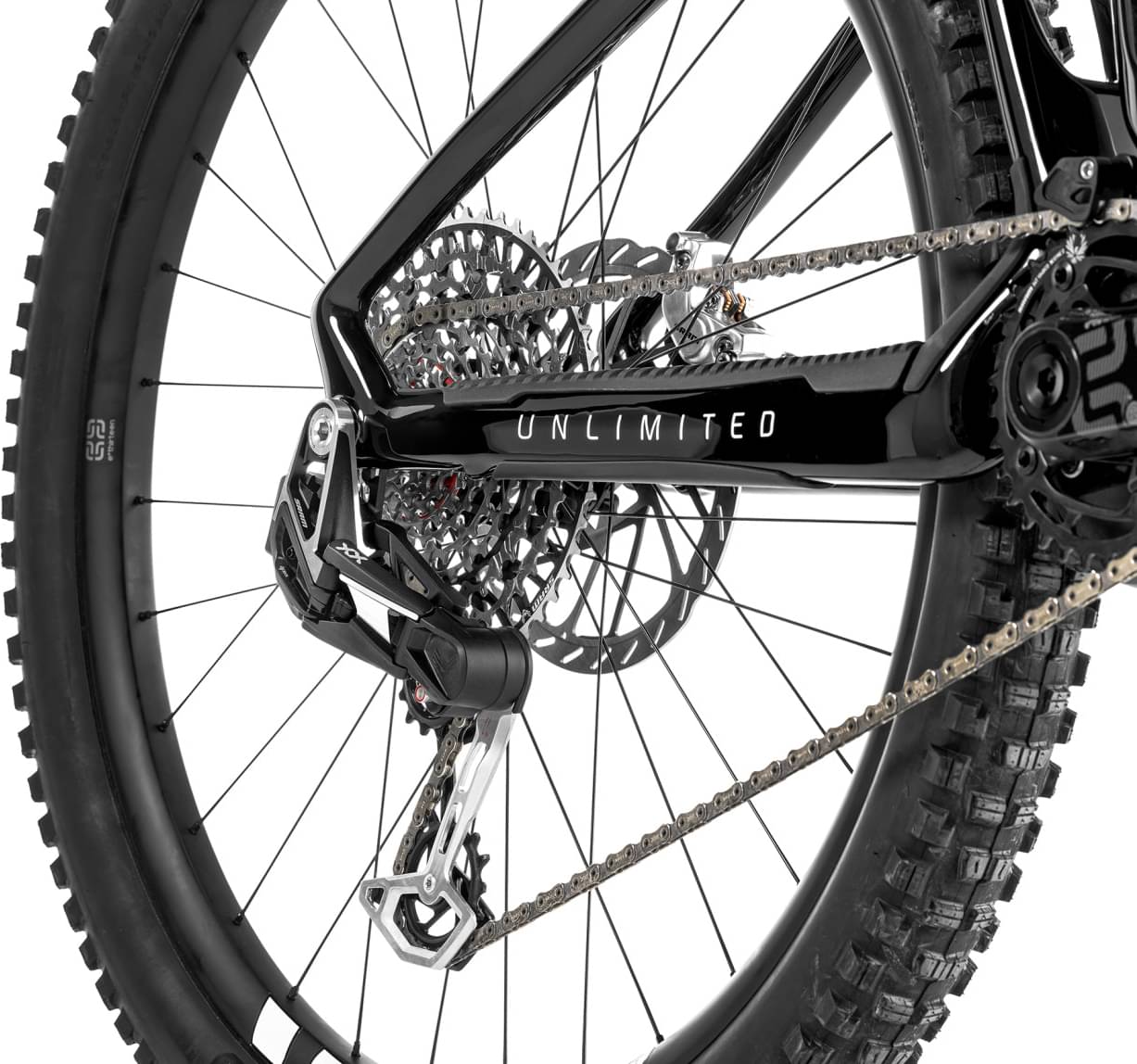

SRAM XX Eagle AXS, T-Type 3 roller bearing clutch, cage lock, 1x12s,
Shift Levers
SRAM Eagle AXS Pod MMX, 12s
Crank
E.13 TRS Race carbon ebike, 165mm, Rings: SRAM T-Type 34T, steel, narrow-wide, 104 BCD
Chain
SRAM XX Eagle, 12s, T-TYPE Powerlock
Wheels
Front Hub
e*thirteen Boost 15x110mm, triple-sealed, fully machined aluminum, IS 6 bolts
Rear Hub
e*thirteen Boost 12x148mm, triple-sealed, fully machined aluminum w/6-degree engagement, IS 6 bolts, XD freehub
Rims
e*thirteen Race Carbon Enduro IW30, Hookless carbon rim, 30mm internal width, tubeless ready, 28 spokes
Spokes
e*thirteen custom Hive triple-butted black steel, alloy nipples, nipple washers
Tires
Front: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Brakes

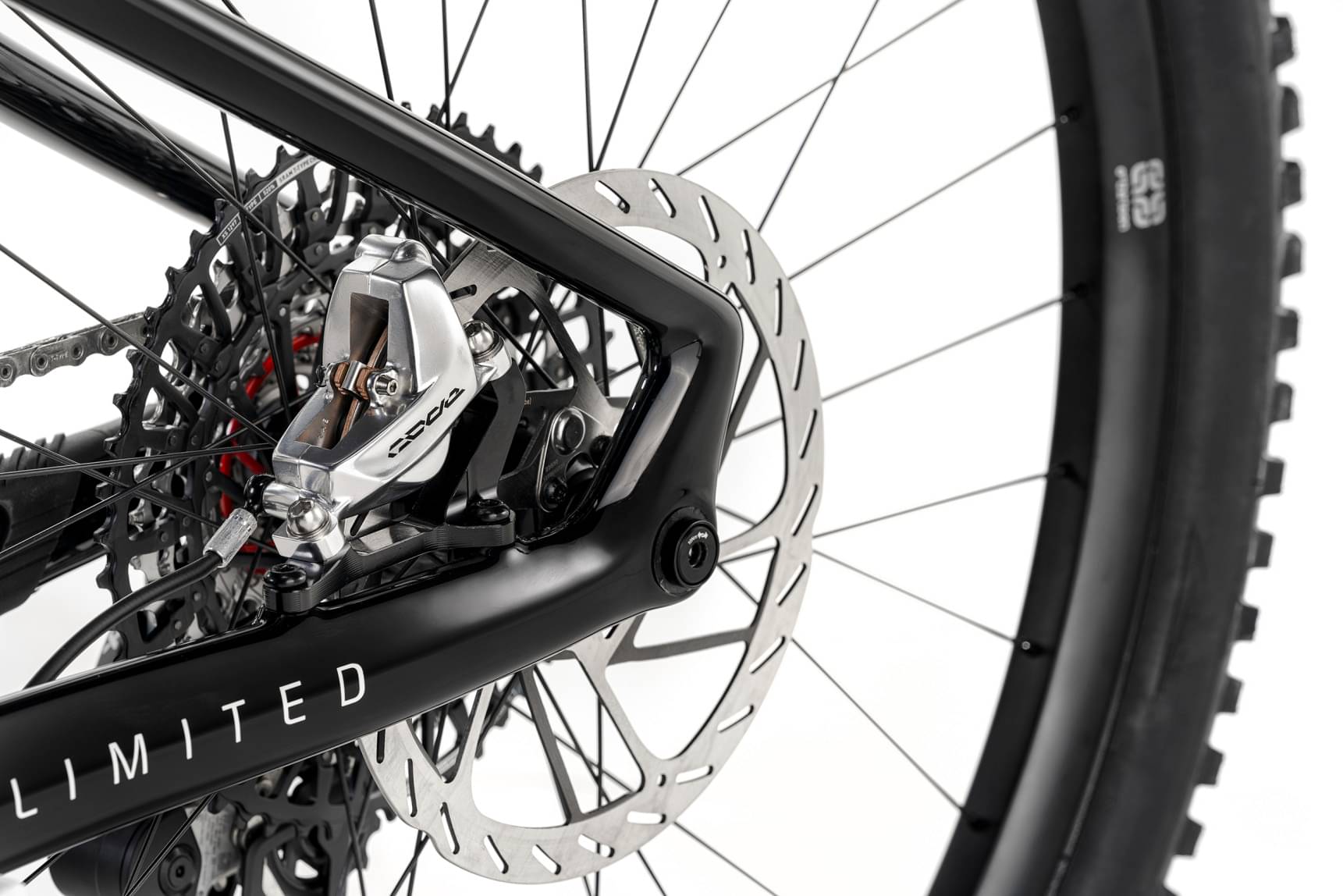

Brakes
Front: SRAM Code Ultimate Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads, Rear: SRAM Code Ultimate Stealth, oversized 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed metal sintered pads

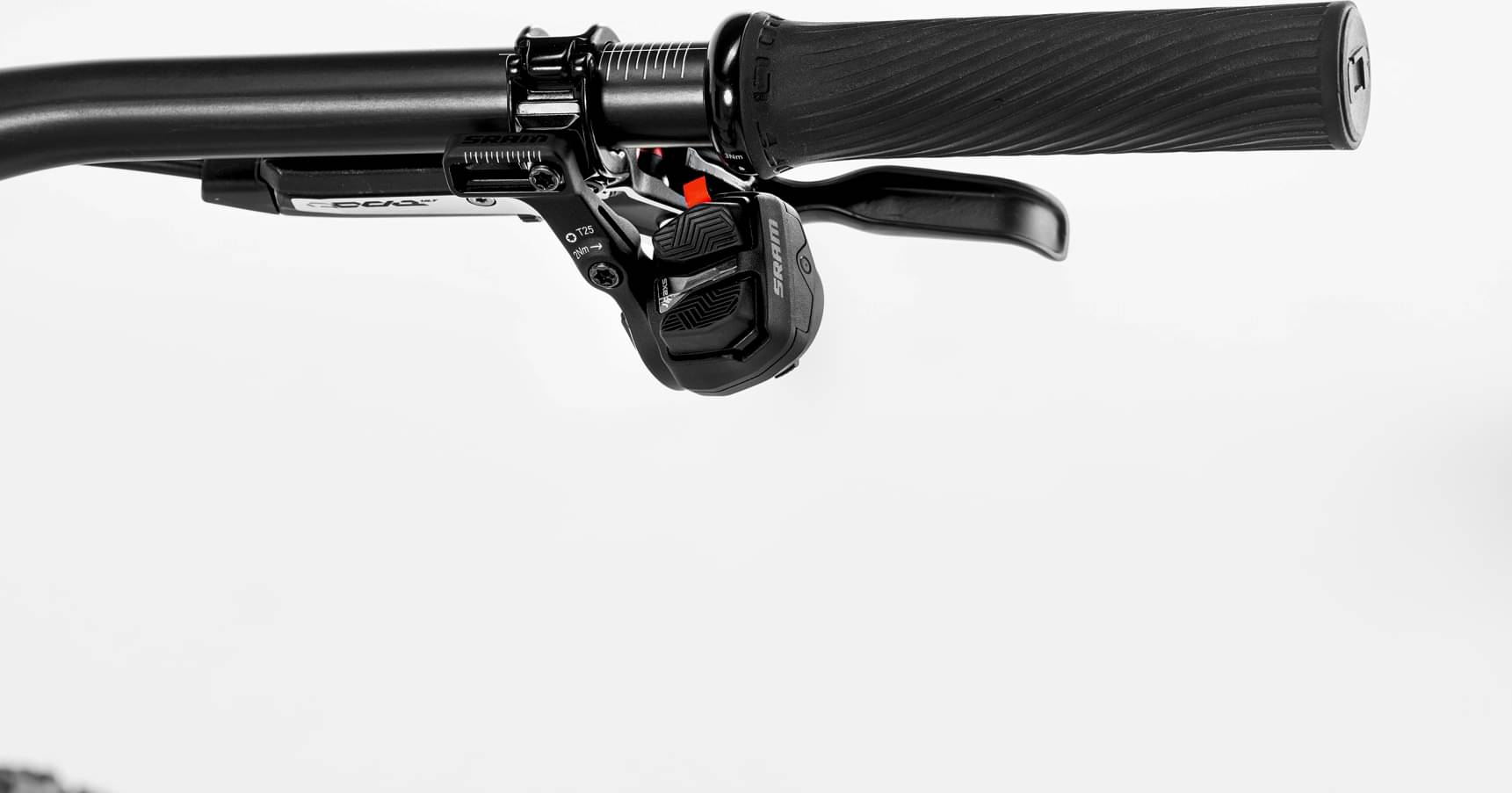

Brake Levers
SRAM Code Ultimate Stealth, SwingLink and lever pivot bearings, tools-free reach and contact point adjust

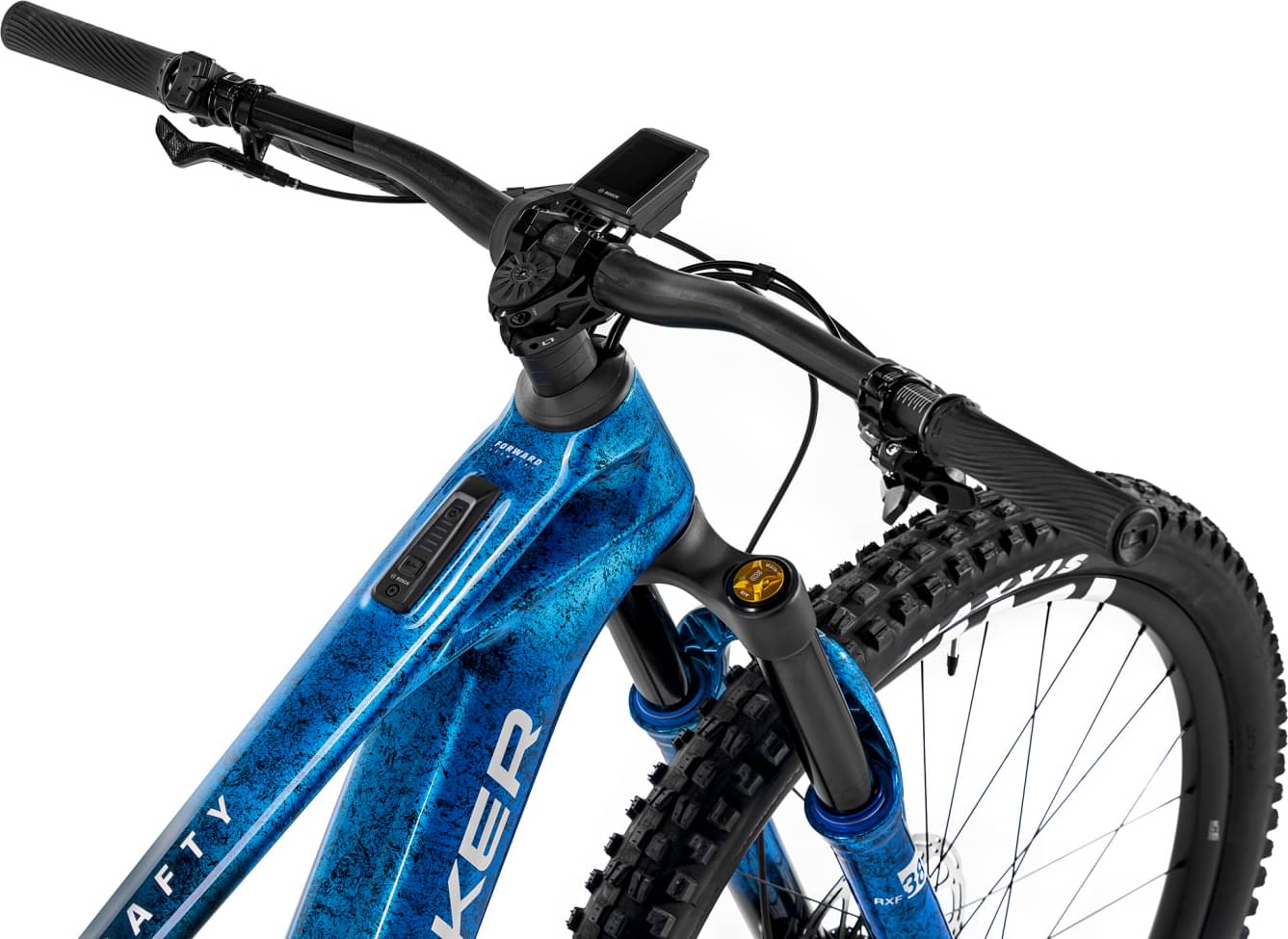

Cockpit
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seat

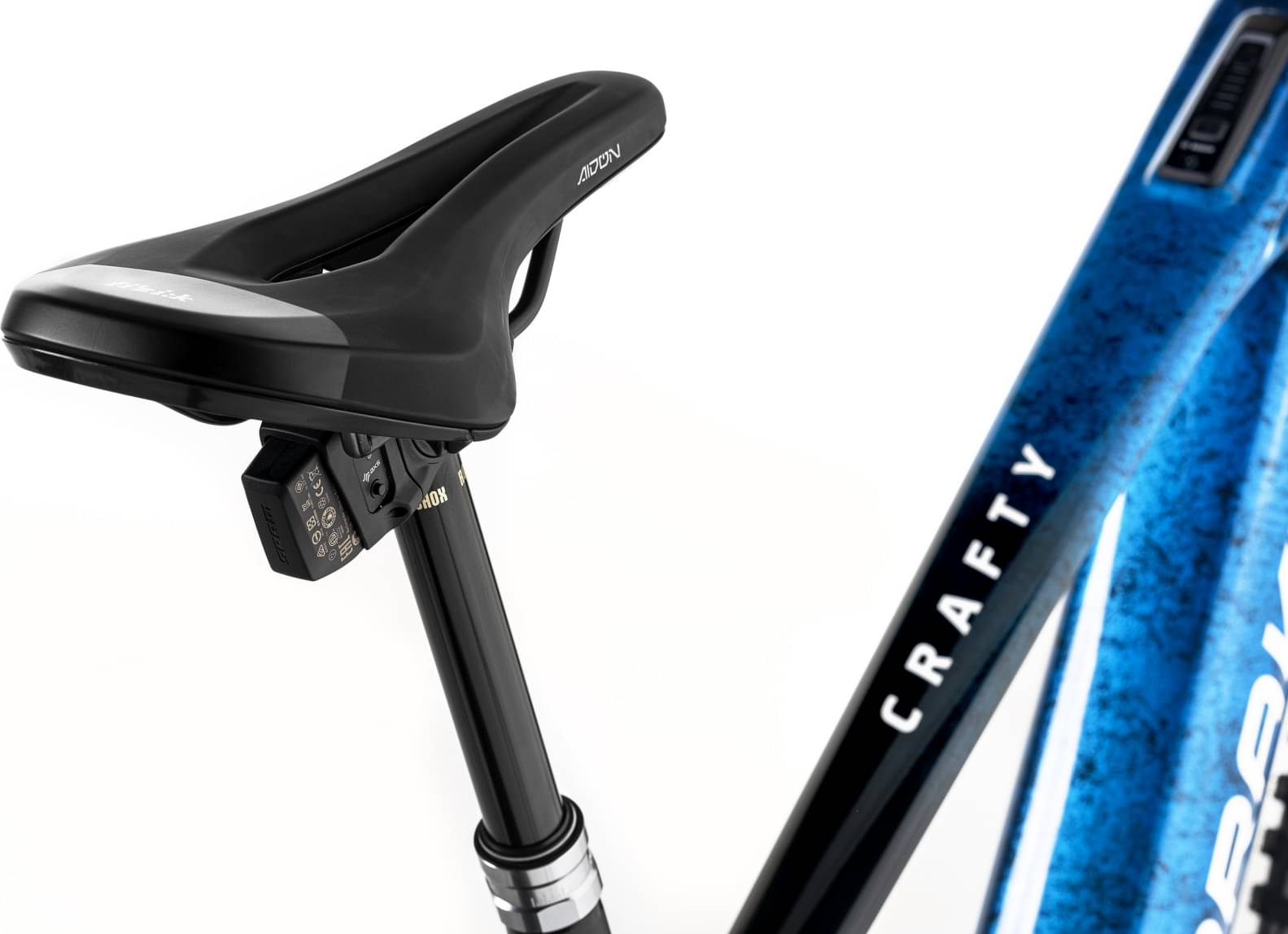

Saddle
FIZIK Terra Aidon X5 145mm

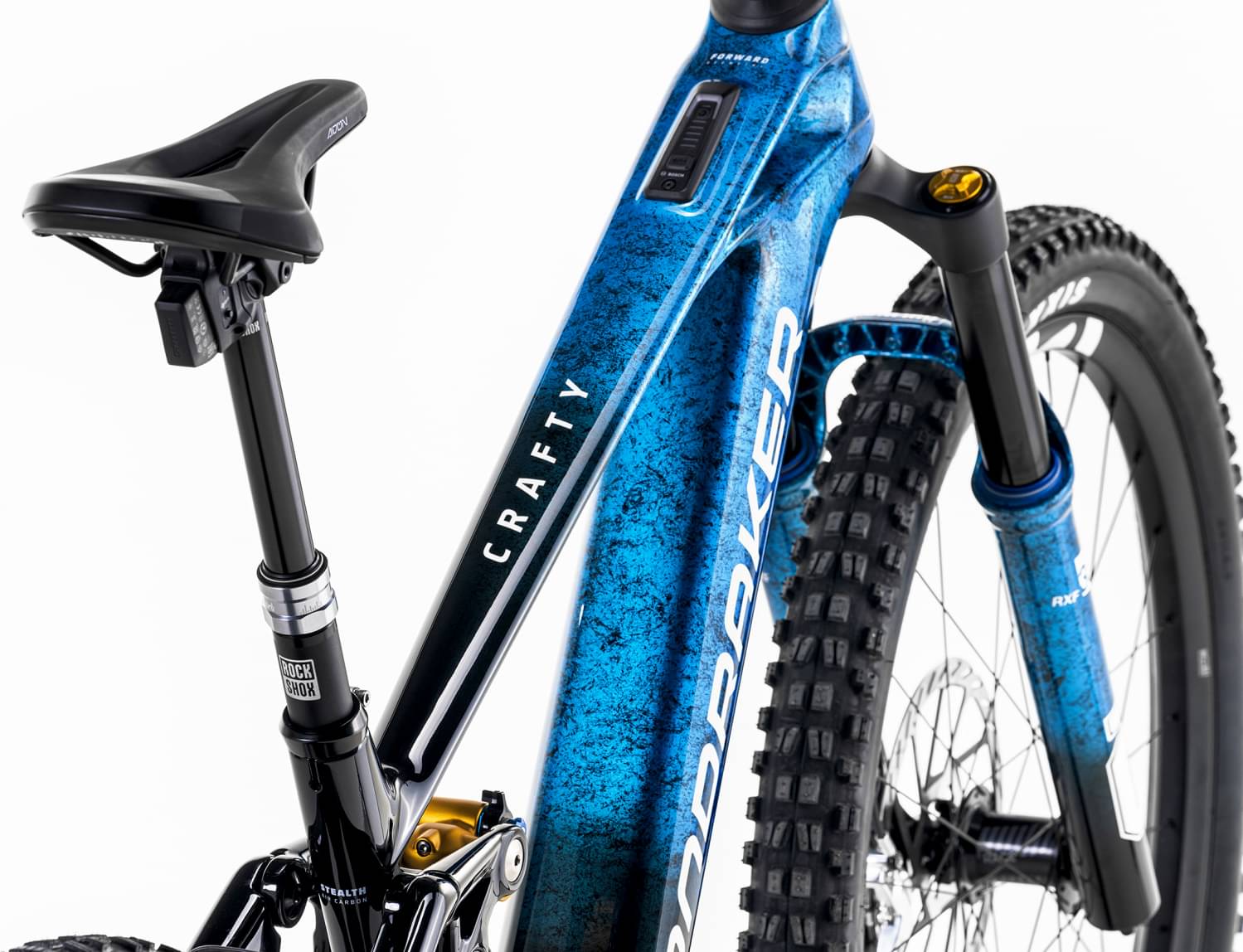

Seatpost
RockShox Reverb Stealth AXS, diameter 31.6mm, S size: 390x125mm, M size: 440x150mm, L/XL size: 440x170mm
Motor & Battery
Motor

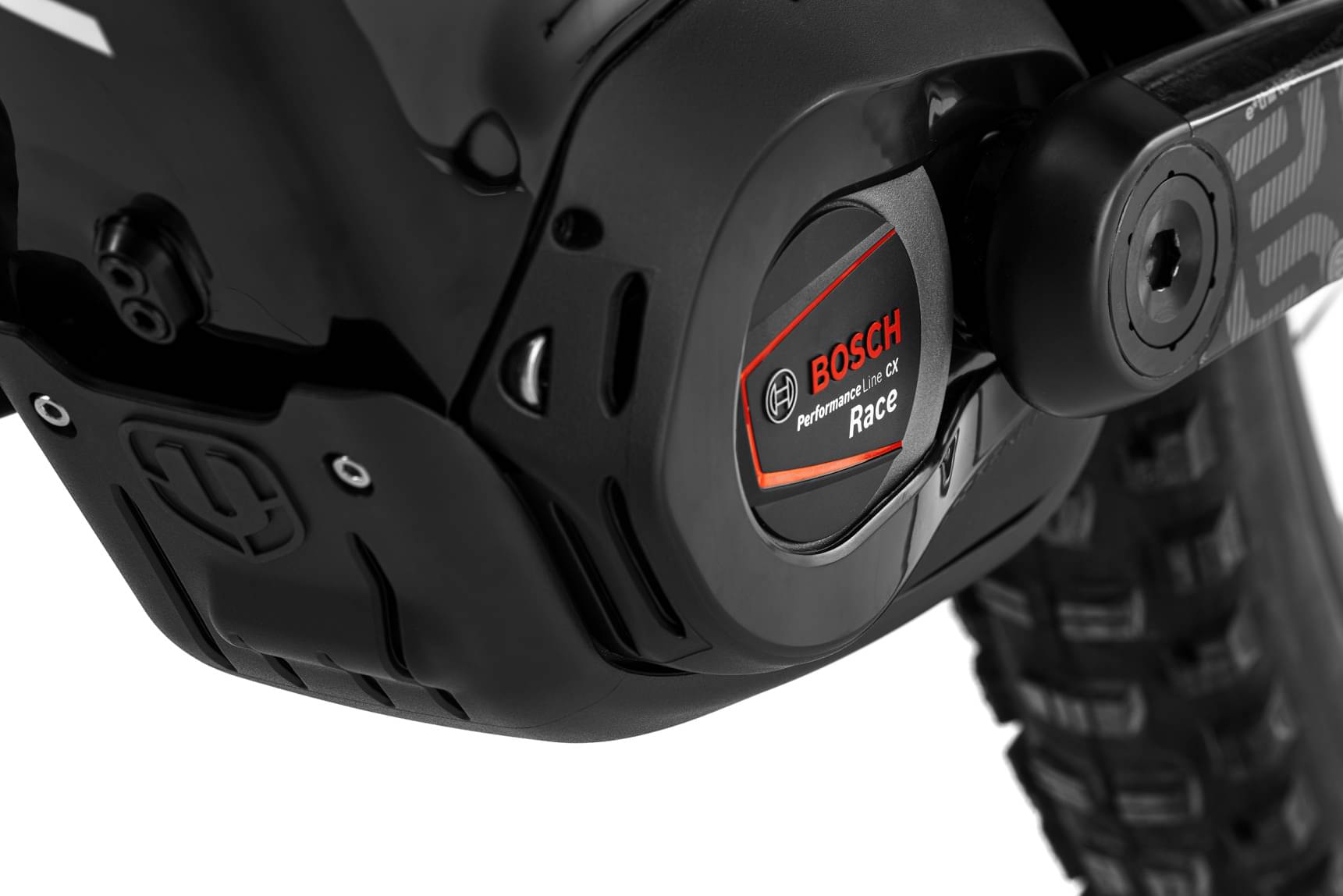

Bosch Performance Line CX-R Cruise (25Km/h) Smart System
Battery
Bosch Powertube 750Wh
Fit data

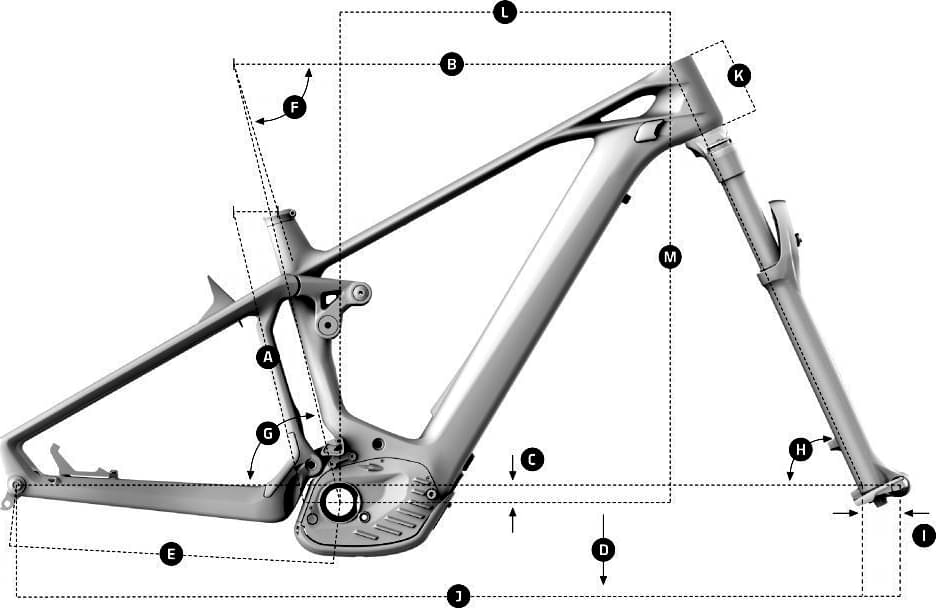

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.44 mm | 1.38 mm | 1.36 mm | 1.3 mm |
| Bottom Bracket Height | 358 mm | 358 mm | 358 mm | 358 mm |
| Front Center | 781 mm | 800 mm | 825 mm | 845 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 132 mm | 132 mm | 135 mm | 135 mm |
| Stack | 629 mm | 629 mm | 647 mm | 647 mm |
| Reach | 437 mm | 457 mm | 477 mm | 497 mm |
| Top Tube Length | 612 mm | 632 mm | 657 mm | 677 mm |
| Seat Tube Angle | 75 ° | 75 ° | 75 ° | 75 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 480 mm |
| Head Tube Angle | 64.5 ° | 64.5 ° | 64.5 ° | 64.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1232 mm | 1252 mm | 1277 mm | 1297 mm |
| Bottom Bracket Drop | 17 mm | 17 mm | 17 mm | 17 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CRAFTY CARBON UNLIMITED ELECTRIC BLUE completes the Mondraker E Crafty model. Mondraker launched 27 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
CRAFTY CARBON UNLIMITED ELECTRIC BLUE components
Fork

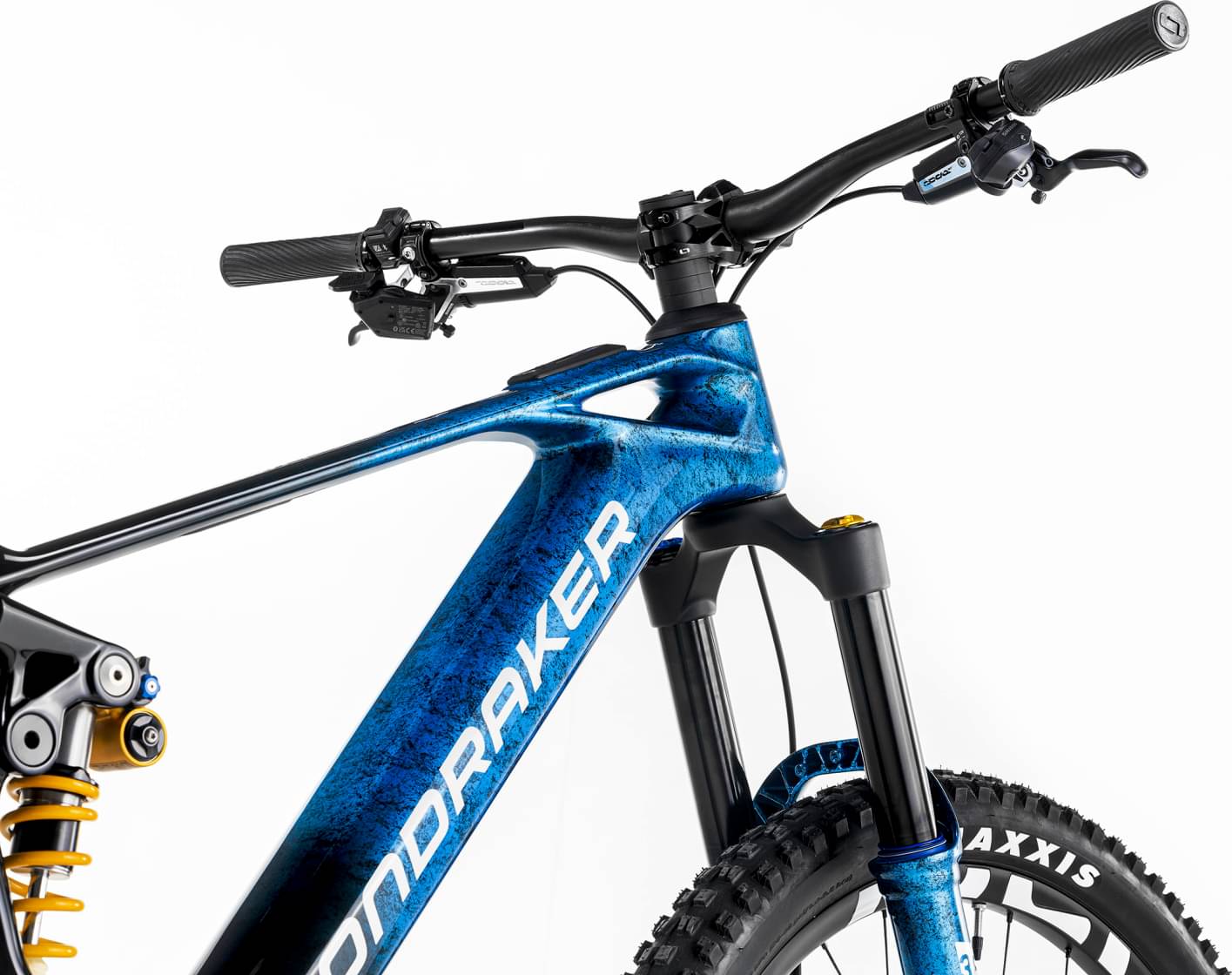

The fork installed on this bike is the Öhlins RXF38 model. The travel on this model is 170mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
Mondraker CRAFTY CARBON UNLIMITED ELECTRIC BLUE e-bike has the Öhlins TTX22M.2 NH Coil 205X65mm. Settings: model installed, and has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on CRAFTY CARBON UNLIMITED ELECTRIC BLUE are the 29″ carbon type. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, you can ride your bike with confidence.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.

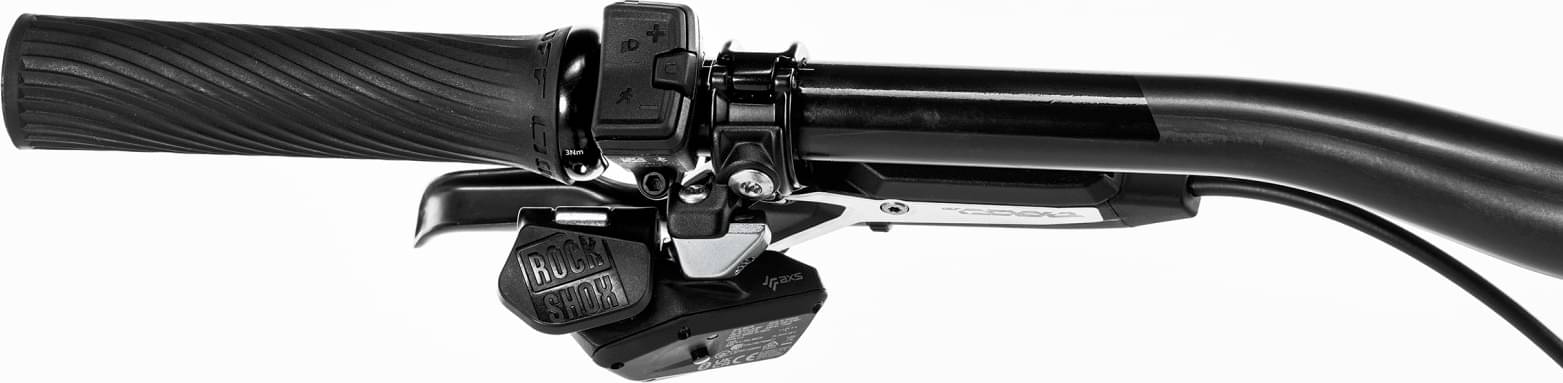

Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
