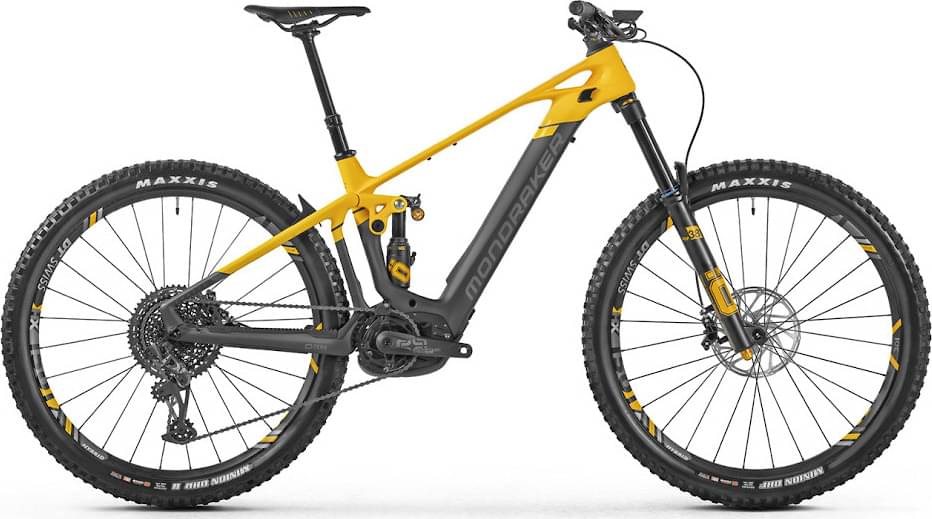

Mondraker Crafty Carbon XR 2021
2021 E-bike
Weight | 22.5 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 150mm -
Fork Öhlins
-
Groupset X01 Eagle, GX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube, integrated, non-removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
Öhlins RXF 38, TTX18 Twin Tube cartridge damper, high speed compression lever with climb mode, low-speed compression adjust, rebound adjust, ramp chamber, 44mm offset
Rear Shock
Öhlins TTX Air, high speed compression lever with climb mode, low-speed compression adjust, rebound adjust, trunnion mount, 205mm x 65mm
Drivetrain
Rear Derailleur
SRAM X01 Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION 1:1
Front Derailleur
None
Shift Levers
SRAM GX Eagle, 12-speed, X-ACTUATION 1:1, single click
Cassette
SRAM GX Eagle XG-1275, 12-speed, 10-52 tooth
Crank
e*thirteen e*Spec Plus E-Bike, 165mm length
Chain
SRAM NX Eagle, 12-speed, with Powerlock
Chain Guide
Upper slider
Pedals
None
Wheels
Front Hub
DT Swiss 240, 15x110mm Boost front, 12x148mm Boost rear with 24-tooth Ratchet freehub and XD driver
Rear Hub
DT Swiss 240, 15x110mm Boost front, 12x148mm Boost rear with 24-tooth Ratchet freehub and XD driver
Rims
DT Swiss HX1501 Spline One 29, 30mm internal width, welded aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Hybrid, straight-pull
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.6", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.6"
Brakes
Brakes
SRAM Code RSC, 4-piston, steel-backed metal sintered pads, SRAM CenterLine 200mm 6-bolt rotors
Brake Levers
SRAM Code RSC, SwingLink and lever pivot bearings, tool-free reach and contact point adjust
Cockpit
Stem
Onoff Krypton FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp
Handlebar
Onoff Krypton Carbon 1.0, 25mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Grips
Onoff Desert, single lock-on, 135mm length
Headset
ACROS custom, angular contact bearings, internal cable routing
Seat
Saddle
fi'zi:k Antares R7
Seatpost
Onoff Pija dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Motor & Battery
Motor
Bosch Performance Line CX Cruise Gen4
Battery
Bosch Powertube, integrated, non-removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 619 mm | 619 mm | 637 mm | 637 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1222 mm | 1242 mm | 1262 mm | 1282 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
Crafty Carbon XR is a Mondraker E Crafty model. Mondraker launched 27 e-bikes of this model so far. Take a sneak peek at all Mondraker E Crafty e-bikes models from 2021, by clicking here.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 22.5 kg (49.6 lbs), Mondraker e-bike is slightly lighter than average. In conclusion, the average Enduro e-bike weighs 4.09% more than Crafty Carbon XR.
Overview of components
Fork
Mondraker Crafty Carbon XR 2021 e-bike is equipped with the Öhlins fork, and has 170mm travel. Bike forks absorb the shocks and give you a smooth and pleasant ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The Crafty Carbon XR has a rear shock with a travel of 150mm. The model Öhlins TTX Air is the one installed in this e-bike. Rear shocks give you increased comfort, control, and traction, which is important when cornering or braking. This allows you to ride faster on bumpy roads. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
The wheels on Crafty Carbon XR are the 29″ aluminum type. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. With Hydraulic Disc brakes, you’ll be able to stop on a dime, even in wet or icy conditions. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Mondraker model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
