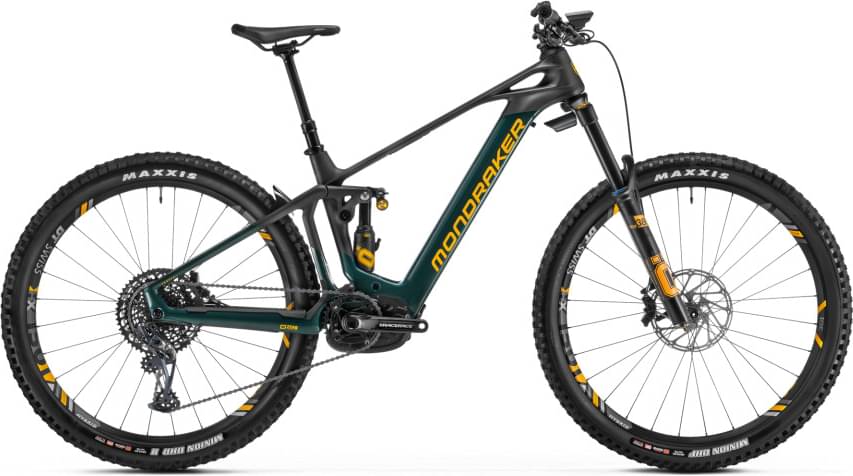

Mondraker CRAFTY CARBON XR 2022
2022 E-bike
Weight | 23.1 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 170mm -
Travel Rear 150mm -
Fork Öhlins RXF38
-
Groupset GX Eagle, e*thirteen TRS Race -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube 750Wh -
Brakes Hydraulic Disc
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crafty Stealth Air full Carbon, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Suspension Fork
Öhlins RXF 38 M.2 29, 170mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Rear Shock
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Drivetrain
Shift Levers
SRAM Trigger GX Eagle, 12s, X-Actuation 1:1, single click
Crank
E.13 TRS Race carbon ebike, 165mm
Chain
SRAM NX Eagle, 12s, Powerlock
Wheels
Front Hub
Mavic, Boost 15x110mm, IS 6 bolts
Rear Hub
Mavic, Boost 12x148mm, ID360 Ratched system, IS 6 bolts, XD freehub
Rims
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes
Mavic straightpull duble butted, contactless lacing
Tires
Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Brakes
Brakes
SRAM G2 RSC, 4-piston caliper, Centerline 200mm IS 6 bolts one-piece rotor, steel-backed organic pads
Brake Levers
SRAM G2 RSC, SwingLink and lever pivot bearings, tools-free reach and contact point adjust
Cockpit
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Diamond, 1lock-on, 135mm
Headset
Acros custom for 1-1/2" head tube, angular contact bearings 40x52x7, Internal cable routing
Seat
Saddle
FIZIK Terra Aidon X5 145mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 387x125mm, M size: 425x150mm, L/XL size: 465x170mm
Motor & Battery
Motor
Bosch Performance Line CX Cruise (25Km/h) Bosch Smart System
Battery
Bosch Powertube 750Wh
Remote
Bosch Kiox 300
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | Frame size | SM | MD | LG | XL |
|---|---|---|---|---|---|
| Wheels | 29" | 29" | 29" | 29" | 29" |
Model Overview
CRAFTY CARBON XR is part of the Mondraker E Crafty model. 27 e-bikes variations carry this model name so far. Check out the entire range from 2022 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Enduro e-bikes average weight
If we make a quick analysis of the average weight of an Enduro e-bike, we get 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
slightly lighter than average, CRAFTY CARBON XR has a weight of 23.1 kg (50.93 lbs). To sum up, it’s 1.39% lighter than the average weight of Enduro e-bikes.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
CRAFTY CARBON XR components
Fork
The Öhlins RXF38 is included from the factory. It has a travel distance of 170mm. Bike forks are great for shock absorption and provide you with a smooth ride. To sum up, when buying a bicycle, make sure you get a fork that is capable of delivering decent travel.
Rear Shock
The CRAFTY CARBON XR has a rear shock with a travel of 150mm. The model Öhlins TTX Air 205X65mm. Settings: high is the one installed in this e-bike. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels size
The CRAFTY CARBON XR 2022 e-bike is equipped with 29″ aluminum wheels when leaving the factory. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
When you want to stop the bike in time, the brakes are vital. The CRAFTY CARBON XR has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Dropper post
Mondraker CRAFTY CARBON XR includes a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
