Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Float 36
-
Groupset SX Eagle, Race Face -
Suspension Full -
Motor Bosch 250W 75Nm mid-drive -
Battery Bosch Powertube -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX 36 Float FIT GRIP EVOL, e-bike optimized, 44mm offset
Rear Shock
FOX Float DPX2 LV EVOL Performance, 205x65mm Trunnion mount
Drivetrain
Rear Derailleur
SRAM SX Eagle 12-speed
Front Derailleur
None
Shift Levers
SRAM SX Eagle 12-speed
Cassette
SRAM PG-1210 Eagle 11-50 tooth 12-speed
Crank
Race Face Aeffect e-Bike, 165mm
Chain
SRAM SX Eagle 12-speed
Chain Guide
None
Pedals
N/A
Wheels
Front Hub
DT Swiss 370, 15x100mm front and 12x148mm rear
Rear Hub
DT Swiss 370, 15x100mm front and 12x148mm rear
Rims
DT Swiss H1900 Spline 29, 30mm internal width, tubeless ready, 28 hole
Spokes
DT Swiss Hybrid straight pull
Tires
Maxxis Minion DHF 2.6" tubeless ready, 3C MaxxTerra, EXO+, 60TPI, folding bead front and Maxxis Minion DHR II 2.6", tubeless ready, 3C MaxxTerra, EXO+, 60TPI, folding bead rear
Brakes
Brakes
Shimano MT520 with 203mm RT66 six-bolt rotors, resin pads
Brake Levers
Shimano MT501
Cockpit
Stem
Onoff Krypton FG 30mm reach, 6061 forged alloy, 35mm clamp
Handlebar
OnOff Sulfur 1.0 double butted 6061 alloy, rise: 20mm, width: 780mm, 9° backsweep, 5° upsweep, 31.8mm clamp
Grips
Onoff Desert, 1lock-on, 135mm
Headset
Onoff Saturn, ACB sealed bearings, top 41x30.2x7x45°x45°, bottom 51.9x40x8x45°x45°
Seat
Saddle
SDG Bel-Air 2.0, Cro-Mo rail, PU foam
Seatpost
Onoff Pija, 337x100mm on S, 387x125mm on M, 425x150mm on L/XL
Motor & Battery
Motor
Bosch Performance Line CX Gen4
Battery
Bosch Powertube
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 345 mm | 345 mm | 345 mm | 345 mm |
| Stack | 619 mm | 619 mm | 637 mm | 637 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 73.5 ° | 73.5 ° | 73.5 ° | 73.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1222 mm | 1242 mm | 1262 mm | 1282 mm |
| Bottom Bracket Drop | 29 mm | 29 mm | 29 mm | 29 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

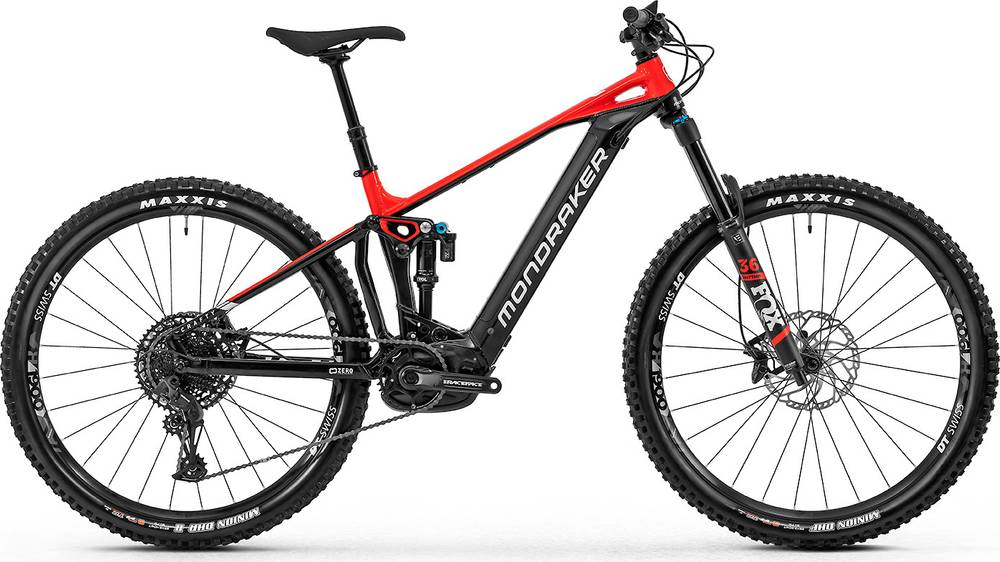

Crafty R is a Mondraker E Crafty model. There are 27 e-bikes that carry this model name. You can get a glimpse at all models from 2020, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Enduro e-bikes average weight
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Mondraker Crafty R it’s weighing 24.8 kg (54.67 lbs). At this weight, is a bit heavier than average. In short, the average Enduro e-bike weight is 5.89% lower than this one.
Crafty R components
Fork
The Fox Float 36 is included from the factory. It has a travel distance of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. To sum it all, when buying a bike, ensure that you look for a fork capable of decent travel.
Rear Shock
As for the rear shock, this e-bike has the FOX Float DPX2 LV EVOL Performance model, with a travel of 150mm. Bike rear shocks are a great way to increase comfort on the bike and give you more control when riding on technical trails. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels
When it comes to wheels, the Crafty R e-bike is equipped with the 29″ aluminum model. With 29″ wheels, bumps will feel lighter and you’ll gain more speed on descends, compared to smaller wheel-sized bikes. However, if you’re not a tall person, you might find it difficult to adapt to this wheel size.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
