Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Performance Float 38
-
Groupset GX Eagle, NX Eagle -
Suspension Full -
Motor Bosch 250W 85Nm mid-drive -
Battery Bosch Powertube, integrated, removable -
Drivetrain 1 × 12 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 38 Performance, GRIP damper, e-bike tuned, 3-position lever, micro-adjust compression settings, low-speed rebound adjust, 44mm offset
Rear Shock
FOX FLOAT DPX2 Performance, 3-position lever, low-speed rebound adjust, trunnion mount, 205mm x 65mm
Drivetrain
Rear Derailleur
SRAM GX Eagle, 12-speed, Type 3 roller bearing clutch, cage lock, X-ACTUATION 1:1
Front Derailleur
None
Shift Levers
SRAM NX Eagle, 12-speed, X-ACTUATION 1:1, single click
Cassette
SRAM SX Eagle PG-1210, 12-speed, 11-50 tooth
Crank
Race Face Aeffect E-Bike, 165mm length
Chain
SRAM SX Eagle, 12-speed, with Powerlock
Chain Guide
None
Pedals
None
Wheels
Front Hub
DT Swiss 370, 15x110mm Boost front, 12x148mm Boost rear with 3-pawl freehub and HG driver
Rear Hub
DT Swiss 370, 15x110mm Boost front, 12x148mm Boost rear with 3-pawl freehub and HG driver
Rims
DT Swiss H1900 Spline 29, 30mm internal width, sleeved aluminum, tubeless ready, 28 hole
Spokes
DT Swiss Hybrid, straight-pull
Tires
Front: Maxxis Minion DHF, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.6", Rear: Maxxis Minion DHR II, 3C MaxxTerra, EXO+, TR, 120 TPI, folding bead, 29" x 2.6"
Brakes
Brakes
SRAM G2 R, 4-piston, steel-backed organic pads, SRAM CenterLine 200mm 6-bolt rotors
Brake Levers
SRAM G2 R, tool-free reach adjust
Cockpit
Stem
Onoff Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp, 0° rise
Handlebar
Onoff Sulfur 1.0, double-butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Grips
Onoff Desert, single lock-on, 135mm length
Headset
Onoff Saturn, sealed angular contact bearings
Seat
Saddle
SDG Bel-Air 3.0, EVA foam, steel rails
Seatpost
Onoff Pija dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Motor & Battery
Motor
Bosch Performance Line CX Cruise Gen4
Battery
Bosch Powertube, integrated, removable
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Stack | 619 mm | 619 mm | 637 mm | 637 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1222 mm | 1242 mm | 1262 mm | 1282 mm |
| Bottom Bracket Drop | 24 mm | 24 mm | 24 mm | 24 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model

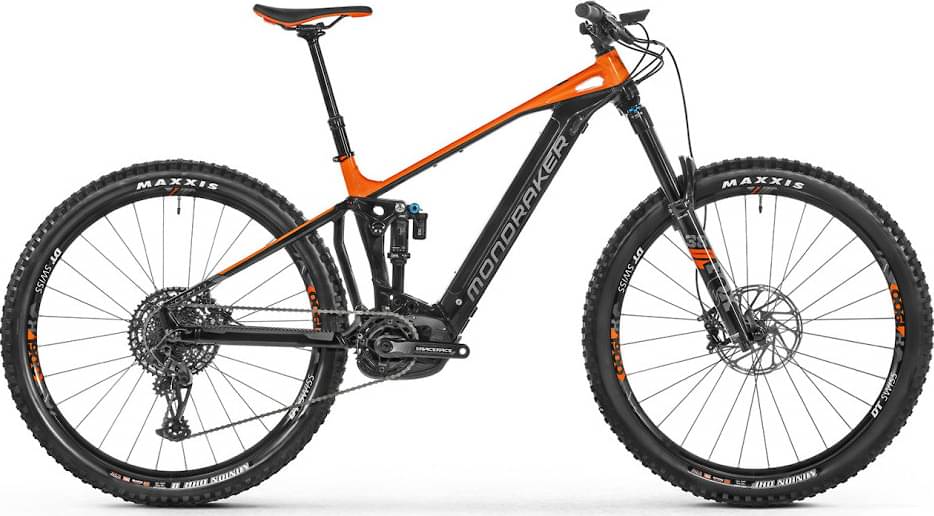

Crafty R is a Mondraker E Crafty model. Mondraker released 27 e-bikes variations of this model so far. Check out the entire range from 2021 of this model, by clicking this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
If you want an acceptable Enduro e-bike you should know that the average price is 4785$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Enduro e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Average weight for Enduro e-bikes
On a deeper look, we notice that the average weight of an Enduro e-bike is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
With a weight of 24.9 kg (54.9 lbs), Mondraker e-bike is a bit heavier than average. To sum up, it’s 6.32% heavier than the average weight of Enduro e-bikes.
Overview of components
Fork
The Crafty R comes factory-installed with the Fox Performance Float 38 fork. This has a travel range of 160mm. Bike forks are great for shock absorption and provide you with a smooth ride. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
Mondraker Crafty R e-bike has the FOX FLOAT DPX2 Performance model installed, and has a travel of 150mm. Bike rear shocks increase the riding comfort, and also give you more control over technical trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Mondraker Crafty R 2021, has a 29″ aluminum model. These wheels are more forgiving when you go over roots, rocks, bumps, or other obstacles you encounter on your ride. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
For your safety, it is important to have quality breaks on your bike. Mondraker Crafty R has Hydraulic Disc brakes installed. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, you can ride your bike with confidence.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, it won’t take much to find one that’s right for you.
Dropper post
Every bike should have a dropper post, and this one does. If you are a technical rider, a dropper post is essential. A dropper post provides increased safety while riding. The lever system, allows you to move your saddle up and down, which is very useful on climbs and descends.
