Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Öhlins RXF38
-
Groupset Ultegra Di2, XT -
Suspension Full -
Motor Shimano mid-drive -
Battery Simplo internal 720Wh G3 -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Crusher Stealth Air Carbon front triangle, Stealth Alloy rear triangle, e-Bike Optimized Zero Suspension System, 150mm travel, Forward Geometry, integrated internal non-removable battery, Boost 12x148mm rear axle, tapered head tube, one-piece Monoblock upper link, HHG internal cable routing, MAX capacity sealed bearings, oversize 17mm axles, integrated dropout speed sensor, exclusive plastic motor covers.
Suspension Fork
Öhlins RXF 38 M.2 29, 160mm, TTX18 Twin Tube cartridge, tapered steerer tube, Boost 15x110mm axle, offset 44mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload, ramp chamber
Rear Shock
Öhlins TTX Air 205X65mm. Settings: high speed compression lever with climb mode, low-speed compression, rebound, air preload. Trunnion top mount, 25x10mm bottom bushings
Drivetrain
Rear Derailleur
Shimano Deore XT M8150-GS Di2 12s shadow plus, direct mount
Shift Levers
Shimano XT Di2 SW-M8150
Crank
Shimano Steps XT FC-8150 ebike, 165mm, Rings: Shimano EP801, 34T, 104 BCD
Bottom Bracket
BSA, 73mm, threaded
Chain
Shimano Deore XT M8100
Wheels
Front Hub
Mavic, Boost 15x110mm, Center Lock
Rear Hub
Mavic, Boost 12x148mm, ID360 Ratchet system, Center Lock, MS freehub
Rims
Mavic E-Deemax S 29, 30mm internal width, Maxtal welded, PFP, tubeless, 28 spokes
Spokes
Mavic straight-pull double butted, contactless lacing
Tires
Front: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead, Rear: Maxxis Minion DHF 29x2.6, tubeless ready, 3C MAXX TERRA, EXO+ Protection, 120TPI, folding bead
Brakes
Brakes
Front: Shimano Deore XT M8120, 4-piston caliper, MT-800 Ice-Tech 203mm Center Lock, Rear: Shimano Deore XT M8120, 4-piston caliper, MT-800 Ice-Tech 203mm Center Lock
Brake Levers
Shimano Deore XT M8120
Cockpit
Stem
Onoff Krypton FG 30mm, CNC, 31.8mm barbore
Handlebar
Onoff Krypton Carbon 1.0, rise: 25mm, width: 800mm, 9º backsweep, 5º upsweep, 31.8mm barbore
Grips
Onoff Desert, 1lock-on, 135mm
Headset
Acros AZF-601 R1 Block Lock 120°, ZS44/28.6 top, ZS56/40 bottom
Seat
Saddle
FIZIK Terra Aidon X5 145mm
Seatpost
Onoff Pija dropper internal, diameter 31.6mm, S size: 405x95-125mm, M size: 458x120-150mm, L size: 498x140-170mm, XL size: 558x170-200mm + SHIMANO SL-MT800-IL lever
Motor & Battery
Motor
Shimano STEPS EP801
Battery
Simplo internal 720Wh G3
Fit data

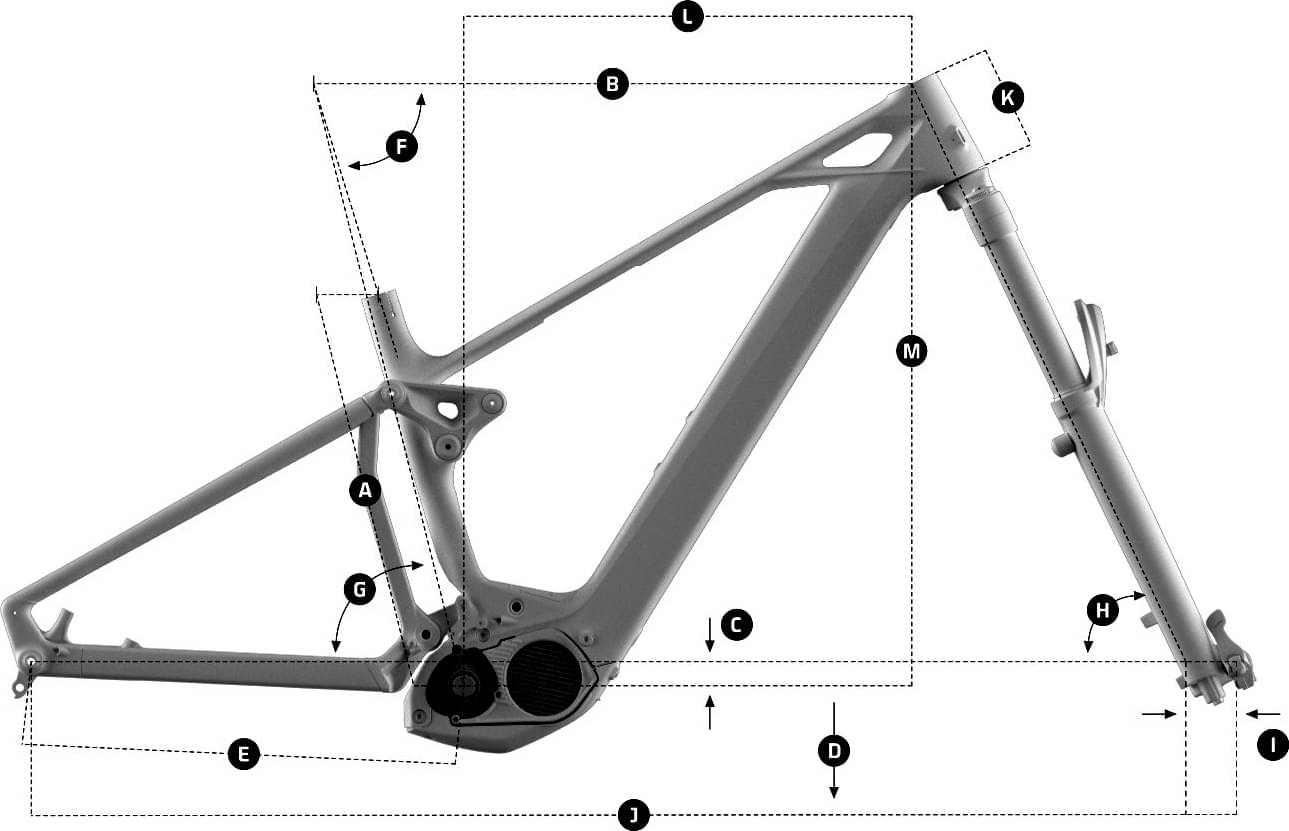

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.41 mm | 1.35 mm | 1.32 mm | 1.27 mm |
| Bottom Bracket Height | 350 mm | 350 mm | 350 mm | 350 mm |
| Front Center | 782 mm | 802 mm | 831 mm | 851 mm |
| Rake | 44 mm | 44 mm | 44 mm | 44 mm |
| Trail | 126 mm | 126 mm | 123 mm | 123 mm |
| Stack | 629 mm | 629 mm | 642 mm | 642 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65 ° | 65 ° | 65 ° | 65 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1233 mm | 1253 mm | 1282 mm | 1302 mm |
| Bottom Bracket Drop | 25 mm | 25 mm | 25 mm | 25 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
CRUSHER RR is part of the Mondraker E Crusher model. There are 3 e-bikes that carry this model name. You can get a glimpse at all models from 2024, by clicking on this link.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Enduro e-bikes average weight
Enduro e-bikes weigh an average of 23.3 kg (51.37 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
With a weight of 23.4 kg (51.59 lbs), Mondraker e-bike is slightly heavier than average. In short, the average Enduro e-bike weight is 0.43% lower than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork
The fork installed on this bike is the Öhlins RXF38 model. The travel on this model is 160mm. Bike forks are good shock absorbers and provide a smooth ride and a great experience. In short, make sure you choose one with a decent fork when you purchase your dream bike.
Rear Shock
The shock that’s installed on this e-bike is Öhlins TTX Air 205X65mm. Settings: high, with a travel distance of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. To sum up, get a full-suspension bike if you want the smoothest rides.
Wheels
The wheels on CRUSHER RR are the 29″ aluminum type. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, 29″ wheels will make your e-bike react slower to obstacles you may encounter.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, your safety is in good hands.
Sizes
Mondraker CRUSHER RR e-bike has 4 sizes, in the range of 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
A dropper post is included with the CRUSHER RR. Therefore, climbing or descending will be a breeze.
