Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Aluminum -
Wheels 29" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Rhythm Float 36
-
Groupset Deore, Shimano -
Suspension Full -
Motor Shimano 250W 85Nm mid-drive -
Battery Simplo, integrated, non-removable, Optional external battery: Simplo 360 Wh -
Drivetrain 1 × 12 -
Brakes Mechanical Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Aluminum
Suspension Fork
FOX FLOAT 36 Rhythm, EVOL, GRIP damper, e-bike optimized, Sweep Adjust compression lever, low-speed rebound adjust, 44mm offset
Rear Shock
FOX FLOAT DPS Performance, 3-position lever, low-speed rebound adjust, trunnion mount, 205mm x 65mm
Drivetrain
Rear Derailleur
Shimano Deore M6100, 12-speed, SGS cage, SHADOW RD+
Front Derailleur
None
Shift Levers
Shimano Deore M6100, 12-speed, RAPIDFIRE+
Cassette
Shimano Deore M6100, 12-speed, 10-51 tooth, HYPERGLIDE+
Crank
Shimano STEPS EM600, 165mm length
Bottom Bracket
STEPS, press-fit
Chain
Shimano Deore M6100, 12-speed, with QUICK-LINK
Chain Guide
None
Pedals
None
Wheels
Front Hub
Formula, sealed bearings, DC711 15x110mm Boost front, EHL148 12x148mm Boost rear with MICRO SPLINE driver
Rear Hub
Formula, sealed bearings, DC711 15x110mm Boost front, EHL148 12x148mm Boost rear with MICRO SPLINE driver
Rims
MDK-HP1, 30mm internal width, tubeless ready, 32 hole
Spokes
CN round stainless steel
Tires
Maxxis Rekon, Dual Compound, EXO, TR, 60 TPI, folding bead, 29" x 2.6"
Brakes
Brakes
Shimano MT420, 4-piston, resin pads, Shimano RT66 203mm 6-bolt rotors
Brake Levers
Shimano M4100, alloy lever, SERVO WAVE, tooled reach adjust
Cockpit
Stem
Onoff Sulfur FG, 6061 forged alloy, 30mm length, 31.8mm bar clamp, 0° rise
Handlebar
Onoff Sulfur 1.0, double-butted 6061 alloy, 20mm rise, 780mm width, 9° backsweep, 5° upsweep, 31.8mm clamp diameter
Grips
Onoff Twin, single lock-on, 135mm length
Headset
Onoff Saturn, sealed angular contact bearings
Seat
Saddle
Mondraker e-MTB custom
Seatpost
Onoff Pija dropper, Drop: 125mm (SM), 150mm (MD), 170mm (LG/XL)
Motor & Battery
Motor
Shimano STEPS EP800
Battery
Simplo, integrated, non-removable, Optional external battery: Simplo 360 Wh
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.33 mm | 1.31 mm | 1.26 mm |
| Bottom Bracket Height | 336 mm | 336 mm | 336 mm | 336 mm |
| Stack | 619 mm | 619 mm | 637 mm | 637 mm |
| Reach | 447 mm | 467 mm | 487 mm | 507 mm |
| Top Tube Length | 602 mm | 622 mm | 647 mm | 667 mm |
| Seat Tube Angle | 76 ° | 76 ° | 76 ° | 76 ° |
| Seat Tube Length | 380 mm | 420 mm | 450 mm | 490 mm |
| Head Tube Angle | 65.5 ° | 65.5 ° | 65.5 ° | 65.5 ° |
| Head Tube Length | 110 mm | 110 mm | 130 mm | 130 mm |
| Chainstay Length | 452 mm | 452 mm | 452 mm | 452 mm |
| Wheelbase | 1222 mm | 1242 mm | 1262 mm | 1282 mm |
| Bottom Bracket Drop | 38 mm | 38 mm | 38 mm | 38 mm |
| Wheels | 29" | 29" | 29" | 29" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview

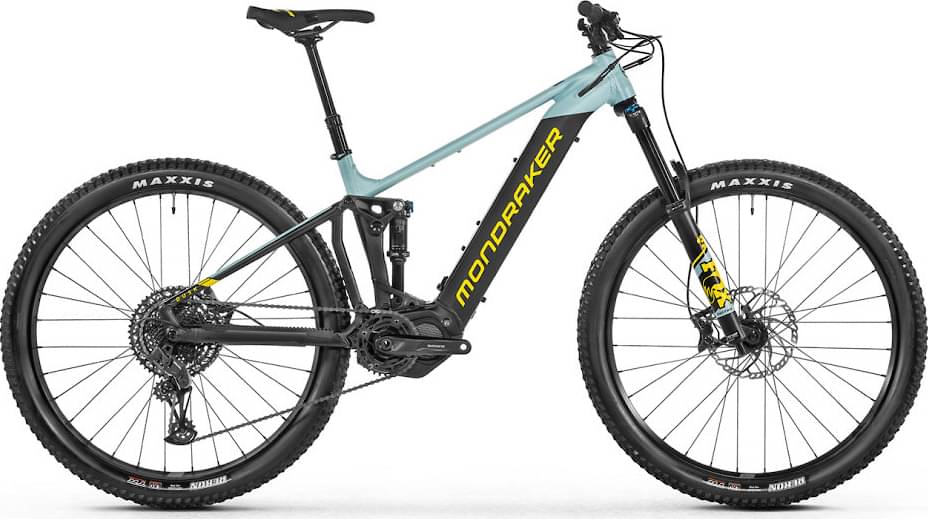

Dusk R is a Mondraker E Dusk model. 9 e-bikes variations carry this model name so far. Take a sneak peek at all Mondraker E Dusk e-bikes models from 2021, by clicking here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Enduro e-bikes average price
According to our calculations, the average cost of an Enduro e-bike that is reliable is 4785$. However, you could also get a good Enduro e-bike even if you pay a lower amount than the average price. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Enduro e-bikes
Enduro e-bikes weigh an average of 23.42 kg (51.63 lbs). You will have a greater advantage on climbs if your bike is easier than the average. On descents, however, a heavier bike will give you extra speed.
Mondraker Dusk R it’s weighing 23.6 kg (52.03 lbs). At this weight, is slightly heavier than average. In conclusion, the average Enduro e-bike weighs 0.77% less than Dusk R.
Dusk R components
Fork
The Dusk R comes factory-installed with the Fox Rhythm Float 36 fork. This has a travel range of 160mm. Bike forks are perfect to absorb shocks and provide a great riding experience overall. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
The shock that’s installed on this e-bike is FOX FLOAT DPS Performance, with a travel distance of 150mm. Rear shocks offer better comfort, better traction, and better cornering. This allows for quicker riding on rough roads and trails. In short, if you want smooth rides, get a full-suspension bicycle.
Wheels
As for the wheels, Mondraker Dusk R 2021, has a 29″ aluminum model. Having 29″ wheels means that you need less fork travel, leading to a reduction of the pedal bob effect. However, the 29″ wheels will add a little more weight to the e-bike itself.
Brakes
Nothing is more important on a bike than its ability to brake properly. Mondraker Dusk R is equipped with Mechanical Disc brakes. They are much easier to maintain than hydraulic disk brakes. However, they don’t have the stopping power of hydraulic brakes.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
Dropper post
The Mondraker model is also equipped with a dropper post. If used correctly, a dropper post gives you more faith, maneuverability, and greater control over your bike.
