Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle X20 IX350Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Suspension Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Drivetrain
Rear Derailleur
SRAM Rival 1, 11s
Shift Levers
SRAM Rival 1 11s, Exact actuation
Crank
SRAM Rival 1 DUB GLS DUB Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm., Rings: SRAM X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom Bracket
Mahle pressfit, sealed bearings, w/ torque sensor
Chain
SRAM PC-1110, 11s, Powerlock
Wheels
Front Hub
Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear Hub
Mahle X20 Drive Unit, HG freehub
Rims
MDK-XG1, 23mm internal width, tubeless ready, 28 spokes
Spokes
CN round stainless steel
Tires
Front: Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall, Rear: Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall
Brakes
Brakes
Front: SRAM Rival 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Rival 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Rival, tooled reach adjust, aluminum levers
Cockpit
Stem
OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S: 70mm M: 70mm, L: 80mm, XL: 90mm
Handlebar
OnOff Barium gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm
Grips
Barium gravel dark grey
Headset
OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
FIZIK Terra Argo X7 150mm
Seatpost
OnOff Barium gravel microadjust diameter 27.2mm, length 400mm
Motor & Battery
Motor
Mahle X20 Drive Unit
Battery
Mahle X20 IX350Wh
Fit data

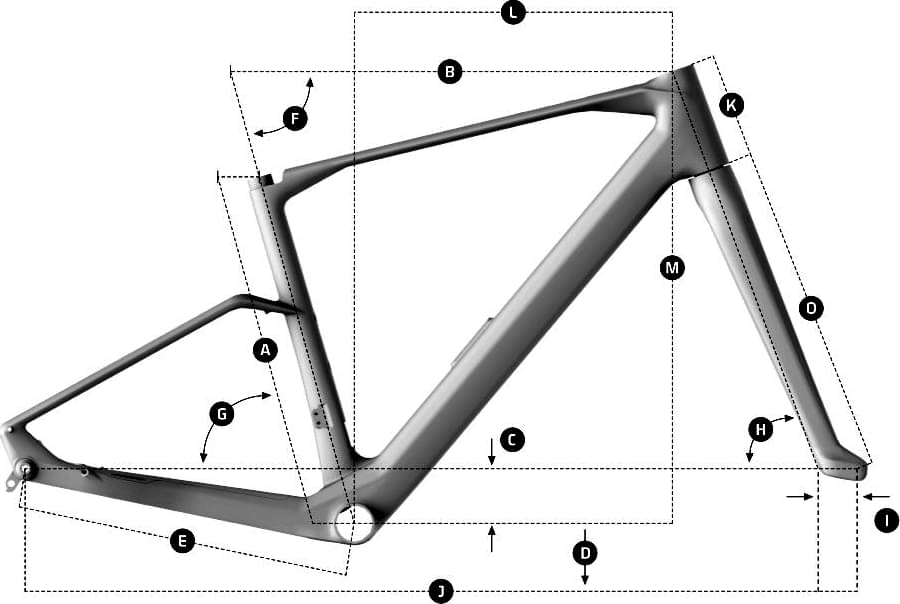

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.42 mm | 1.4 mm | 1.42 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 619 mm | 641 mm | 666 mm | 694 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 79 mm | 79 mm | 79 mm |
| Stack | 554 mm | 582 mm | 601 mm | 634 mm |
| Reach | 399 mm | 411 mm | 430 mm | 446 mm |
| Top Tube Length | 556 mm | 576 mm | 601 mm | 626 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 460 mm | 500 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 150 mm | 175 mm | 210 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1040 mm | 1062 mm | 1088 mm | 1116 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
DUSTY R is a Mondraker E Dusty model. Mondraker launched 5 e-bikes of this model so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
When cycling always take safety very seriously. Wear a helmet, obey the traffic rules and wear hi-vis clothes. In short, take care of yourself so others can take care of you.
Average price for Gravel e-bikes
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, even though the average price of a Gravel e-bike is lower, you might still be able to get a top-quality e-bike. In short, before purchasing your ideal e-bike do some research about its components, and also check for reviews online.
Gravel e-bikes average weight
On a deeper look, we notice that the average weight of a Gravel e-bike is 13.58 kg (29.94 lbs). A lighter bike will give you some extra advantage when climbing. A heavier bike will have more speed for descents.
Weighing 12.8 kg (28.22 lbs), the DUSTY R model is a bit lighter than average. In short, the average Gravel e-bike weight is 6.09% higher than this one.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
DUSTY R components
Fork material
The fork on this e-bike is made out of carbon, so, it won’t add up to much weight to your e-bike. However, the price you have to pay for a carbon fork is considerably higher.
Wheels size
The wheels on DUSTY R are the 700c aluminum type. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Nothing is more important on a bike than its ability to brake properly. Mondraker DUSTY R is equipped with Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, your safety is in good hands.
Sizes
This e-bike is available in 4 sizes. They vary from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, it won’t be difficult to find the right one for you.
