Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 700c -
Groupset Rival XPLR AXS, Rival AXS -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle X20 IX350Wh -
Drivetrain 1 × 12 Electronic -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Suspension Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Drivetrain
Rear Derailleur
SRAM Rival XPLR Etap AXS, 12s
Shift Levers
SRAM Rival Etap AXS 12s
Crank
SRAM Rival 1 GLS DUB Wide, S: 170mm, M: 172,5mm, L: 172,5mm, XL: 175mm., Rings: SRAM X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom Bracket
Mahle pressfit, sealed bearings, w/ torque sensor
Chain
SRAM Rival, 12s, Powerlock
Wheels
Front Hub
Mavic, 12x100mm, IS 6 bolts
Rear Hub
Mahle X20 Drive Unit, XDR freehub
Rims
Mavic Allroad Disc, UST, 22mm internal width, hookless, 28 spokes
Spokes
Mavic Steel double butted flat spokes
Tires
Front: Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall, Rear: Maxxis Rambler 700x40, tubeless ready, dual compound EXO protection, 60 TPI, folding bead, tan wall
Brakes
Brakes
Front: SRAM Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Rival Etap AXS 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Rival, contact point adjustment, tooled reach adjust, plastic levers
Cockpit
Stem
OnOff gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S: 70mm M: 70mm, L: 80mm, XL: 90mm
Handlebar
OnOff Barium gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm
Grips
Barium gravel dark grey
Headset
OnOff gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
FIZIK Terra Argo X7 150mm
Seatpost
OnOff Barium gravel microadjust diameter 27.2mm, length 400mm
Motor & Battery
Motor
Mahle X20 Drive Unit
Battery
Mahle X20 IX350Wh
Fit data

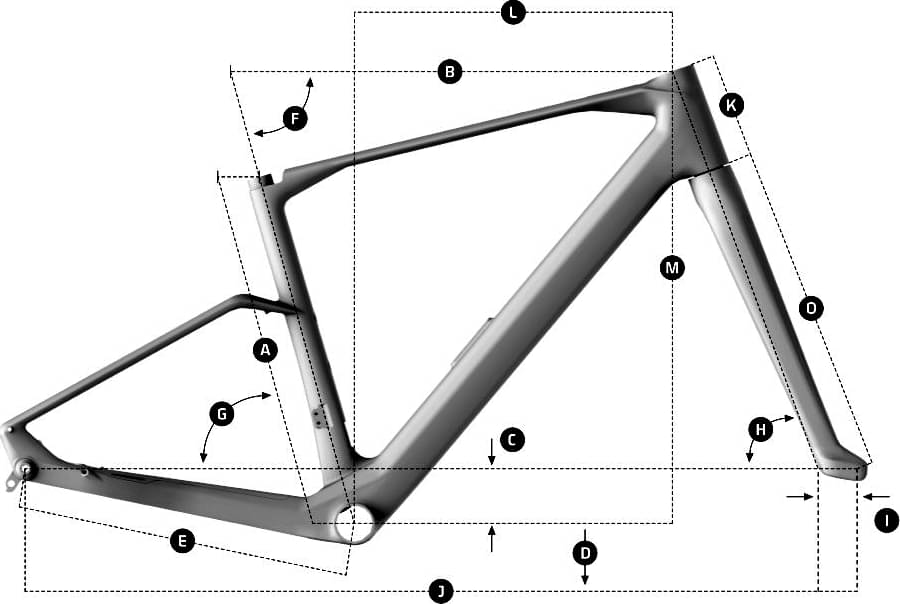

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.42 mm | 1.4 mm | 1.42 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 619 mm | 641 mm | 666 mm | 694 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 79 mm | 79 mm | 79 mm | 79 mm |
| Stack | 554 mm | 582 mm | 601 mm | 634 mm |
| Reach | 399 mm | 411 mm | 430 mm | 446 mm |
| Top Tube Length | 556 mm | 576 mm | 601 mm | 626 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 460 mm | 500 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 150 mm | 175 mm | 210 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1040 mm | 1062 mm | 1088 mm | 1116 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
DUSTY RR is part of the Mondraker E Dusty model. 5 e-bikes variations carry this model name so far. Check out the entire range from 2023 of this model, by clicking this link.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Gravel e-bikes average price
Our math shows that the average cost of a dependable Gravel e-bike is 3642$. However, this doesn’t mean that if you spend less money on a Gravel e-bike, you couldn’t get a decent one. As a general rule of thumb, you should always read reviews about the e-bike and its components before buying it to ensure you don’t pay too much.
Gravel e-bikes average weight
Gravel e-bikes weigh an average of 13.58 kg (29.94 lbs). It is a good advantage to have a lighter bike than the average. However, a heavier bike is more efficient on descents.
Weighing 13.1 kg (28.88 lbs), the DUSTY RR model is slightly lighter than average. To sum up, it’s 3.66% lighter than the average weight of Gravel e-bikes.
Internal Cable Routing
Another thing to mention, is the internal cable routing of this bike. In conclusion, this helps you too, keep the bike cables in mint condition, and also it looks better. No more cables, surrounding the bike.
Overview of components
Fork material
When it comes to the fork, this e-bike has a carbon one, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels
As for the wheels, Mondraker DUSTY RR 2023, has a 700c aluminum model. There is no doubt, that 700c wheels are very popular on all road bike models. However, while they give you great speed and control, these wheels are not so bump-friendly.
Brakes
When you want to stop the bike in time, the brakes are vital. The DUSTY RR has Hydraulic Disc brakes. Hydraulic disc brakes are perfect for mountain biking, road cycling, and commuting. To sum up, you can ride your bike with confidence.
Sizes
DUSTY RR comes in 4 sizes, that range from 158 cm – 199 cm (5.18 ft – 6.53 ft). In short, you can easily find one that suits you.
