Bike details
Overview
Key information split into simple groups.
Bike summary
-
Category -
Frame Carbon -
Wheels 700c -
Groupset Apex, Rival -
Suspension Rigid -
Motor MAHLE 55Nm hub-drive -
Battery Mahle X20 IX350Wh -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Dusty Stealth Air Carbon, pressfit 386 EVO bottom bracket, tapered head tube, HHG internal cable routing, integrated internal non-removable battery, 12x142mm rear axle, 1X or 2X drivetrain design, Flatmount brake compatible, integrated dropout speed sensor.
Suspension Fork
Steatlh Air Carbon tapered steerer tube, HHG, fllat mount integrated fork
Drivetrain
Rear Derailleur
SRAM Apex 1 11s
Shift Levers
SRAM Apex 11s, X-Actuation 1:1, single click
Crank
SRAM Rival 1 GLS Wide, S: 170mm, M/L: 172,5mm, XL: 175mm., Rings: SRAM X-Sync Eagle 40T direct mount, alloy, narrow-wide,
Bottom Bracket
Mahle pressfit, sealed bearings, w/ torque sensor
Chain
SRAM PC-1110, 11s, Powerlock
Wheels
Front Hub
Novatec D041, Boost 12x100mm, sealed bearings, IS 6 bolts
Rear Hub
Mahle X20 12x142mm, sealed bearings, IS 6 bolts
Rims
MDK-XG1, 23mm internal width, tubeless ready, 32 spokes
Spokes
CN round stainless steel
Tires
Front: Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall, Rear: Maxxis Re-fuse 700x40, tubeless ready, dual compound, MaxxShield EXO protection, 60 TPI, folding bead, light tan wall
Brakes
Brakes
Front: SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad, Rear: SRAM Apex 1, 2 piece caliper, Centerline 160mm IS 6 bolts one-piece rotor, steel-backed organic pad
Brake Levers
SRAM Apex, contact point adjustment, tooled reach adjust, aluminum levers
Cockpit
Stem
OnOff e-gravel 6061 T6 Alloy, 31.8mm barbore, rise: +/-7º, length: sizes S/M: 80mm, size L/XL: 90mm
Handlebar
OnOff Barium Gravel 18º bar flare. Width sizes S/M: 440mm, size L/XL: 460mm
Grips
Barium Gravel dark grey
Headset
OnOff e-gravel tapered for 1-1/8” to 1-1/2” head tube, ACB sealed bearings, top 41x30.2x7x45ºx45º, bottom 51.9x40x8x45ºx45º
Seat
Saddle
Selle Royal Prestige 139mm
Seatpost
OnOff Barium gravel carbon microadjust diameter 27.2mm, length 400mm
Motor & Battery
Motor
Mahle X20 Drive Unit
Battery
Mahle X20 IX350Wh
Fit data

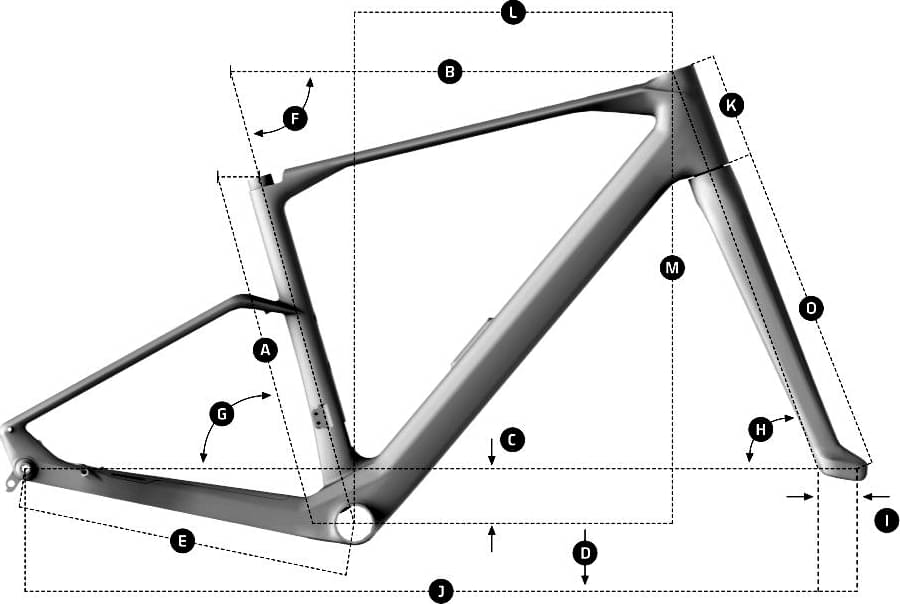

Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.39 mm | 1.42 mm | 1.4 mm | 1.42 mm |
| Bottom Bracket Height | 286 mm | 286 mm | 286 mm | 286 mm |
| Front Center | 619 mm | 641 mm | 666 mm | 694 mm |
| Rake | 45 mm | 45 mm | 45 mm | 45 mm |
| Trail | 77 mm | 77 mm | 77 mm | 77 mm |
| Stack | 554 mm | 582 mm | 601 mm | 634 mm |
| Reach | 399 mm | 411 mm | 430 mm | 446 mm |
| Top Tube Length | 556 mm | 576 mm | 601 mm | 626 mm |
| Seat Tube Angle | 74 ° | 74 ° | 74 ° | 74 ° |
| Seat Tube Length | 440 mm | 460 mm | 500 mm | 530 mm |
| Head Tube Angle | 70 ° | 70 ° | 70 ° | 70 ° |
| Head Tube Length | 125 mm | 150 mm | 175 mm | 210 mm |
| Chainstay Length | 431 mm | 431 mm | 431 mm | 431 mm |
| Wheelbase | 1040 mm | 1062 mm | 1088 mm | 1116 mm |
| Bottom Bracket Drop | 70 mm | 70 mm | 70 mm | 70 mm |
| Wheels | 700 | 700 | 700 | 700 |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
Model Overview
DUSTY SX R belongs to the Mondraker E Dusty model. Mondraker released 5 e-bikes variations of this model so far. You can easily view all of the Mondraker E Dusty e-bikes models from 2023, here.
Safety
Make sure you wear a helmet on every ride, and that your bike performs well. In short, this means checking the tires, brakes, and chain to make sure everything is in good working order.
Cyclocross e-bikes average price
If you want to purchase a solid Cyclocross e-bike, it is important to know that the average cost is 2571$. However, paying less money than this amount doesn’t mean that you couldn’t get a great Cyclocross e-bike. To make sure you don’t pay a higher amount than normal for your e-bike, always do some components analysis and read reviews.
Internal Cable Routing
Moreover, this bike comes with internal cable routing allowing you to keep the cables in a good condition. It also makes it look more professional.
DUSTY SX R components
Fork material
DUSTY SX R has a carbon fork, so, its weight is considerably lighter than one made out of steel. However, they cost a bit more than steel forks.
Wheels size
As for the wheels, Mondraker DUSTY SX R 2023, has a 700c aluminum model. These wheels are the most used kind for road bikes in general. However, these wheels don’t perform so well when passing over obstacles.
Brakes
Stopping the bike when needed, it’s essential for your safety. This e-bike has Hydraulic Disc brakes. These kinds of brakes are among the most popular models used on bikes. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
