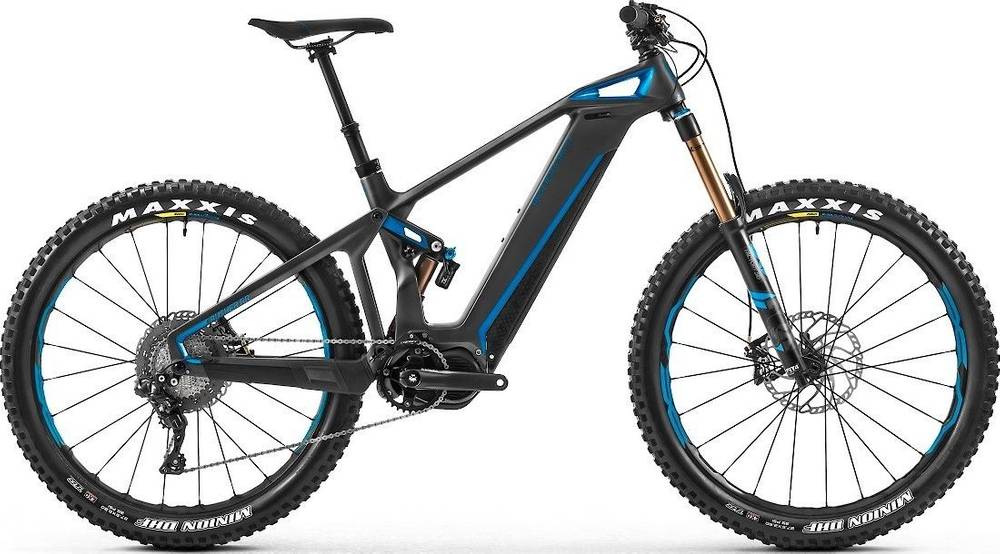

Mondraker e-Crusher Carbon RR+ 2018
2018 E-bike
Weight | 22.2 kg
E-bike
Bike details
Overview
Key information split into simple groups.
Bike summary
-
-
Frame Carbon -
Wheels 27.5" -
Travel Front 160mm -
Travel Rear 150mm -
Fork Fox Factory Float 36
-
Groupset XTR, Shimano -
Suspension Full -
Motor Shimano 250W 70Nm mid-drive -
Battery Shimano BT-E8020 integrated battery -
Drivetrain 1 × 11 -
Brakes Hydraulic Disc
Sizing
Recommended size guide.
SM
158cm - 171cm
MD
168cm - 180cm
LG
178cm - 189cm
XL
186cm - 199cm
Parts list
Components
Main components, grouped by system.
Bike components
Frame
Frame
Carbon Fiber
Suspension Fork
FOX 36 Float Evol Factory, Kashima, Boost, FIT
Rear Shock
FOX Float DPX2 LV EVOL Factory, Kashima, Trunnion top mount, 205mm x 62.5mm
Drivetrain
Rear Derailleur
Shimano XTR RD-M9000GS, Shadow Plus
Front Derailleur
N/A
Shift Levers
Shimano XTR SML9000R, Rapidfire Plus, 2 way release, 11-speed
Cassette
Shimano XT CS-M8000, 11-46 tooth, 11-speed
Crank
Shimano FC-E8050 hollowtech
Chain
Shimano CN-HG6011
Chain Guide
N/A
Pedals
None included
Wheels
Front Hub
Front: Mavic Boost 15mm x 110mm, sealed cartridge bearings, 6 bolt, Rear: Mavic Instant Drive 360 alloy, Boost 12mm x 148mm sealed cartridge bearings, 6 bolt
Rear Hub
Front: Mavic Boost 15mm x 110mm, sealed cartridge bearings, 6 bolt, Rear: Mavic Instant Drive 360 alloy, Boost 12mm x 148mm sealed cartridge bearings, 6 bolt
Rims
Mavic E XA Elite 27.5+, 40mm internal width, asymetric, hookless, ISM4D, 24 hole, tubeless ready
Spokes
Mavic stainless double butted (drive side)
Tires
Front: Maxxis Minion DHF 2.8", tubeless ready, Dual compound, EXO Protection, 60TPI, folding, Rear: High Roller 27 II 2.8", tubeless ready, Dual compound, EXO Protection, 60TPI, folding
Brakes
Brakes
Shimano Saint M820 with 203mm Ice Technology rotors, 4-piston caliper, RT86 2-piece 6 bolts rotor with ICE technology, resin pads with cooler
Brake Levers
Shimano Saint
Cockpit
Stem
Onoff Stoic FG, forged 6061 alloy, 30mm length, 35mm clamp
Handlebar
Onoff Stoic Carbon 0.5, 780mm width, 35mm diameter
Grips
Onoff Diamond Lock-on, 130mm
Headset
Onoff Saturn
Seat
Saddle
Fi'zi:k Gobi M5 VS K:ium
Seatpost
FOX Transfer Performance Elite, 100mm drop (S), 125mm drop (M), 150mm drop (L-XL)
Motor & Battery
Motor
Shimano e8000
Battery
Shimano BT-E8020 integrated battery
Fit data
Geometry
Numbers for sizing and ride feel.
| Size | SM | MD | LG | XL |
|---|---|---|---|---|
| Stack Reach Ratio | 1.38 mm | 1.31 mm | 1.28 mm | 1.26 mm |
| Bottom Bracket Height | 342 mm | 342 mm | 342 mm | 342 mm |
| Stack | 606 mm | 606 mm | 620 mm | 634 mm |
| Reach | 438 mm | 463 mm | 483 mm | 503 mm |
| Top Tube Length | 605 mm | 633 mm | 655 mm | 681 mm |
| Seat Tube Angle | 74.5 ° | 74.5 ° | 74.5 ° | 74.5 ° |
| Seat Tube Length | 380 mm | 420 mm | 470 mm | 500 mm |
| Head Tube Angle | 66.5 ° | 66.5 ° | 66.5 ° | 66.5 ° |
| Head Tube Length | 100 mm | 100 mm | 115 mm | 130 mm |
| Chainstay Length | 447 mm | 447 mm | 447 mm | 447 mm |
| Wheelbase | 1198 mm | 1223 mm | 1249 mm | 1278 mm |
| Bottom Bracket Drop | 13 mm | 13 mm | 13 mm | 13 mm |
| Wheels | 27" | 27" | 27" | 27" |
| Rider Min Height | 158 cm | 168 cm | 178 cm | 186 cm |
| Rider Max Height | 171 cm | 180 cm | 189 cm | 199 cm |
About this model
e-Crusher Carbon RR+ belongs to the Mondraker E E Crusher model. Mondraker released 2 e-bikes variations of this model so far. You can easily view all of the Mondraker E E Crusher e-bikes models from 2018, here.
Safety
Take safety seriously when you ride your bike, and always wear your helmet. Moreover, don’t ride on the sidewalk. This is actually against the law in some states and can be dangerous for both you and pedestrians.
Enduro e-bikes average price
Our math shows that the average cost of a dependable Enduro e-bike is 4785$. However, even if your budget is less than the average, you might still be able to get a top-quality Enduro e-bike. To sum up, when you purchase your e-bike, make sure to check if it has reviews, and also do some components research.
Average weight for Enduro e-bikes
The average weight for Enduro e-bikes is 23.42 kg (51.63 lbs). Having an easier bike than average will give you a great advantage on climbs. However, a heavier bike will gain more speed on descends.
Mondraker e-Crusher Carbon RR+ it’s weighing 22.2 kg (48.94 lbs). At this weight, is a bit lighter than average. In short, the average Enduro e-bike weight is 5.5% higher than this one.
Overview of components
Fork
Mondraker e-Crusher Carbon RR+ 2018 e-bike is equipped with the Fox Factory Float 36 fork, and has 160mm travel. Bike forks are great for shock absorption and provide you with a smooth ride. In conclusion, always look for a fork with decent travel when you buy a bike.
Rear Shock
Mondraker e-Crusher Carbon RR+ e-bike has the FOX Float DPX2 LV EVOL Factory model installed, and has a travel of 150mm. Rear shocks improve riding comfort and give you greater control over all terrains. In conclusion, to increase your riding experience, get a bike with a rear shock if possible.
Wheels size
When it comes to wheels, the e-Crusher Carbon RR+ e-bike is equipped with the 27.5″ aluminum model. These wheels will provide you with more control over the e-bike. However, the overall traction of 27.5″ wheels is lower than 29″ wheels.
Brakes
When you want to stop the bike in time, the brakes are vital. The e-Crusher Carbon RR+ has Hydraulic Disc brakes. Hydraulic disc brakes provide amazing stopping power, no matter what the terrain. To sum up, these are ideal for anyone.
Sizes
There are 4 sizes available for this model. Rider height can be anywhere between 158 cm – 199 cm (5.18 ft – 6.53 ft). In conclusion, you won’t have a problem finding one that suits you.
Dropper post
The Mondraker model is also equipped with a dropper post. A dropper post is a must-have these days if you’re riding anything remotely technical. The main benefit of a dropper post is increased safety while riding. As mentioned above, the lever system allows you to quickly move the saddle out of the way when approaching descents or trail obstacles.
